Comprehensive Material Coverage and Integrated Manufacturing Solutions by Womic Steel
1. EN 1092-1 Standard Overview and Engineering Significance
EN 1092-1 is the principal European standard governing steel flanges and flanged connections for piping systems. Unlike simplified dimensional standards, EN 1092-1 defines a complete engineering framework, including pressure-temperature ratings, material group classifications, dimensional tolerances, testing requirements, and marking rules.
The standard covers pressure classes from PN 2.5 up to PN 400, making it suitable for a wide range of operating conditions—from low-pressure utility pipelines to high-pressure energy and process systems. EN 1092-1 flanges are extensively applied in oil & gas, petrochemical plants, power stations, shipbuilding, offshore installations, water treatment facilities, and general industrial piping across Europe and global projects adopting EU norms.
As an experienced EN-standard flange manufacturer, Womic Steel does not merely supply components compliant with drawings. We focus on engineering reliability, material integrity, and project-oriented delivery, ensuring that every EN 1092-1 flange performs safely throughout its service life.
2. Full Material Coverage for Diverse Operating Conditions
Material selection is one of the most critical engineering decisions in flange design. EN 1092-1 categorizes materials according to temperature resistance, pressure capability, corrosion behavior, and weldability. Womic Steel manufactures EN 1092-1 flanges in a complete range of approved carbon steel, stainless steel, alloy steel, and low-temperature materials, ensuring suitability for all common pipeline media.
2.1 Carbon Steel and Pressure Vessel Steels
Carbon and pressure vessel steels are widely used for water, steam, air, oil, and general industrial services where cost-efficiency and weldability are key considerations.
Table 1: Common Carbon Steel Materials for EN 1092-1 Flanges
|
Material |
Standard |
Temp. Range (°C) |
Characteristics |
Typical Applications |
| P235GH | EN 10028-2 | −10 to +300 | Excellent weldability, stable strength | Water, air, steam |
| P265GH | EN 10028-2 | −10 to +300 | Higher strength for pressure duty | Process pipelines |
| 16Mo3 | EN 10028-2 | −10 to +500 | Improved creep resistance | Boilers, heat exchangers |
| S235JR | EN 10025-2 | −20 to +300 | Structural-grade steel | Utility pipelines |
These materials are typically normalized after forging to refine grain structure and ensure consistent mechanical properties.
2.2 Stainless Steel Materials
Stainless steel EN 1092-1 flanges are selected where corrosion resistance, cleanliness, or temperature stability is required. Austenitic grades dominate this category due to their excellent ductility and resistance to general corrosion.
Table 2: Austenitic Stainless Steel Grades
|
Material No. |
Grade |
Standard |
Temp. Range (°C) |
Application |
| 1.4301 | 304 | EN 10088-2 | −196 to +400 | Food, pharmaceuticals |
| 1.4401 | 316 | EN 10088-2 | −196 to +400 | Marine, chemical media |
| 1.4541 | 321 | EN 10088-2 | −196 to +400 | High-temperature service |
| 1.4571 | 316Ti | EN 10088-2 | −196 to +400 | Refining, petrochemical |
All stainless steel flanges are supplied in solution-annealed condition to eliminate sensitization risks and ensure corrosion resistance.
2.3 Alloy Steel and Low-Temperature Materials
For elevated temperature or cryogenic applications, EN 1092-1 permits alloy steels and low-temperature steels with enhanced toughness and stability.
Table 3: Alloy and Cryogenic Materials
|
Material |
Standard |
Temperature Range (°C) |
Engineering Advantage |
| 13CrMo4-5 | EN 10028-2 | −10 to +550 | Heat & hydrogen resistance |
| 10CrMo9-10 | EN 10028-2 | −10 to +580 | High creep strength |
| 11MnNi5-3 | EN 10028-4 | −50 to +300 | Excellent low-temp toughness |
| X7Ni9 | EN 10028-4 | −196 to +300 | Cryogenic service |
2.4 Duplex, Nickel Alloy and Special Materials
For corrosive, offshore, or aggressive environments, Womic Steel provides custom-manufactured EN 1092-1 flanges in advanced materials such as:
● Duplex stainless steel (1.4462 / S31803)
● Super duplex stainless steel (1.4501 / S32750)
● Nickel alloys (Alloy 600 / 625)
● Titanium Grades 2 and 5
These materials require precise forging control and specialized heat treatment to achieve the correct microstructure and performance.
3. Manufacturing Process – Engineering-Controlled from Start to Finish
EN 1092-1 flanges supplied by Womic Steel are produced under fully controlled forging and machining processes, ensuring dimensional accuracy and mechanical integrity.
3.1 Raw Material Control and Traceability
All raw materials are sourced exclusively from EN-approved steel mills. Each heat is supplied with EN 10204 3.1 certification and undergoes incoming inspection, including chemical analysis and ultrasonic testing. Heat numbers are retained throughout the entire production cycle, guaranteeing full traceability.
3.2 Forging, Machining and Heat Treatment
Forging is essential for EN 1092-1 flanges above PN25, as it improves grain flow and pressure resistance. Controlled heating, sufficient forging ratio (≥3:1), and precision dies ensure smooth neck transitions and uniform structure.

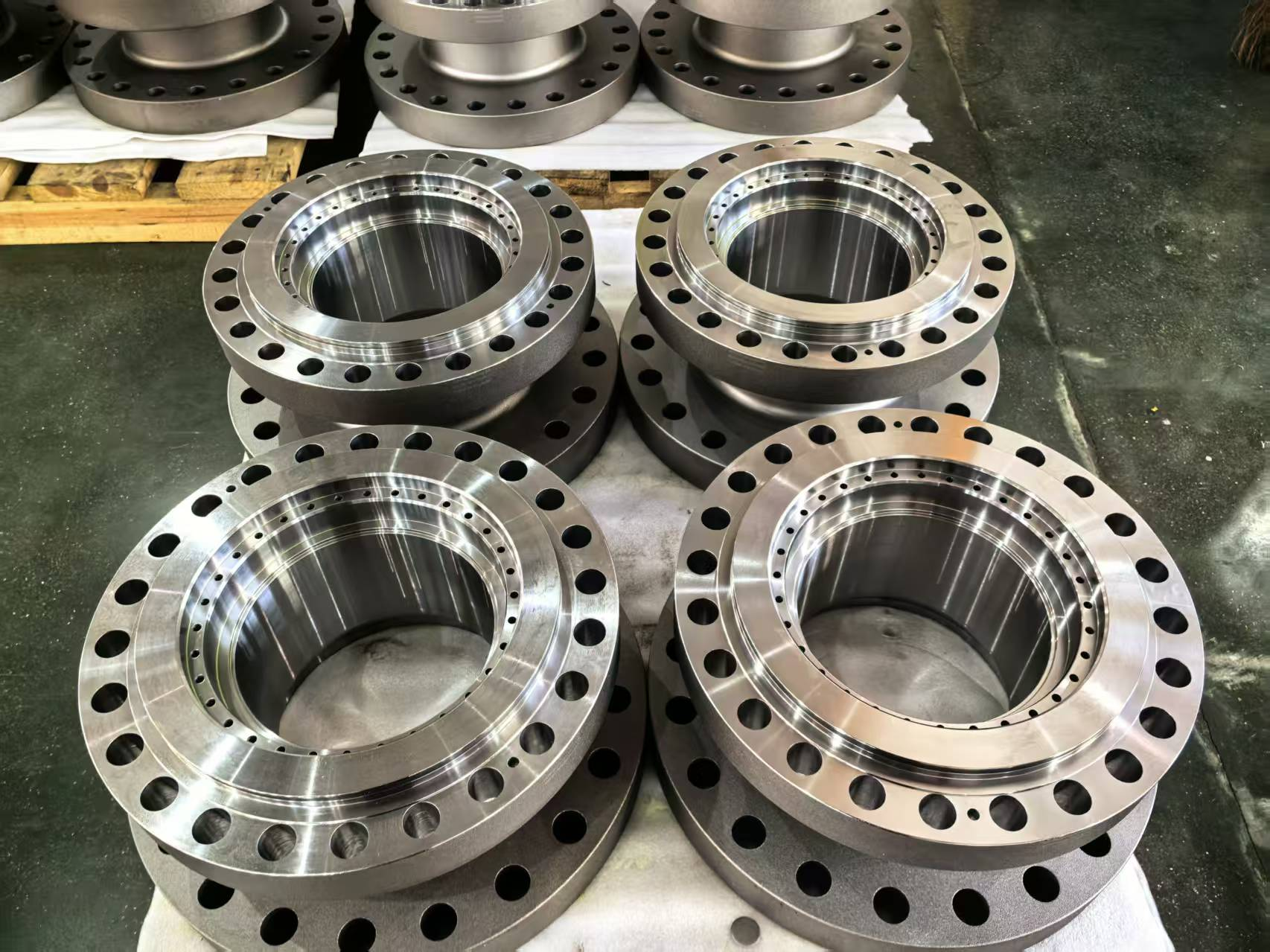

Heat treatment is applied according to material type to relieve stress and optimize performance, followed by CNC machining to achieve precise sealing surfaces and bolt-hole alignment.
4. Dimensional Accuracy and Mechanical Performance
EN 1092-1 flanges must maintain tight dimensional tolerances to ensure interchangeability and leak-free sealing in assembled piping systems.
4.1 Dimensional Control
● Outside diameter tolerance: ±1 mm (DN ≤ 300), ±2 mm (DN > 300)
● Thickness tolerance: +3 / −1 mm (PN6–PN25)
● Bolt hole position tolerance: ±0.5 mm
● Sealing face flatness: ≤0.05 mm
4.2 Mechanical Property Requirements
Table 4: Typical Mechanical Properties
|
Material |
Yield (MPa) |
Tensile (MPa) |
Elongation (%) |
Impact |
| P235GH | ≥235 | 360–500 | ≥25 | ≥27 J @ +20°C |
| 16Mo3 | ≥300 | 500–650 | ≥22 | ≥40 J @ +20°C |
| 1.4401 | ≥200 | 500–700 | ≥40 | ≥100 J @ −196°C |
| 13CrMo4-5 | ≥310 | 480–630 | ≥21 | ≥40 J @ +20°C |
5. Inspection, NDT and Certification System
Quality verification is an integral part of EN 1092-1 compliance. Womic Steel performs:
● 100% UT for forged flanges
● MT or PT on sealing surfaces
● Dimensional inspection per batch
● EN 10204 3.1 and optional 3.2 certification
● Third-party inspection by TÜV, BV, DNV, SGS
● PED 2014/68/EU and CE conformity
6. Extended Manufacturing Services – More Than Standard Flanges
Beyond standard flange supply, Womic Steel offers value-added fabrication services to reduce on-site workload and installation risk.
6.1 Machining and Customization
● Special bolt patterns
● Precision drilling and tapping
● Facing (RF, FF, RTJ, TG)
● Counterboring and boring
6.2 Prefabrication and Spool Supply
We manufacture flange-based prefabricated pipe spools, including welded assemblies combining pipes, fittings, and flanges. These preassembled units improve installation efficiency, reduce field welding, and enhance overall project quality control.
7. Anti-Corrosion Protection, Packaging and Global Logistics

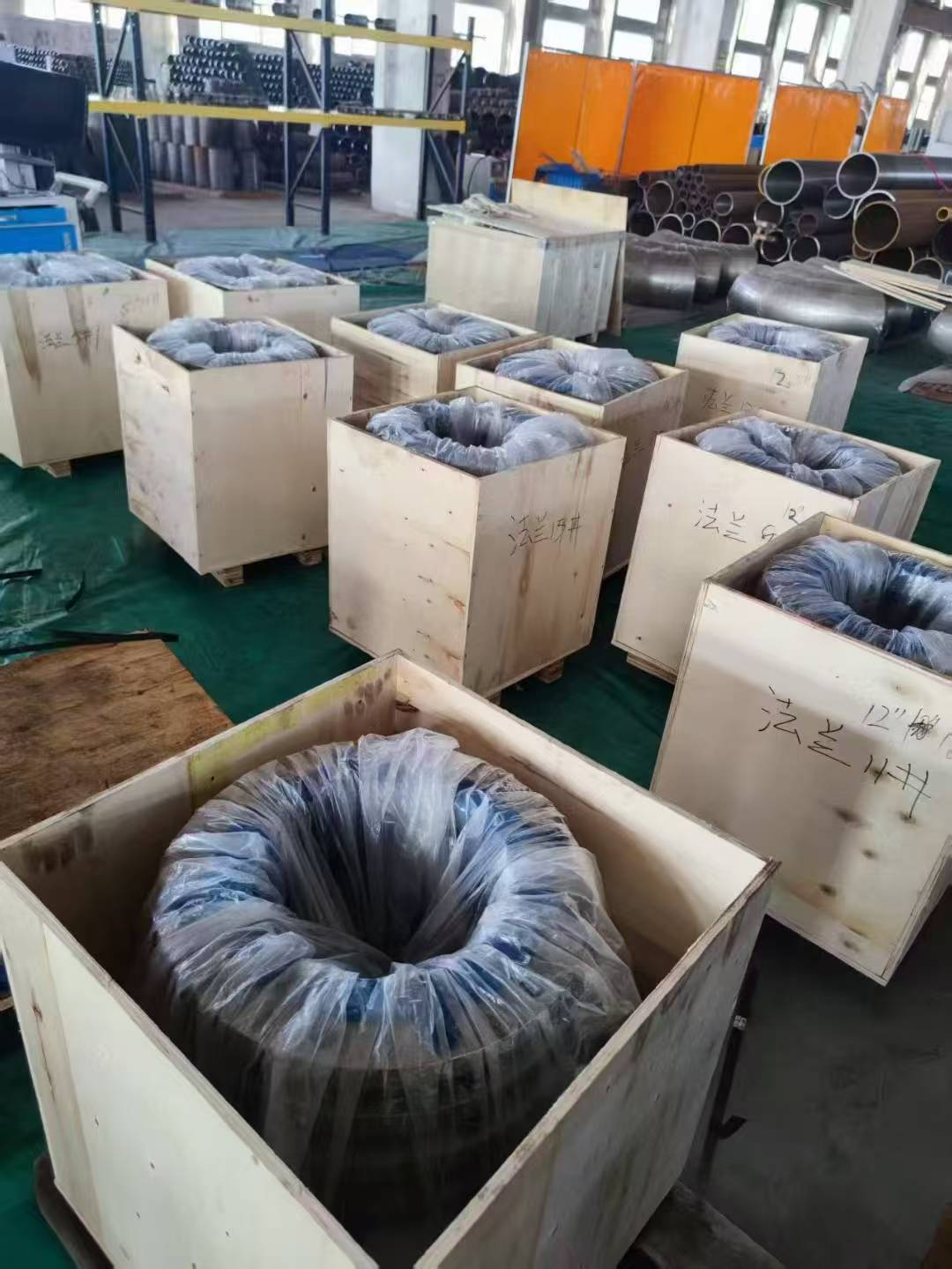

Surface protection is tailored to project conditions, including industrial painting and corrosion protection solutions. Packaging uses VCI anti-rust systems, seaworthy wooden cases or steel pallets, with clear product marking for identification and traceability.
Leveraging our logistics experience, Womic Steel provides optimized sea, rail, and multimodal transport solutions to ensure safe and timely global delivery.
8. Why Choose Womic Steel for EN 1092-1 Flanges
Choosing Womic Steel means selecting a manufacturer capable of engineering-level execution, not just product supply. Our strengths include:
● Complete EN 1092-1 material coverage
● Strong forging and CNC machining capability
● Prefabrication and spool fabrication services
● Full certification and traceability system
● No minimum order quantity – even one piece accepted
● Proven global project experience
We pride ourselves on our customization services, fast production cycles, and global delivery network, ensuring your specific needs are met with precision and excellence.
