Womic Steel – Your Reliable Manufacturer of SA213-T9 Seamless Pipe

1. Product Overview – SA213-T9 Seamless Pipe

SA213-T9 seamless pipe is an alloy steel tube used mainly in heat exchangers, boilers, and pressure vessels. Its chemical composition ensures excellent resistance to high temperature and pressure, making it ideal for use in thermal power plants, oil refineries, petrochemical plants, and

pressure piping systems.

Chemical Composition (SA213-T9):

Carbon (C): 0.15 max

Manganese (Mn): 0.30–0.60

Phosphorus (P): 0.025 max

Sulfur (S): 0.025 max

Silicon (Si): 0.25–1.00

Chromium (Cr): 8.00–10.00

Molybdenum (Mo): 0.90–1.10



Mechanical Properties:

Tensile Strength: ≥ 415 MPa

Yield Strength: ≥ 205 MPa

Elongation: ≥ 30%





Hardness: ≤ 179 HBW (annealed)





2. Production Range & Dimensions

Womic Steel can produce SA213-T9 seamless pipes in a wide range of sizes to suit your project requirements:

Outside Diameter: 10.3mm – 914mm (1/4” – 36”)

Wall Thickness: 1.2mm – 60mm

Length: Up to 12 meters or customized

3. Manufacturing Process

Our production process ensures high dimensional accuracy and metallurgical consistency:

Raw Material Selection: Only certified alloy steel billets from top mills are used.

Hot Rolling or Cold Drawing: Precision forming to achieve required OD & WT.

Heat Treatment: Normalizing, annealing, or tempering as per SA213-T9 standards.

Nondestructive Testing: Eddy current, ultrasonic, and hydrostatic tests.

Surface Treatment: Oiled, black painted, shot blasted, or galvanized finishes.







4. Inspection & Testing

Womic Steel strictly adheres to ASTM / ASME standards and client-specific requirements with comprehensive testing including:

Hydrostatic Pressure Test

Ultrasonic Examination

Hardness Test (HBW)

Flattening and Flaring Tests

Chemical & Mechanical Analysis

Grain Size Inspection

Microstructure Examination

All tests are conducted under the supervision of qualified engineers and third-party inspectors when required.



5. Certification & Compliance

Our SA213-T9 seamless pipes are approved and certified for use in pressure vessels and critical applications. Certifications include:

ASME / ASTM Compliance

PED / CE Certificate

ISO 9001, ISO 14001, ISO 45001

TUV, BV, SGS Third-party Inspections



6. Processing & Custom Services

Womic Steel offers various value-added services to meet specific customer requirements:

Cold and hot bending

Threading and grooving

Welding preparation (beveling)

Precision cutting and end-finishing

Surface passivation and oiling

These services are performed in-house to ensure accuracy, cost-efficiency, and shorter lead times.

7. Packaging & Transportation

All SA213-T9 seamless pipes are packed securely to ensure damage-free delivery:

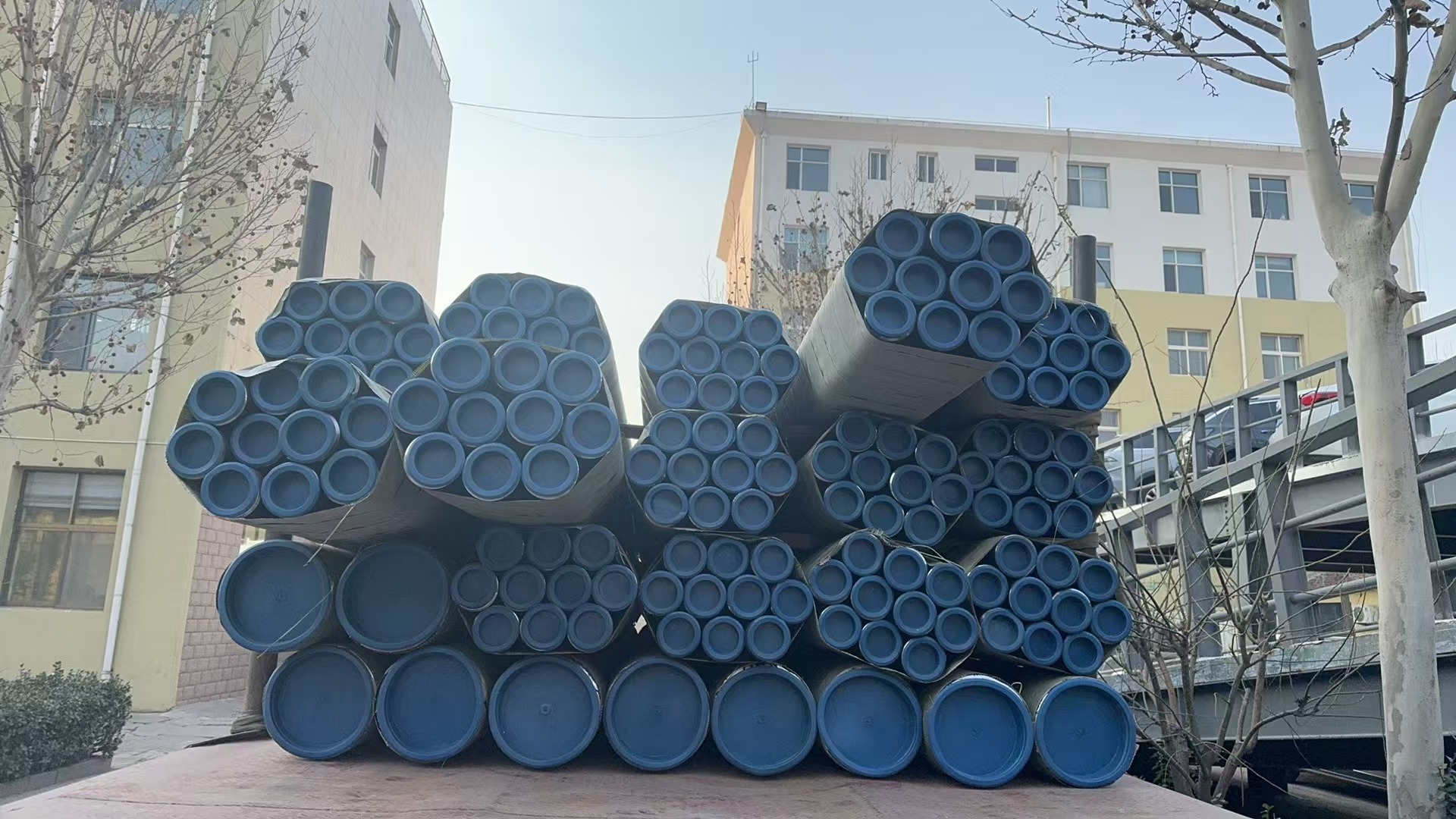

Packaging Options: Steel frame bundles, plastic caps, wooden boxes, or seaworthy wrapping

Markings: Standardized stencil or paint marking per SA213

Shipping: We collaborate directly with top shipping lines and forwarders, ensuring fast and competitive freight rates worldwide.

Thanks to our in-house logistics team and strategic stock near major ports, we offer fast delivery and smooth export clearance.



8. Delivery Time & Production Capacity

With robust production capabilities, Womic Steel can deliver standard SA213-T9 seamless pipe orders within 15–30 days. Our facility is equipped to produce over 25,000 tons per year, backed by:

24/7 manufacturing shifts

Reliable raw material supply contracts

Automated line production

Strong inventory of hot-rolled and annealed tubes
