PH2800 XPC Electric Shovel Parts Track Shoe

Short Description:

All crawler track and undercarriage components, including PH2800 XPC Track Shoes, can be fully OEM-customized according to customer drawings and technical requirements. Production strictly follows approved designs, metallurgy specifications, and heat-treatment procedures to ensure optimal wear resistance and long service life.


Product Specifications

Product Detail

Product Tags

Crawler Track Products

PH2800 XPC Track Shoes, Track Pads, Track Links, Track Frames, Track Rollers, Carrier Rollers, Idlers, Sprockets, Drive Tumbler Assemblies, Track Bushings & Pins, Bolt-on and Cast Manganese Pads, Mining Shovel Undercarriage Parts, Excavator Track Assemblies, Bulldozer Track Groups, Heavy Mining Crawler Assemblies, and OEM undercarriage solutions for electric rope shovels and hydraulic excavators.

Manufacturing Process

Components are produced via precision casting, closed-die forging, quenching & tempering, induction hardening, and CNC machining to guarantee high toughness, impact strength, and superior wear resistance for PH2800 XPC Track Shoes and other undercarriage parts.

Material Range

High-manganese steel ZGMn13, ZGMn13Mo1, ZGMn13Mo2, Alloy Steel 35CrMo, 42CrMo, 40CrNi2Mo, 30CrMo, 40Cr, 20CrMnTi, 18CrNiMo7-6, Boron Alloy Steel, 4140, 4340, and customized metallurgical grades for extreme wear applications.

Mechanical Advantages

High impact resistance for rock-heavy mining conditions, deep case hardening for longer track shoe life, superior tensile strength, improved fatigue resistance, and excellent wear stability in oil sands, hard-rock, open-pit mining, and high-load PH2800 XPC undercarriage systems.

Premium PH2800 XPC Track Shoe Manufacturing – Womic Steel’s Full-Scope Production for Electric Shovels

As global mining operations demand increasingly durable undercarriage solutions, Womic Steel stands out as a leading supplier of PH2800 XPC Track Shoes, crawler components, and complete wear-part packages for large electric shovels. With extensive casting, forging, machining, and assembly capabilities, Womic Steel provides high-strength components engineered for extreme mine environments in Russia, Australia, Chile, Indonesia, and other major mining regions.

Our production integrates advanced heavy-equipment technology, precision tooling, and strict international certifications, ensuring that every PH2800 XPC Track Shoe delivers exceptional wear resistance, structural integrity, and long service life.

1. Advanced Production Facilities Supporting Heavy Mining Components

Womic Steel collaborates with large-scale heavy-equipment manufacturing bases equipped with world-class machining and casting technology. These facilities support the mass production of components for PH2800 and PH4100 series electric shovels, bulldozers, and mining trucks.

1.1 Large-Scale Manufacturing Plants

• The production system includes:

• Heavy Equipment Manufacturing Plant

• Large Equipment Manufacturing Plant

• Power Rolling Manufacturing Plant

• Nuclear Power Manufacturing Plant

• Medium-Sized Equipment Manufacturing Plant

• Metal Structure Fabrication Plant

With over 1,800 skilled employees, the manufacturing bases operate six specialized plants that support complete machining, welding, casting, forging, rolling, surface engineering, and assembly production.

1.2 High-Precision Machining Equipment

The machining centers include more than 500 sets of advanced machines, such as:

5-axis linkage 6×18m CNC Gantry Milling Machines

• Heavy-duty horizontal and vertical machining centers

• High-precision boring mills

• CNC lathes for large rotary components

• Heat-treatment and quenching systems

• Automated welding stations

• Spray-welding and surfacing systems for wear-resistant overlays

This complete equipment portfolio ensures dimensional accuracy and excellent surface finish for heavy mining parts, including PH2800 XPC Track Shoes, drive tumblers, rollers, idlers, and crawler frames.

Womic Steel’s PH2800 XPC Track Shoe Production Capability

1. Specialized Casting and Forging Lines

Track shoes for PH2800 XPC electric shovels require superior impact toughness and abrasion resistance. Womic Steel uses the following casting processes depending on the specific part:

1.Resin Sand Mold Casting – ideal for large, complex track shoes

2.Investment Casting (Lost Wax) – for high-precision wear components

3.Centrifugal Casting – for steel and bronze bushings

4.Precision Forging – for highly stressed crawler components

Common materials used:

• High manganese steel (Mn13, Mn18, Mn22)

• Alloy steel & heat-resistant steel

• Wear-resistant steel

• Ductile iron and grey iron

• Brass, bronze, and copper alloys

2. Tooling, Patterns and Drawings

Womic Steel maintains:

• A complete library of PH2800 XPC Track Shoe drawings

• Existing track shoe molds and patterns supporting fast production

• CAD/CAM design capability to modify or customize shapes

• Reverse engineering ability based on worn samples

This allows rapid prototyping, reduced lead times, and guaranteed dimensional accuracy.

Complete Undercarriage Package for PH2800 XPC Electric Shovels

Besides PH2800 XPC Track Shoes, Womic Steel offers a full range of shovel undercarriage components:

1.Drive Tumblers (Drive Sprockets)

2.Track Rollers (Support Rollers)

3.Idler Wheels

4.Crawler Links & Pins

5.Bushings & Wear Plates

6.Final Drive Housing & Structural Parts

All components are engineered to work as a matched system, ensuring synchronized wear life and maximum uptime for mining operations.

Complete Undercarriage Package for PH2800 XPC Electric Shovels

Applications in Major Global Mines

Our PH series crawler components operate in:

• Russia – Siberian coal and iron ore mines

• Australia – Pilbara iron ore, Bowen Basin coal

• Chile – Copper mines including CODELCO operations

• Indonesia – Thermal coal and nickel mines

• South Africa, Peru, Mongolia – expanding supply network

Womic Steel’s electric-shovel crawler solutions are widely used in:

• Hard rock copper and gold mines

• Iron ore operations

• Surface coal mining

• Oil sands

• Quarry and aggregate production

Repeated use in harsh environments has proven the durability, stability, and superior performance of our PH2800 XPC Track Shoe assemblies.

Inspection, Testing, and Quality Assurance

To guarantee performance and reliability, every PH2800 XPC Track Shoe is tested using certified inspection systems, including:

1.Chemical Composition Testing (spectrometer)

2.Mechanical Properties Testing (tensile, yield, elongation, impact)

3.Hardness Testing (HBW)

4.Ultrasonic Testing (UT)

5.Magnetic Particle Inspection (MPI)

6.Dimensional Verification with 3D Measuring Tools

7.Heat Treatment Curve Monitoring

8.Surface Coating Thickness Checks

Certifications include:

• ISO 9001:2008

• ABS, DNV, BV classification approvals

•Full material traceability and heat-number marking

Export Packaging, Logistics and Delivery Advantages

Womic Steel provides international-standard packaging for heavy mining components:

• Steel pallets and wooden crates

• Anti-rust oil coating

• Heavy-duty strapping

• Shock-proof inner blocks

• Containerized or break-bulk shipping options

Shipping Advantages

• Manufacturing bases located near major ports

• Direct barge access to deep-sea vessels

• Long-term cooperation with shipping lines

• Competitive freight rates

• Professional reinforcement for heavy cargo

Delivery Time

Because molds, drawings, and patterns are already available for PH2800 XPC Track Shoes:

• Track Shoes: 50–70days

• Complete Undercarriage Set: 60–90 days

• Emergency orders supported

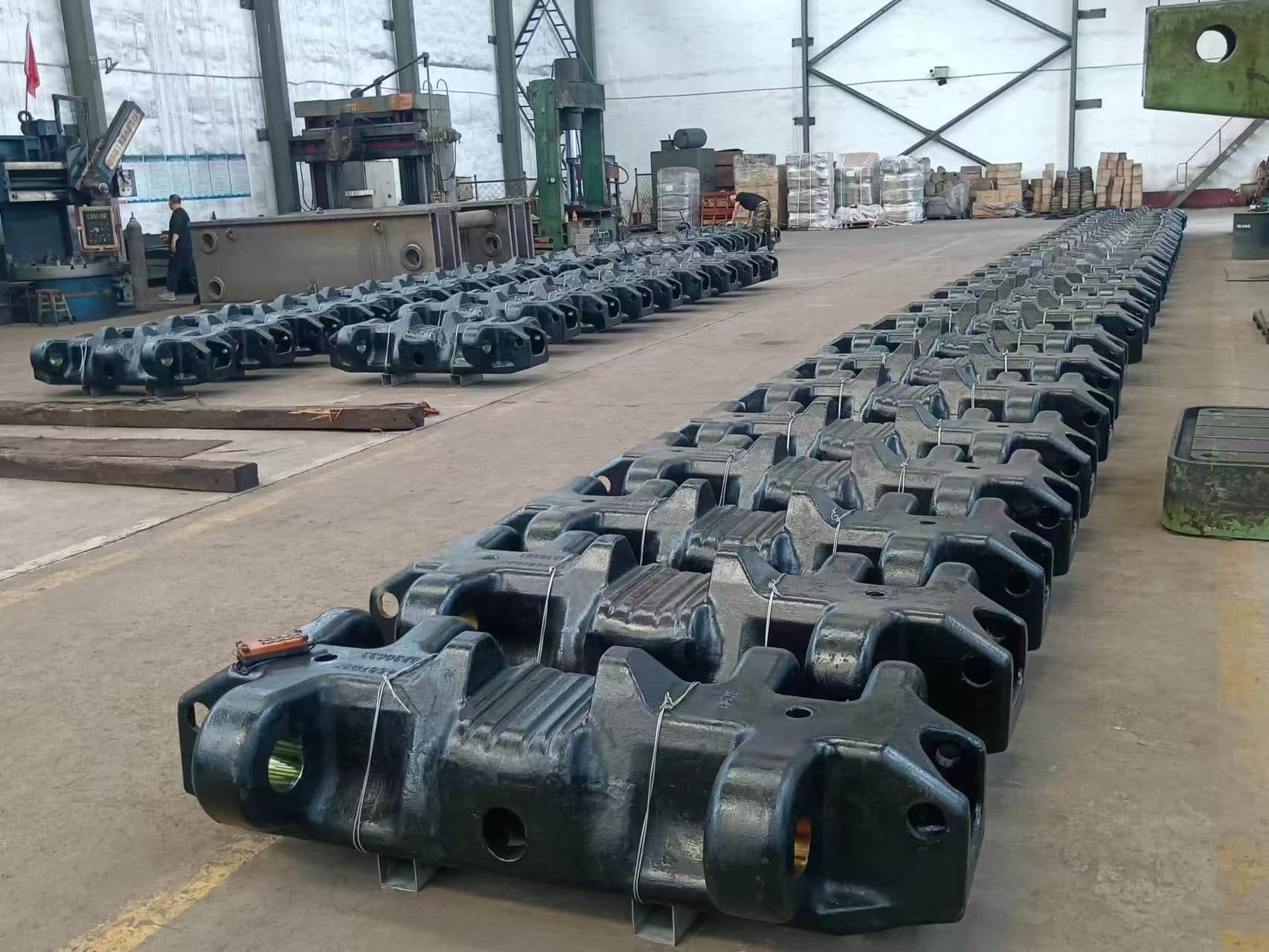

PH2800 XPC Track Shoes

Why Choose Womic Steel for PH2800 XPC Track Shoe Manufacturing

1.Full Manufacturing Integration – casting, forging, machining, heat treatment, and assembly under one system

2.Existing Tooling – faster delivery and lower cost

3.Strong Technical Team – design, metallurgy, quality management

4.High-End Equipment – 5-axis CNC, heavy rolling lines, and precision foundry systems

5.Global Mining Experience – supplied to major mines worldwide

6.Complete Product Range – track shoes, rollers, idlers, tumblers, and structural parts

7.Strict Quality Control – certified testing and full traceability

8.Reliable Export Logistics – secure packaging and competitive transport costs

Womic Steel is committed to becoming your trusted supplier of PH2800 XPC Track Shoes and full electric-shovel undercarriage systems, offering unmatched durability, precision, and service for mining operations worldwide.

We pride ourselves on our customization services, fast production cycles, and global delivery network, ensuring your specific needs are met with precision and excellence.
