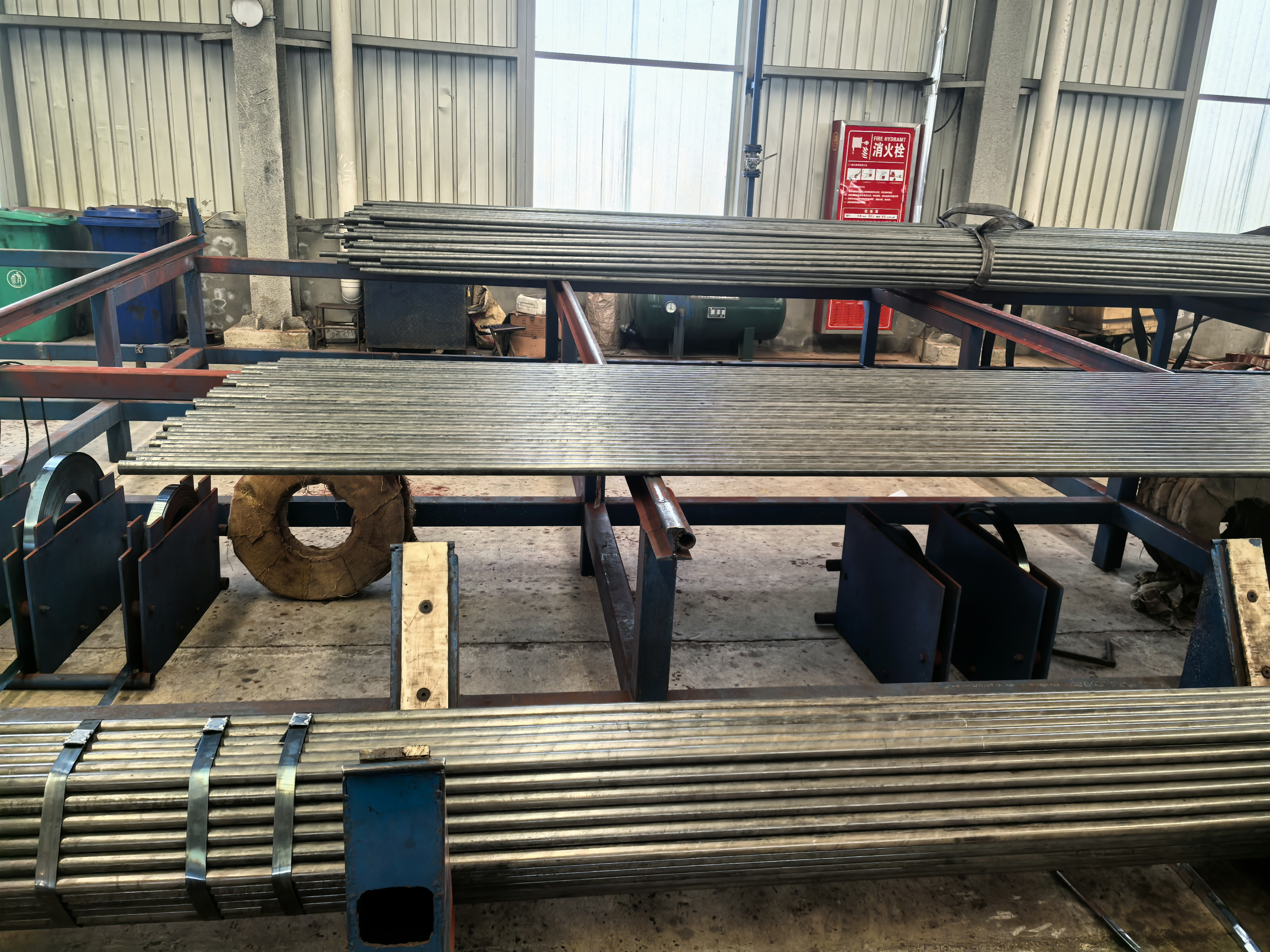

1 What Are Cold Drawn Precision Tubes?

Cold drawn precision tubes are seamless steel tubes produced through cold drawing processes, which significantly improve the dimensional accuracy, surface finish, and mechanical properties of the tubes.

Compared with conventional hot rolled pipes, precision cold drawn tubes provide:

l Higher dimensional accuracy

l Lower ovality

l Better surface quality

l Improved mechanical strength

These advantages make cold drawn tubes ideal for high precision mechanical components.



2 Cold Drawn Tube Manufacturing Process

The production of cold drawn precision tubes involves several controlled manufacturing steps.

Step 1 Steel Billet Preparation

High-quality steel billets are selected and prepared for seamless pipe production.

Step 2 Hot Rolling or Piercing

The billet is pierced to form a hollow seamless tube.

Step 3 Pickling and Surface Cleaning

Surface oxides are removed to prepare the tube for cold drawing.

Step 4 Cold Drawing Process

The tube is drawn through a die to reduce diameter and improve dimensional accuracy.

Step 5 Heat Treatment

Heat treatment improves ductility and mechanical properties.

Step 6 Straightening and Finishing

Final processing ensures precise OD tolerance and straightness.

Womic Steel uses advanced cold drawing production lines to ensure excellent dimensional precision and stable product quality.



---



3 Advantages of Cold Drawn Precision Tubes

Cold drawing significantly improves tube quality compared with hot rolled pipes.

Feature	Cold Drawn Precision Tube	Hot Rolled Tube
Dimensional Accuracy	High	Moderate
Surface Finish	Smooth	Rough
Ovality	Low	Higher
Mechanical Properties	Improved	Standard
Application	Precision equipment	General piping

Because of these advantages, cold drawn tubes are widely used in precision engineering industries.



4 Common Standards for Cold Drawn Precision TubesCold drawn tubes are manufactured according to several international standards.

Standard	Grade	Application
EN10305-1	E355	Precision mechanical tubes
DIN2391	ST52 / E355	Hydraulic cylinder tubes
ASTM A106	Grade B	Mechanical piping
ASTM A179	Carbon steel	Heat exchanger tubes
EN10216	P235GH	Pressure tubes

Womic Steel produces cold drawn precision tubes according to ASTM, DIN, and EN standards, ensuring compatibility with global industrial equipment.



5 Materials Used in Precision Steel Tubes

Cold drawn tubes can be produced using various steel materials depending on application requirements.

Carbon Steel

Grade	Application
E355	Mechanical components
ST52	Hydraulic systems
ASTM A106 B	Industrial piping

Alloy Steel

Grade	Application
4130	Aerospace components
4140	Mechanical shafts
42CrMo	Heavy machinery

Stainless Steel

Grade	Application
304	Food processing equipment
316L	Chemical plants
321	High temperature equipment



---



6 Precision Control and Dimensional Tolerance

Cold drawn tubes provide extremely precise dimensional control.

Typical tolerances include:

Parameter	Control Value
OD tolerance	±0.02 – ±0.05 mm
Wall thickness	±5%
Straightness	≤1/1000
Ovality	≤50% of OD tolerance

These tight tolerances are critical for hydraulic cylinders, automotive components, and conveyor rollers.

Womic Steel specializes in producing precision tubes with excellent OD control and low ovality, ensuring smooth assembly in mechanical equipment.



7 Industrial Applications of Precision Tubes

Cold drawn precision tubes are widely used in various industries.

Automotive Industry

Used in:

l Shock absorber tubes

l Steering components

l Drive shafts



Hydraulic Systems

Precision tubes are essential for:

l Hydraulic cylinders

l Oil pipelines

l Pressure systems

Mechanical Engineering

Used for:

l Machine structures

l Bearings and shafts

l Industrial equipment

Conveyor Roller Manufacturing

Precision tubes with low ovality and accurate OD are critical for producing high-performance conveyor rollers.

8 Conveyor Roller Precision Tubes

In conveyor systems, precision tubes are used to manufacture idler rollers and conveyor rollers.

Key requirements include:

l Accurate outer diameter

l Low ovality

l Smooth surface finish

l Stable mechanical properties

Cold drawn precision tubes ensure smooth roller rotation and long service life.

Womic Steel produces precision conveyor roller tubes with strict OD tolerance and ovality control, meeting the requirements of high-performance conveyor systems.



9 Quality Inspection and Testing

Precision tube manufacturing requires strict inspection procedures.

Typical tests include:

l Chemical composition analysis

l Mechanical property testing

l Ultrasonic testing

l Eddy current testing

l Dimensional inspection



These quality control processes ensure every tube meets international standards and customer requirements.



10 Choosing a Reliable Precision Tube Manufacturer

When selecting a precision tube supplier, procurement teams should evaluate:

l Manufacturing capability

l Dimensional precision

l Quality inspection system

l Material standards compliance

l Delivery reliability



Working with a reliable manufacturer ensures consistent product quality and long-term equipment performance.



Womic Steel – Cold Drawn Precision Tube Manufacturer

Womic Steel is a professional manufacturer specializing in cold drawn precision tubes, seamless steel pipes, boiler tubes, heat exchanger tubes, and alloy steel pipes for global industrial projects.

With advanced production equipment and strict quality control systems, Womic Steel supplies high-performance tubing solutions that comply with major international standards including ASTM A179, ASTM A192, ASTM A213, EN10216 P235GH, and precision tube standards such as EN10305 and DIN2391.

As an experienced precision tube manufacturer, Womic Steel provides a wide range of products including cold drawn precision tubes, seamless mechanical tubes, hydraulic cylinder tubes, conveyor roller tubes, and custom fabricated U bend tubes.

These products are widely used in automotive manufacturing, hydraulic systems, industrial machinery, power plants, and conveyor systems.

Womic Steel ensures excellent OD tolerance, low ovality, stable mechanical properties, and reliable delivery for every project.
