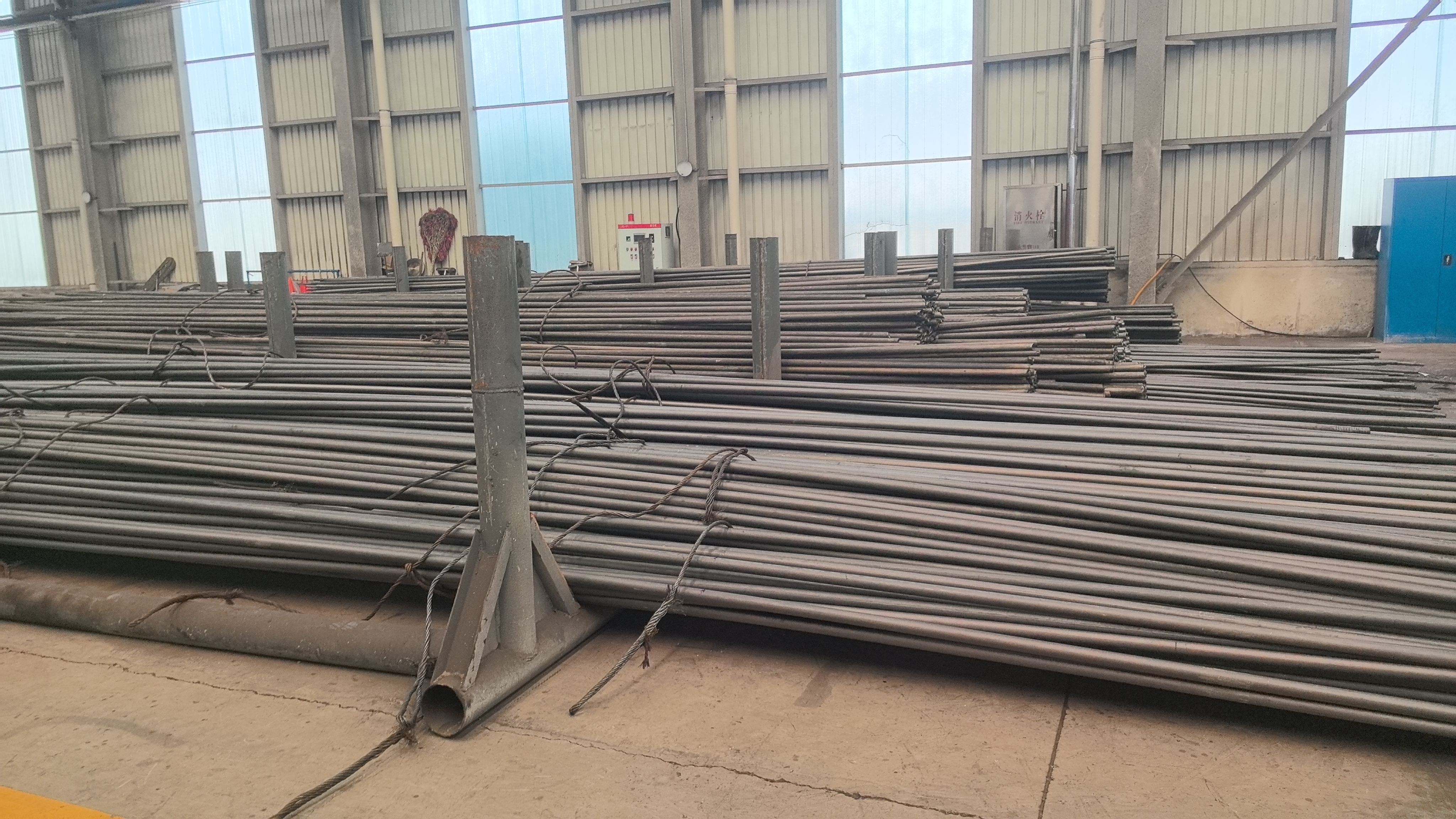

Cold drawn seamless tubes are widely used in precision engineering, hydraulic systems, automotive components, and industrial equipment manufacturing. Compared with standard hot rolled tubes, cold drawn tubes offer significantly improved dimensional accuracy, smoother surface finish, and enhanced mechanical properties. Because of these advantages, cold drawn seamless tubes have become essential materials in industries requiring high precision and reliable mechanical performance.
Precision tube dimensions are one of the most important factors engineers consider when selecting tubing for mechanical or hydraulic systems. Accurate outside diameter, wall thickness, and tolerance control ensure proper assembly, stable pressure performance, and efficient mechanical operation.
Womic Steel is a professional manufacturer of cold drawn seamless tubes and precision steel tubes, supplying high precision tubing products for global industries including hydraulic equipment manufacturing, automotive engineering, mechanical machinery production, and industrial automation systems.
Cold drawn seamless tubes are typically produced from hot rolled mother tubes through a controlled cold drawing process. During this process, the tube is pulled through a hardened die at room temperature to reduce its outside diameter and wall thickness while improving dimensional accuracy.
This process also enhances the mechanical strength of the material through cold working. The resulting tubes have tighter tolerances and smoother surfaces compared with standard hot rolled tubes.
Cold drawn tubes are available in a wide range of sizes depending on the requirements of the application. Precision mechanical components often require tubes with small diameters and thin wall thicknesses, while hydraulic cylinders and heavy machinery may require thicker wall tubing.
The following table shows typical cold drawn seamless tube size ranges used in mechanical and hydraulic industries.
|
Outside Diameter (OD) |
Wall Thickness (WT) |
Typical Application |
| 6 mm – 20 mm | 1 – 3 mm | Precision mechanical parts |
| 20 mm – 60 mm | 2 – 6 mm | Hydraulic systems |
| 60 mm – 120 mm | 3 – 12 mm | Industrial machinery |
| 120 mm – 250 mm | 5 – 25 mm | Heavy mechanical equipment |
Because precision tubes are used in engineering equipment where accurate dimensions are critical, strict tolerance control is required during manufacturing.
Cold drawing technology allows manufacturers to achieve much tighter dimensional tolerances compared with hot rolled tube production. The improved dimensional control ensures better compatibility with mechanical components and reduces additional machining requirements.
The following table compares typical dimensional tolerances for cold drawn tubes and standard seamless tubes.
|
Tube Type |
Outside Diameter Tolerance |
| Hot Rolled Tube | ±1% |
| Cold Drawn Precision Tube | ±0.5% or better |
In addition to outside diameter tolerance, wall thickness tolerance is also an important factor in precision tube applications. Uniform wall thickness ensures stable mechanical strength and reliable pressure resistance during operation.
Precision tubes produced through cold drawing processes typically achieve wall thickness tolerances of approximately ±7.5%, depending on the material grade and production standard.
Another important consideration for engineers and procurement teams is the weight of the tube. Tube weight affects transportation cost, structural design calculations, and equipment load capacity.
The weight of seamless steel tubes can be calculated using the following standard formula.
Tube Weight (kg/m) = (OD − WT) × WT × 0.02466
Where:
OD = outside diameter (mm)
WT = wall thickness (mm)
The following table provides several examples of typical seamless tube weight calculations.
|
OD (mm) |
WT (mm) |
Weight (kg/m) |
| 25 | 3 | 1.68 |
| 38 | 4 | 3.44 |
| 60 | 5 | 6.79 |
| 89 | 6 | 12.03 |
| 114 | 8 | 20.16 |
These calculations help engineers estimate the total weight of piping systems or mechanical structures when designing industrial equipment.
Cold drawn precision tubes are produced according to several international standards that define dimensional tolerances, chemical composition, mechanical properties, and testing requirements.
Common standards for precision tubes include the following.
|
Standard |
Typical Grades |
Application |
| EN10305 | E355 | Hydraulic and mechanical tubes |
| DIN2391 | ST52 / E355 | Precision engineering |
| ASTM A106 | Grade B | Mechanical and pressure applications |
| ASTM A179 | A179 | Heat exchanger tubing |
Among these specifications, EN10305 E355 precision tubes are widely used in hydraulic cylinder manufacturing and mechanical engineering industries. These tubes provide excellent strength, good machinability, and reliable dimensional stability.
DIN2391 ST52 seamless precision tubes are also commonly used in industrial machinery and engineering equipment because of their high strength and excellent mechanical properties.
Producing high quality cold drawn tubes requires advanced manufacturing equipment and strict quality control systems.
Womic Steel operates modern cold drawing production lines capable of manufacturing high precision seamless tubes in a wide range of sizes and material grades. The production process includes several important stages designed to ensure consistent product quality.
These stages typically include:
Steel billet inspection
Hot rolled tube production
Cold drawing processing
Heat treatment and stress relief
Straightening and cutting
Dimensional inspection and testing
Each stage of production is carefully monitored to maintain tight dimensional tolerances and stable mechanical performance.
Quality inspection is a critical step in precision tube manufacturing. Because these tubes are used in hydraulic equipment, automotive components, and mechanical systems, they must meet strict quality standards.
Typical inspection procedures include ultrasonic testing, eddy current testing, chemical composition analysis, mechanical property testing, and dimensional tolerance inspection.
At Womic Steel, every batch of cold drawn seamless tubes undergoes comprehensive inspection before shipment to ensure compliance with international standards and customer engineering requirements.
In addition to producing standard precision tubes, many industrial applications require customized tube processing services. These may include special cutting lengths, bending operations, machining processes, and special shape tube fabrication.
Womic Steel provides customized tube manufacturing services, supporting equipment manufacturers, engineering contractors, and machinery producers with reliable precision tubing solutions for global industrial projects.
As demand for high precision mechanical equipment continues to increase, cold drawn seamless tubes have become essential materials in modern manufacturing industries.
With advanced production technology and professional manufacturing teams, Womic Steel supplies high quality cold drawn seamless tubes and precision steel tubes for global industrial customers, ensuring reliable product performance and consistent supply for engineering projects worldwide.
