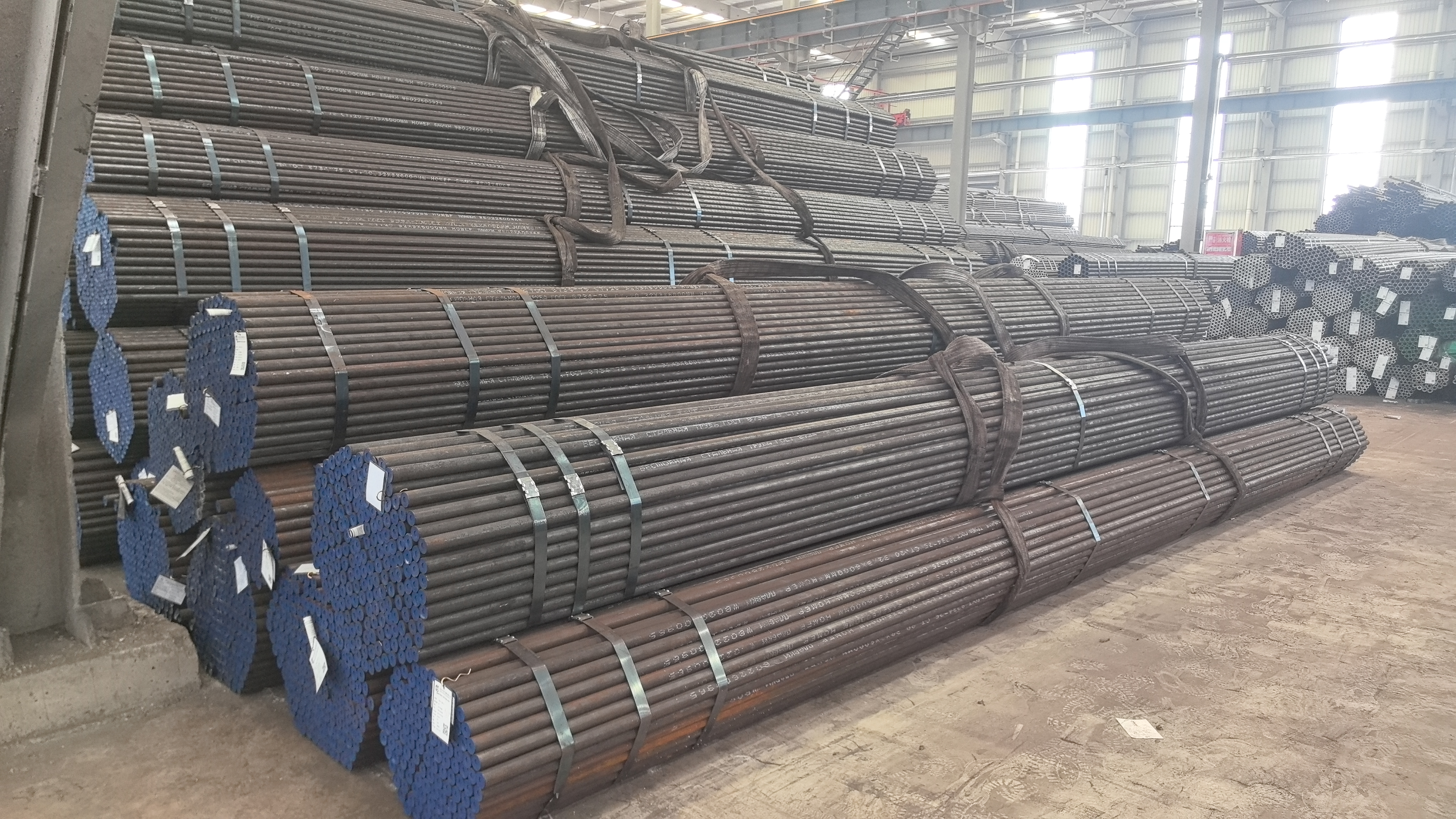

Cold Drawn Tubes for Hydraulic Cylinder Applications

Hydraulic systems are widely used in modern industrial equipment, construction machinery, manufacturing machines, and heavy engineering systems. Hydraulic cylinders play a critical role in these systems by converting hydraulic pressure into mechanical force. Because hydraulic cylinders operate under high pressure and repetitive mechanical motion, the quality and precision of the steel tubes used in these systems are extremely important.

Cold drawn seamless tubes are one of the most commonly used materials for manufacturing hydraulic cylinder components. These tubes provide excellent dimensional accuracy, improved mechanical strength, and a smooth surface finish, making them suitable for demanding hydraulic applications.

Womic Steel is a professional manufacturer of cold drawn seamless tubes and precision hydraulic tubes, supplying high-quality tubing products for hydraulic equipment manufacturers and engineering companies around the world.

Cold drawn tubes are produced through a precision manufacturing process in which hot rolled seamless tubes are further processed by drawing them through hardened dies at room temperature. This process reduces the outside diameter and wall thickness of the tube while improving dimensional accuracy and mechanical performance.

The cold drawing process also increases the strength of the steel through work hardening and refines the internal grain structure. As a result, cold drawn tubes offer excellent dimensional stability and improved fatigue resistance, which are essential for hydraulic systems that operate under continuous pressure and mechanical stress.

Hydraulic cylinders require steel tubes with specific properties to ensure safe and reliable operation. These properties include high tensile strength, good fatigue resistance, uniform wall thickness, and precise dimensional tolerances.

The following table summarizes the key requirements for hydraulic cylinder tubes.

Cold drawn seamless tubes are widely used for several hydraulic system components, including cylinder barrels, piston rods, and structural parts of hydraulic equipment.

Hydraulic cylinders are commonly used in many industries, including construction machinery, agricultural equipment, mining equipment, and industrial automation systems.

Typical hydraulic equipment applications include:

Excavators and loaders
Hydraulic presses
Industrial lifting equipment
Agricultural machinery
Mining machines

In these applications, hydraulic cylinders must operate under high pressure conditions while maintaining stable and precise mechanical movement. This makes high-quality precision tubes essential for the reliability of the entire hydraulic system.

The following table shows common hydraulic cylinder tube size ranges used in industrial applications.

Hydraulic cylinder tubes are usually produced according to several international material standards that define chemical composition, mechanical properties, and manufacturing tolerances.

Common standards used for hydraulic tubes include:

Among these specifications, EN10305 E355 precision tubes are widely used in European hydraulic equipment manufacturing because they provide excellent strength and machinability.

ASTM A519 1026 seamless tubes are also commonly used in hydraulic systems, especially in North American industrial equipment and machinery manufacturing industries.

In hydraulic cylinder production, two types of tubes are commonly used: cold drawn tubes and honed tubes. Although these two products are closely related, they serve different functions in hydraulic systems.

Cold drawn tubes are used as the base material for manufacturing hydraulic cylinders. These tubes provide the necessary mechanical strength and dimensional accuracy required for hydraulic equipment.

Honed tubes are produced by further processing cold drawn tubes through honing or skiving and roller burnishing processes. These processes improve the internal surface finish of the tube and achieve extremely precise internal diameters required for hydraulic cylinder barrels.

The following table compares cold drawn tubes and honed tubes.

Both types of tubes play an important role in hydraulic cylinder manufacturing and are often used together in hydraulic equipment production.

Producing high-quality cold drawn hydraulic tubes requires advanced manufacturing technology and strict quality control procedures.

Womic Steel operates modern cold drawing production lines designed for precision hydraulic tube manufacturing. The production process includes multiple stages to ensure stable product quality and consistent mechanical performance.

These stages typically include:

Steel billet inspection
Hot rolled tube production
Cold drawing processing
Heat treatment and stress relief
Straightening and cutting
Final dimensional inspection

Each stage of the manufacturing process is carefully monitored to maintain strict tolerance control and stable mechanical properties.

Quality inspection is an essential part of hydraulic tube manufacturing. Since hydraulic systems operate under high pressure conditions, tubes must be thoroughly inspected to ensure they are free from defects and capable of maintaining pressure performance.

Typical inspection procedures include ultrasonic testing, eddy current testing, chemical composition analysis, mechanical property testing, and dimensional measurement.

At Womic Steel, every batch of hydraulic precision tubes undergoes strict inspection before shipment to ensure full compliance with international standards and customer specifications.

In addition to producing standard hydraulic tubes, many equipment manufacturers require customized tube processing services to meet specific equipment design requirements.

Womic Steel provides customized manufacturing services, including precision cutting, machining, bending, and special shape tube fabrication. These services allow Womic Steel to support hydraulic equipment manufacturers and engineering companies with reliable tubing solutions.

As the global demand for construction machinery, agricultural equipment, and industrial automation systems continues to grow, hydraulic cylinders remain essential components of modern industrial equipment.

With advanced production facilities and experienced engineering teams, Womic Steel supplies high-quality cold drawn seamless tubes and precision hydraulic tubes for global hydraulic equipment manufacturers, supporting industrial machinery projects worldwide.
