Conveyor systems play a crucial role in modern mining operations and bulk material handling industries. Large volumes of materials such as coal, iron ore, aggregates, and minerals must be transported continuously and efficiently across long distances. Conveyor rollers are key components in these systems because they support the conveyor belt and ensure smooth material transportation.
The performance of conveyor rollers depends heavily on the quality and dimensional accuracy of the steel tubes used to manufacture them. High quality conveyor roller tubes must provide stable roundness, accurate outer diameter tolerance, and excellent mechanical strength to ensure long service life in demanding industrial environments.

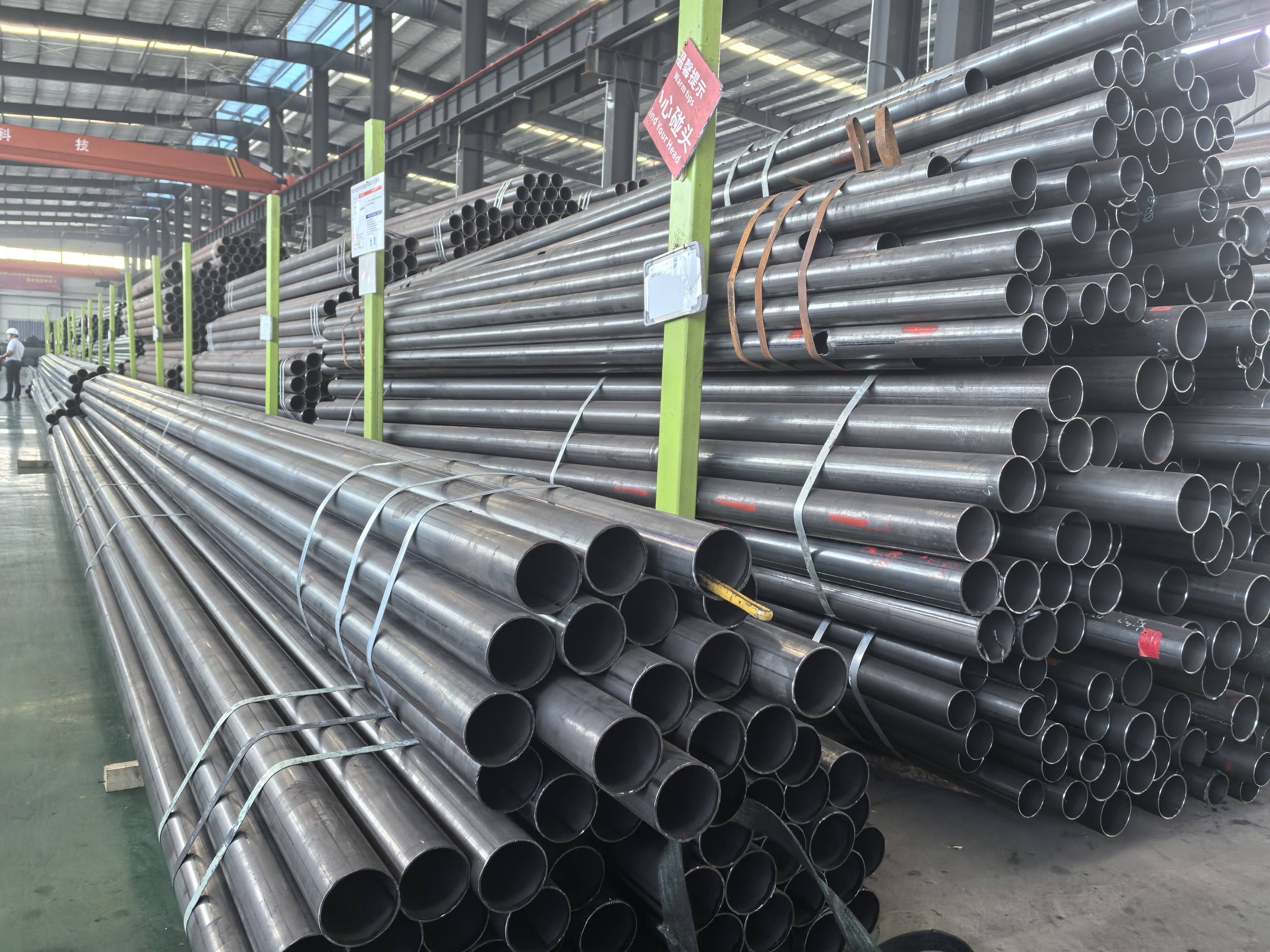

Womic Steel is a professional manufacturer of precision conveyor roller tubes and cold drawn steel tubes, supplying high-quality roller tubing products for conveyor equipment manufacturers and mining machinery companies worldwide.
Mining conveyor systems often operate under extremely demanding conditions. Conveyor rollers are exposed to continuous heavy loads, dust, vibration, and harsh outdoor environments. Therefore, the steel tubes used for conveyor rollers must be manufactured with strict dimensional control and reliable mechanical performance.
One of the most important factors in conveyor roller tube manufacturing is selecting the correct tube size. Different conveyor systems require different roller diameters depending on belt width, load capacity, and conveyor structure design.
The following table shows common conveyor roller tube sizes used in mining conveyor systems.
|
Conveyor Roller Diameter |
Typical Tube OD |
Wall Thickness |
Application |
| 63 mm | 60 mm | 2.5 – 3 mm | Light duty conveyors |
| 76 mm | 76 mm | 3 – 4 mm | Standard belt conveyors |
| 89 mm | 89 mm | 3.5 – 4.5 mm | Mining conveyor systems |
| 108 mm | 108 mm | 4 – 6 mm | Heavy duty conveyors |
| 133 mm | 133 mm | 5 – 8 mm | Bulk material handling |
Among these sizes, 76 mm, 89 mm, and 108 mm conveyor roller tubes are widely used in mining and bulk material handling industries.
For heavy-duty mining conveyor systems, thicker wall tubes are often required to ensure higher structural strength and improved resistance to mechanical impact.
Another critical parameter for conveyor roller tubes is outer diameter tolerance. If the tube diameter varies too much, the finished rollers may experience vibration or unstable rotation during conveyor operation.
High precision conveyor roller tubes help ensure smooth roller rotation and reduce wear on conveyor belts and bearings.
The following table shows typical dimensional tolerance requirements for conveyor roller tubes.
|
Parameter |
Typical Requirement |
| Outer Diameter Tolerance | ±0.05 – ±0.10 mm |
| Ovality | ≤ 50% of OD tolerance |
| Straightness | ≤ 1 / 1000 |
| Surface Roughness | Smooth surface suitable for welding |
Ovality control is especially important for conveyor roller tubes. Ovality refers to the difference between the maximum and minimum diameters of the tube cross-section.
If the tube ovality is too large, the roller may rotate unevenly, causing vibration and reducing the life of conveyor bearings. High precision tube manufacturing helps minimize ovality and maintain stable roller performance.
Cold drawn steel tubes are widely used for manufacturing precision conveyor roller tubes because the cold drawing process significantly improves dimensional accuracy and roundness.
During cold drawing, hot rolled tubes are pulled through hardened dies to achieve tighter dimensional tolerances and improved surface quality. This process also enhances the mechanical strength of the steel tube through work hardening.
As a result, cold drawn conveyor roller tubes provide better roundness, lower ovality, and more consistent outer diameter tolerance, which are essential for high-performance conveyor roller manufacturing.
The materials used for conveyor roller tubes are typically carbon steel grades that provide a good balance of strength, weldability, and cost efficiency.
The following table lists common steel grades used for conveyor roller tubes.
|
Standard |
Grade |
Application |
| ASTM A106 | Grade B | Industrial conveyors |
| ASTM A53 | Grade B | Structural roller tubes |
| EN10219 | S235 / S355 | European conveyor systems |
| DIN2391 | ST37 / ST52 | Precision conveyor rollers |
Among these materials, S355 and ST52 grades are widely used for heavy-duty conveyor systems because they provide higher mechanical strength and improved structural reliability.
Producing high-quality conveyor roller tubes requires advanced manufacturing technology and strict quality control systems.
Womic Steel operates modern tube production lines capable of manufacturing precision conveyor roller tubes with strict dimensional control and stable material performance.
The manufacturing process typically includes several stages.
Steel billet inspection
Hot rolled tube production
Cold drawing or precision sizing
Straightening and cutting
Surface finishing
Final dimensional inspection
Dimensional inspection is particularly important for conveyor roller tubes because accurate roundness and consistent outer diameter ensure stable roller performance during high-speed operation.
Quality inspection procedures typically include:
Dimensional measurement
Roundness inspection
Ultrasonic testing
Mechanical property testing
Surface inspection
At Womic Steel, every batch of precision conveyor roller tubes undergoes strict inspection procedures to ensure compliance with international quality standards and customer technical requirements.
In addition to standard tube production, many conveyor equipment manufacturers require customized tube specifications depending on their roller design and conveyor system configuration.
Womic Steel provides customized manufacturing services for conveyor roller tubes, including special outer diameter tolerances, precision cutting lengths, and customized tube sizes.
With advanced manufacturing equipment and extensive experience in steel tube production, Womic Steel supports conveyor equipment manufacturers and mining machinery companies worldwide with reliable precision conveyor roller tubing solutions.
Womic Steel – Precision Conveyor Roller Tube Manufacturer
Womic Steel is a professional manufacturer specializing in precision conveyor roller tubes, cold drawn seamless tubes, precision steel tubes, boiler tubes, heat exchanger tubes, and custom fabricated tube solutions for global industrial projects. With advanced production equipment and strict quality control systems, Womic Steel supplies high-performance steel tubing products that comply with major international standards including EN10305, DIN2391, ASTM A106, ASTM A179, ASTM A192, ASTM A210, and ASTM A213.
As an experienced precision conveyor roller tube manufacturer, Womic Steel provides high-quality steel tubes for conveyor rollers and idler rollers, widely used in mining conveyor systems, bulk material handling equipment, port logistics systems, cement plants, steel plants, and industrial conveying machinery.
For conveyor roller applications, tube dimensional accuracy is critical to ensure stable rotation and long service life of rollers. Womic Steel produces precision conveyor roller tubes with strict outer diameter tolerance control, excellent roundness, and low ovality, ensuring smooth operation of conveyor systems and reduced vibration during high-speed rotation.
Typical manufacturing control parameters include:
|
Parameter |
Control Capability |
| Outer Diameter Tolerance | ±0.05 – ±0.10 mm |
| Ovality | ≤ 50% of OD tolerance |
| Straightness | ≤ 1 / 1000 |
| Surface Finish | Smooth surface suitable for roller welding |
Through advanced cold drawing technology, precision sizing equipment, and strict dimensional inspection, Womic Steel ensures that every batch of precision conveyor roller tubes meets the demanding requirements of conveyor equipment manufacturers.
In addition to standard conveyor roller tubes, Womic Steel also provides customized tube production services, including precision cutting, special tube lengths, high straightness tubes, custom outer diameter tolerance control, and special surface treatment for conveyor environments.
With modern production lines, experienced manufacturing teams, and comprehensive inspection systems, Womic Steel delivers reliable precision conveyor roller tubes and industrial steel tubing solutions for global conveyor equipment manufacturers and bulk material handling projects.
