EN10216 Boiler Tubes: P235GH, P265GH and 16Mo3 Seamless Steel Tubes for Pressure Equipment

Among the materials defined under EN10216, P235GH is one of the most commonly used carbon steel grades for pressure applications. This material is widely used for boiler tubes, heat exchanger tubes, and pressure vessel piping systems. The “GH” designation indicates that the material is suitable for elevated temperature service, making it appropriate for boiler and heat transfer equipment.

Another widely used grade within the EN10216 specification is P265GH, which provides slightly higher strength compared with P235GH. This material is often selected for pressure systems where additional strength is required while maintaining good weldability and fabrication properties.

For higher temperature applications, alloy steel materials such as 16Mo3 are frequently used. The addition of molybdenum improves the high temperature strength and creep resistance of the steel, allowing the material to perform reliably in demanding thermal environments such as refinery heaters and power plant boilers.

The following table provides a simplified comparison between several common EN10216 boiler tube materials.

Among these materials, EN10216 P235GH is often considered the European equivalent to ASTM A192 or ASTM A210 carbon steel boiler tubes. While the chemical compositions are not identical, the materials serve similar functions in industrial boiler systems and pressure equipment.

The following comparison illustrates the approximate relationship between common ASTM and EN boiler tube materials used in global engineering projects.

Because many international EPC projects involve both European and American standards, manufacturers capable of supplying both ASTM and EN material specifications are highly valuable. Womic Steel manufactures seamless boiler tubes according to multiple international standards, including ASTM A192, ASTM A210, ASTM A213, and EN10216 P235GH, allowing customers to source different materials from a single reliable supplier.

The manufacturing process for EN10216 seamless boiler tubes begins with high quality steel billets that are carefully inspected to ensure compliance with the chemical composition requirements of the standard. These billets are heated and pierced to form hollow tube shells through a hot piercing process, which is a common method used in seamless steel tube manufacturing.

After the initial hollow tube shell is produced, additional processing may be performed to achieve the required tube dimensions. Depending on the application requirements, tubes may undergo hot rolling or cold drawing processes. Cold drawing is particularly useful when high dimensional accuracy and improved surface finish are required, such as in heat exchanger tubing systems.

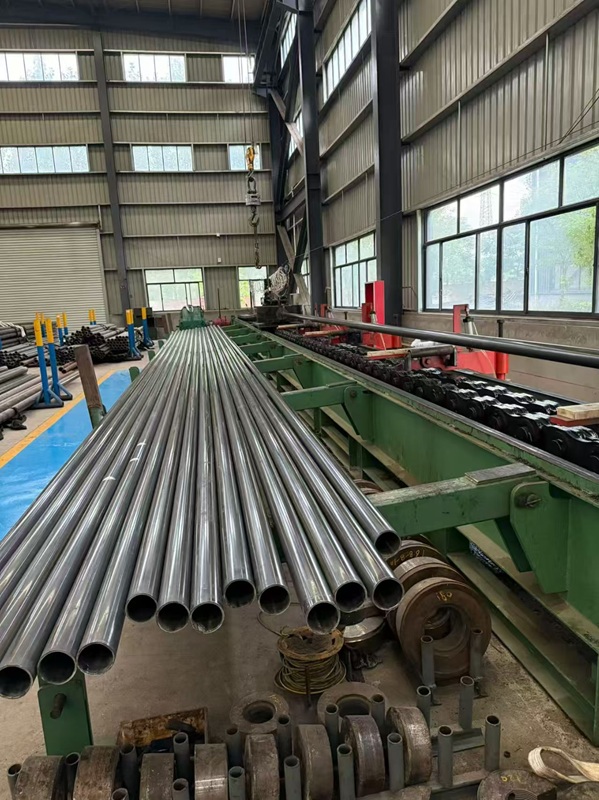

Womic Steel operates advanced cold drawing production lines capable of producing high precision EN10216 P235GH cold drawn tubes. This process allows the company to achieve tight dimensional tolerances, uniform wall thickness, and improved surface quality. These characteristics are especially important for heat exchanger tubes and boiler tubing systems where precise tube dimensions are necessary for proper equipment assembly.

Following dimensional processing, heat treatment is often performed to refine the steel microstructure and achieve the required mechanical properties. Heat treatment processes such as normalizing or annealing help relieve internal stresses created during manufacturing and improve the steel’s resistance to thermal deformation during high temperature operation.

Quality control plays a critical role in the production of EN10216 boiler tubes. Because these tubes are used in pressure equipment operating under demanding conditions, strict inspection procedures are required to ensure product reliability and safety.

Typical inspection methods include:

• Ultrasonic testing for internal material defects
• Eddy current testing for surface imperfections
• Hydrostatic pressure testing to confirm pressure resistance
• Dimensional inspection to verify tube tolerance

At Womic Steel, all EN10216 seamless boiler tubes undergo comprehensive quality inspection before delivery. Modern testing laboratories and experienced quality control personnel ensure that every tube meets international standards such as EN10216 P235GH, ASTM A192, ASTM A210, and ASTM A213 depending on the material specification required by the customer.

EN10216 boiler tubes are widely used in a variety of industrial sectors. In power generation facilities, these tubes are commonly used in boiler tubing systems and heat recovery equipment. Their ability to maintain mechanical strength under elevated temperatures ensures reliable performance in long-term boiler operation.

In petrochemical plants and oil refineries, EN10216 tubes are frequently used in heat exchangers and process heating systems. Materials such as P235GH and 16Mo3 are well suited for transferring heat between process fluids while maintaining structural integrity under pressure and temperature fluctuations.

Many heat exchanger designs also require tubes to be bent into specific shapes in order to optimize heat transfer efficiency. One of the most common configurations is the U bend tube, which allows both ends of the tube to connect to the same tube sheet. This design is widely used in shell and tube heat exchangers because it accommodates thermal expansion while maintaining compact equipment design.

Womic Steel provides complete fabrication services for heat exchanger tubing, including EN10216 P235GH straight tubes, cold drawn precision tubes, and custom fabricated U bend tubes. The company also produces specialized tube shapes such as serpentine tubes, multi-bend tubes, and coil tubes for equipment manufacturers requiring customized heat transfer solutions.

Selecting a reliable boiler tube manufacturer is essential for ensuring the quality and safety of pressure equipment. Manufacturers must possess advanced production facilities, strict quality control procedures, and the ability to supply tubes according to multiple international standards.

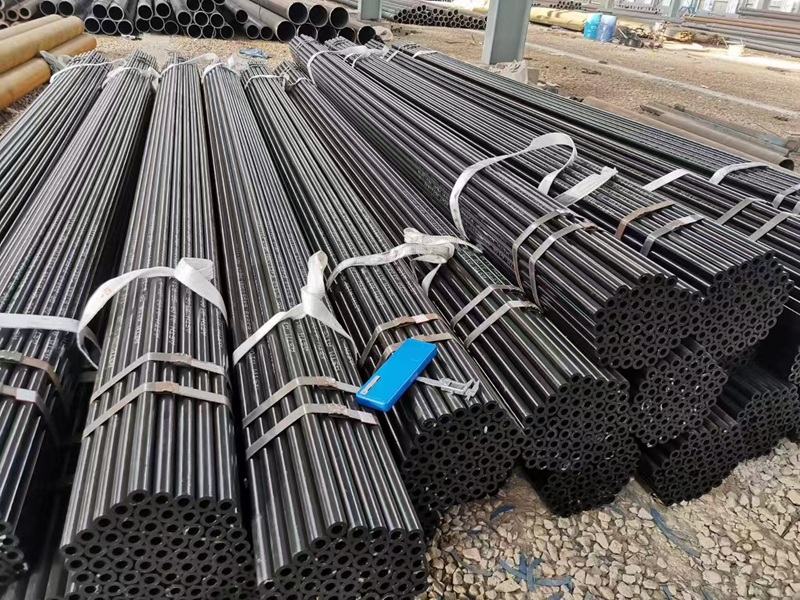

With extensive experience in seamless tube production, Womic Steel has established itself as a trusted supplier of EN10216 boiler tubes and ASTM boiler tubing materials. The company provides a comprehensive range of tubing solutions including ASTM A192 carbon steel tubes, ASTM A210 boiler tubes, ASTM A213 alloy steel tubes, and EN10216 P235GH seamless tubes.

As global energy infrastructure continues to expand, reliable boiler tubing materials remain essential components in modern industrial systems. Whether used in power plants, refinery heating systems, or industrial heat exchangers, seamless boiler tubes produced according to EN10216 standards play a critical role in ensuring safe and efficient operation.

By combining advanced manufacturing technology, strict inspection procedures, and extensive experience in seamless tube production, Womic Steel continues to provide high performance boiler tubes and heat exchanger tubes for global engineering projects. Materials such as EN10216 P235GH, P265GH, and 16Mo3 remain essential for reliable pressure equipment and industrial heat transfer systems.
