If you see a massive ship floating on the ocean, staying in the same spot for decades, with oil tankers regularly coming alongside to "pick up cargo" – chances are, it is not a cargo vessel. It is an FPSO.
01 What is an FPSO?
FPSO stands for Floating Production Storage and Offloading. In simple terms, it is a floating oil and gas factory at sea.
It looks like a ship, but it is actually a floating industrial plant that can process crude oil, store it, and offload it to tankers. The FPSO is the backbone of global offshore oil and gas development, accounting for over 80% of all floating production system investments. Its core functions are written right into its name:
Production – Separating oil, gas, water, and sand mixtures from wellheads through compressors, separators, and treatment systems. A large FPSO can process 150,000 to 200,000 barrels of crude oil per day – equivalent to a small onshore refinery.
Storage – Many deepwater fields are located far from shore. Building long-distance pipelines is expensive and time-consuming. The FPSO solves this by storing treated crude oil in its hull. Typical FPSO deadweight tonnage ranges from 100,000 to 300,000 tons, with storage capacity of 700,000 to 2 million barrels.

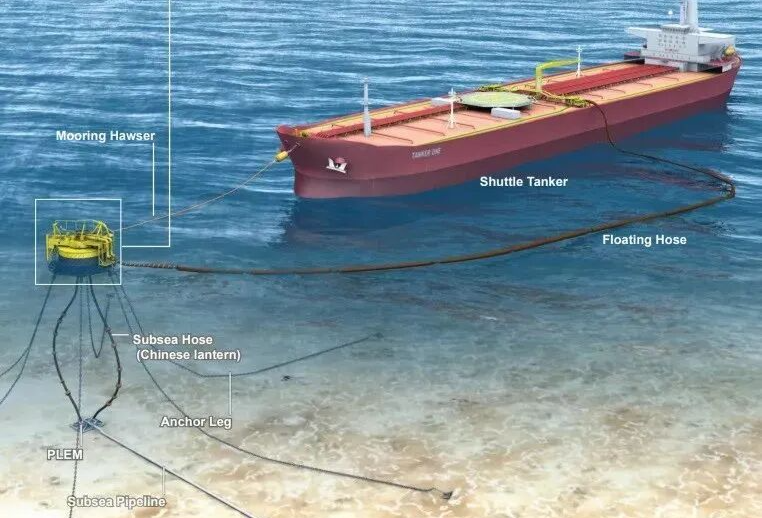

Offloading – Through floating hoses or offloading arms, crude oil is transferred to shuttle tankers for transport to shore. An FPSO typically offloads 2 to 4 times per week.

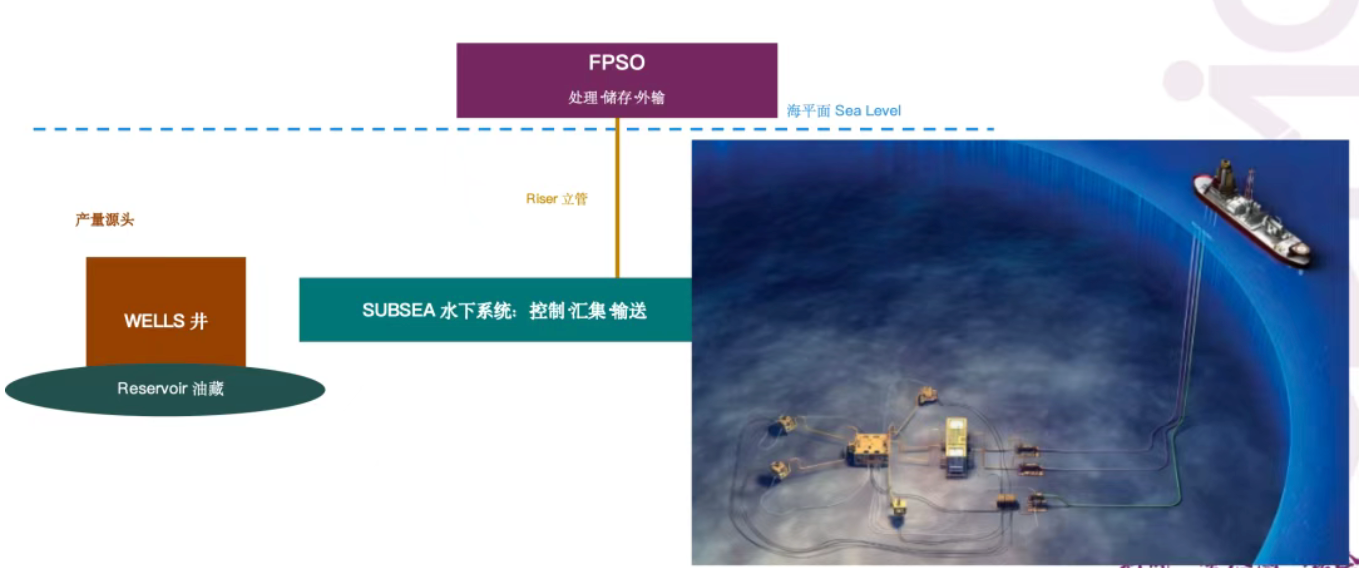

02 Oil and Gas Production Flow: Where Does the FPSO Fit In?
In a real offshore oil and gas development project, the FPSO is just one part of a much larger system. Before a field can turn seabed resources into steady cash flow, three main lines must work together: wells, subsea systems, and surface processing facilities.
Drilling rigs or drillships drill the wells and bring oil and gas to the surface. Subsea Christmas trees control wellhead flow. Subsea pipelines transport the produced mixture to the FPSO. The FPSO then handles processing, storage, and offloading.
Step One: Extraction and Transfer
What comes out of a subsea well is not pure oil. It is a mixture of oil, gas, water, and sand. This mixture travels through subsea pipelines or risers to the FPSO. The risers that connect the seabed to the FPSO are the "arteries" of the system. They must withstand high pressure, corrosion, and harsh sea conditions. This is also why subsea systems are often the source of project delays and cost overruns.
Step Two: FPSO Processing – The Core Function

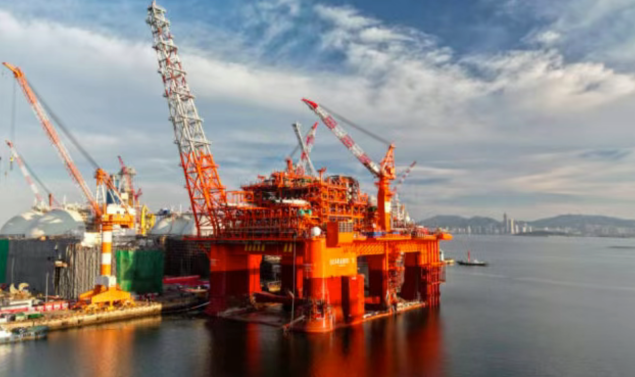

An FPSO looks like a ship on the outside, but inside it is closer to a floating factory. The deck is covered with processing modules that resemble a small refinery:
l Separators use gravity to separate oil, gas, and water
l Crude oil stabilization units remove light components to prevent evaporation loss during storage and transport
l Gas treatment systems dehydrate and desulfurize natural gas. Treated gas can be used for power generation or reinjected into the reservoir
l Water treatment systems treat produced water for reinjection or discharge (environmental regulations are becoming increasingly strict)
Once treated, the qualified crude oil is stored in the FPSO's hull tanks.
Step Three: Offloading
When crude oil reaches a certain volume, a shuttle tanker berths alongside the FPSO. Floating hoses transfer the oil to the tanker, which then transports it to shore refineries. Production is not complete until the oil is sold – offloading capability is the last mile of commercial realization.
The Core Value of FPSO
The FPSO solves a fundamental problem: it makes deepwater fields economically viable. In shallow waters, you can lay pipelines to shore. But in water depths exceeding 1,000 meters, laying hundreds of kilometers of pipeline is extremely expensive and technically challenging. The FPSO allows you to process, store, and offload right at the field – turning "undevelopable" deepwater reserves into profitable assets.
03 FPSO, FPU, FLNG, FSRU: What's the Difference?
These four acronyms are often discussed together, but they serve fundamentally different purposes. FPSO handles crude oil (Oil). FLNG handles natural gas (Gas) liquefaction and export. FSRU handles natural gas (Gas) receipt and regasification. FPU only processes – it does not store.
FPSO (Floating Production Storage and Offloading): The "floating refinery" for deepwater oil fields. It processes crude oil, stores it, and offloads it to tankers.
FPU (Floating Production Unit): A pure production platform. It separates oil, gas, and water, but has no storage capacity. Processed oil and gas must be immediately sent away through pipelines. It is typically used in fields with existing pipeline networks.

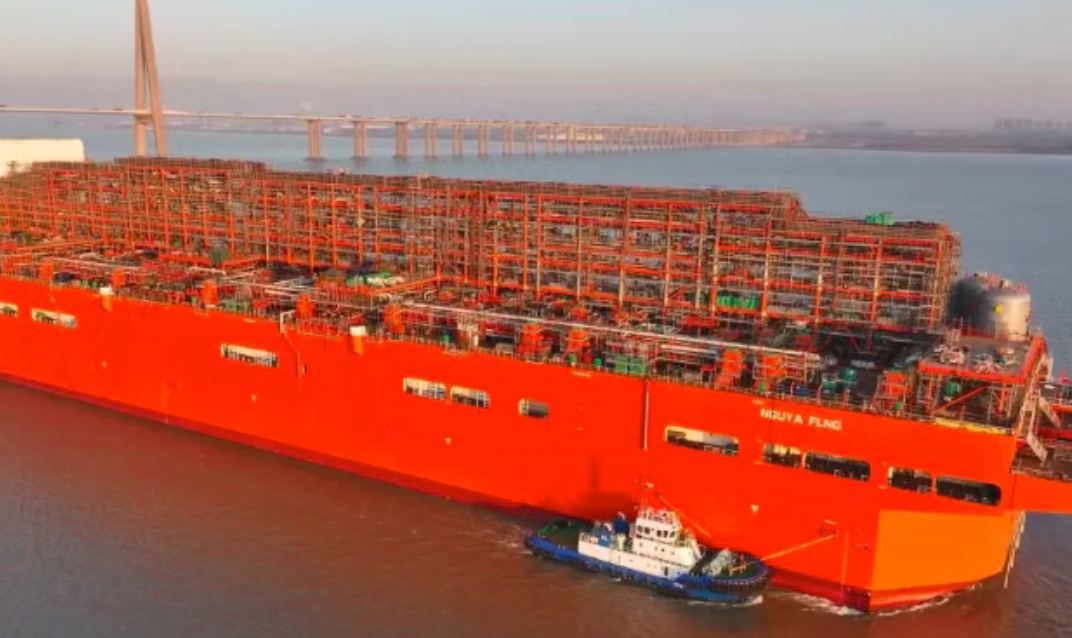

FLNG (Floating Liquefied Natural Gas): A floating natural gas liquefaction plant. It moors above a gas field, purifies and liquefies extracted gas, stores it, and offloads to LNG carriers. It eliminates the need for onshore liquefaction plants and long-distance gas pipelines.
FSRU (Floating Storage and Regasification Unit): An LNG receiving terminal. LNG carriers bring liquefied natural gas to the FSRU, which stores it and regasifies it back into gaseous form for pipeline distribution. It offers short construction cycles and high flexibility.

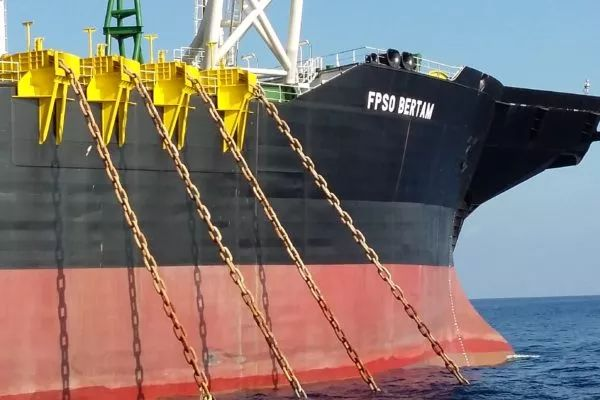

04 How Does an FPSO Stay in Place? The Single Point Mooring System
An FPSO must stay fixed in a specific location for decades. It cannot drift away. This is achieved through a mooring system. Because risers have limited flexibility, the FPSO's movement is also constrained.
Mooring systems fall into two main categories:
Multi-Point Mooring
Multiple anchors secure the FPSO from both bow and stern. The vessel's orientation is fixed. This system is simpler and less expensive, but it is highly sensitive to local wind and wave conditions. It is only suitable for mild sea conditions, such as those off West Africa.
Single Point Mooring (SPM)
This is the most common mooring method for FPSOs, used by approximately 80% of the global fleet. The core principle is simple: the FPSO rotates 360 degrees around an underwater fixed point (turret). It behaves like a weather vane, always aligning with wind and waves to minimize forces. This makes it suitable for harsh sea conditions.
The three main types of SPM connections are:

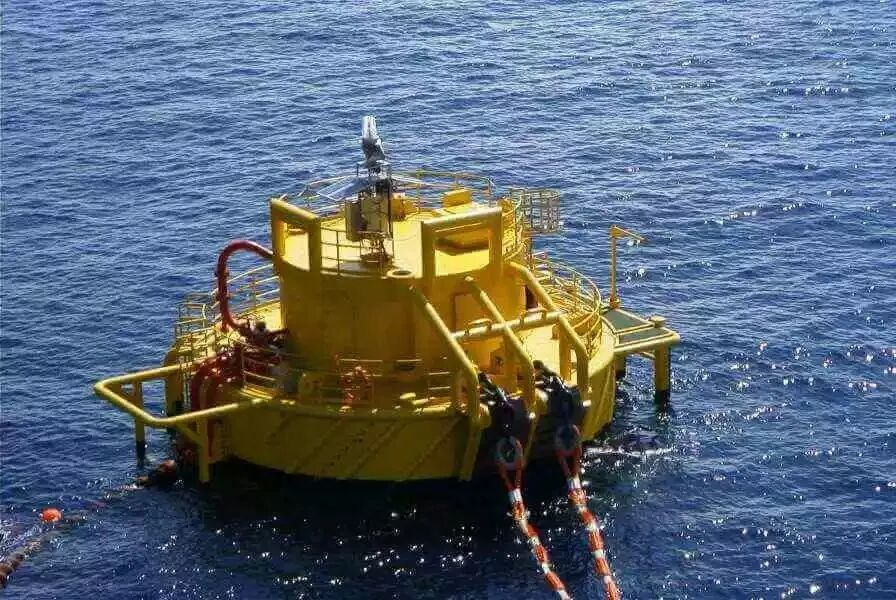

Buoy Type: A buoy anchored offshore serves as both a mooring point and a connection node between subsea manifolds and the vessel. It transfers oil, gas, and liquids between seabed systems and the moored tanker.
ower Type: A rigid tower structure fixed to the seabed serves as a permanent mooring anchor. Soft yoke arms connect the tower to the FPSO. This is suitable for shallow to medium water depths.

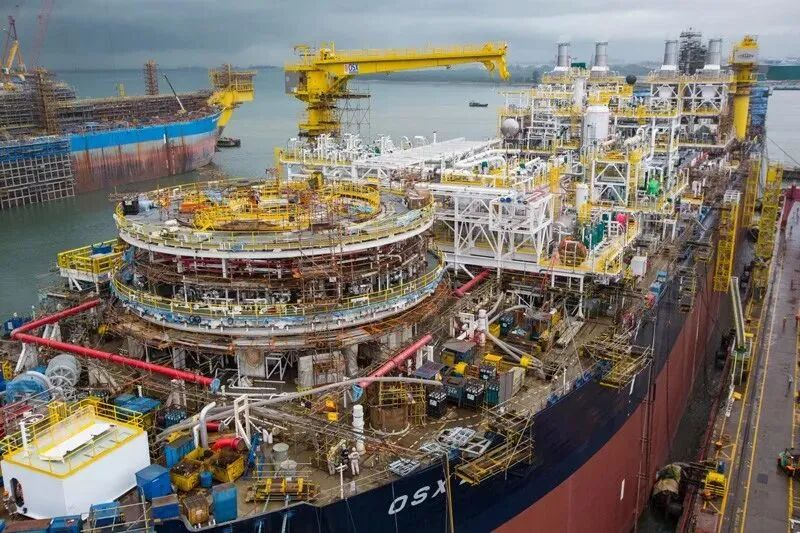

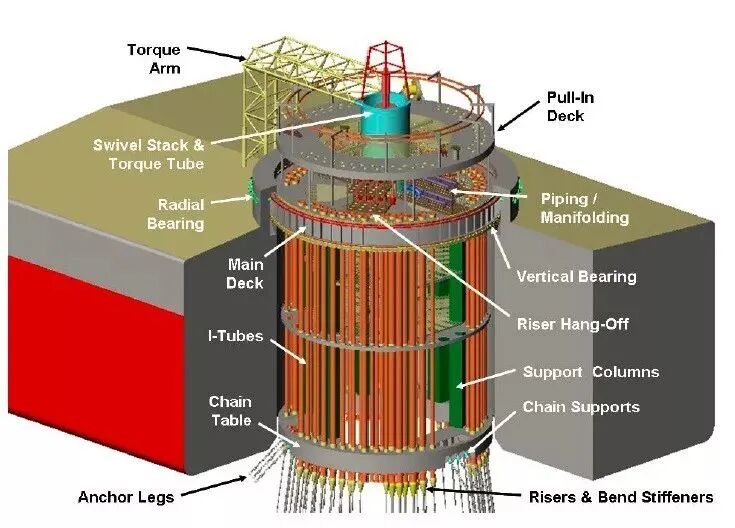

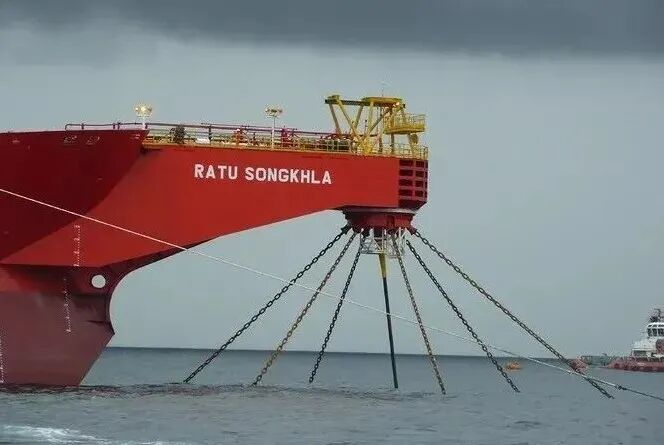

Turret Type: Used by over 70% of global FPSOs. The turret integrates mooring, fluid transfer, and power/hydraulic transmission. Internal turrets are embedded within the hull. External turrets are mounted at the bow and are common for converted tankers.
The single point mooring system has two critical functions. First, it keeps the FPSO positioned over the field. Second, it serves as the connection hub between subsea production systems and the FPSO, transferring wellhead fluids, electrical power, and control signals. Some SPM systems also feature emergency disconnection, allowing the FPSO to detach and sail to safety in extreme weather.
In 2023, China's first domestically produced permanent mooring steel cable was successfully installed on the FPSO Nanhai Fenjin, marking a breakthrough in local single point mooring technology.
05 Digital Twins: From Blind Operation to Visualized Maintenance
FPSOs are dense with equipment, complex in systems, and high in safety risk. In traditional operations, managers rely on scattered sensor data and two-dimensional reports. When something goes wrong, it is difficult to quickly locate the root cause.
Digital twin technology is changing this.

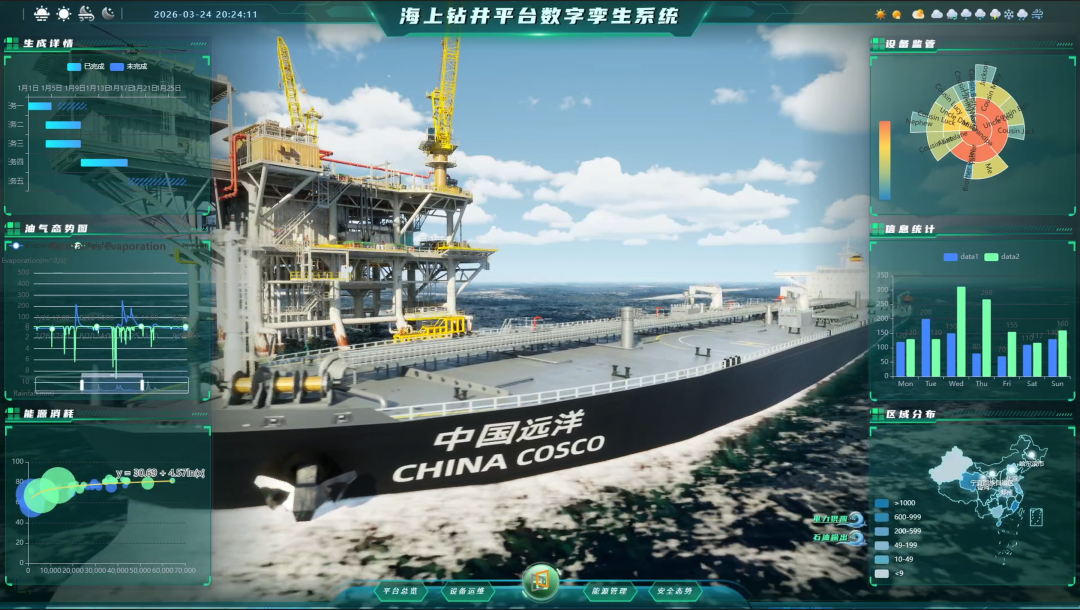

Take China's first intelligent FPSO, Haiyang Shiyou 123, as an example. It uses digital twin technology to achieve full lifecycle digital management of hull structure, production processes, and equipment status. Technicians at onshore control centers can monitor offshore production through a "digital clone" of the vessel.

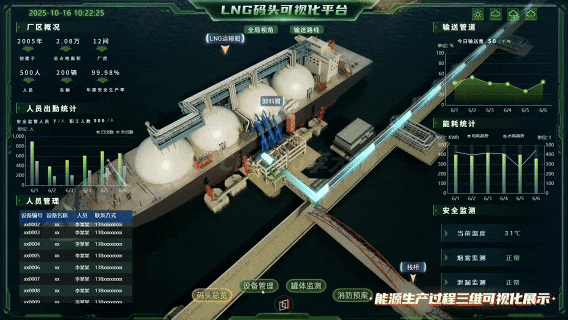

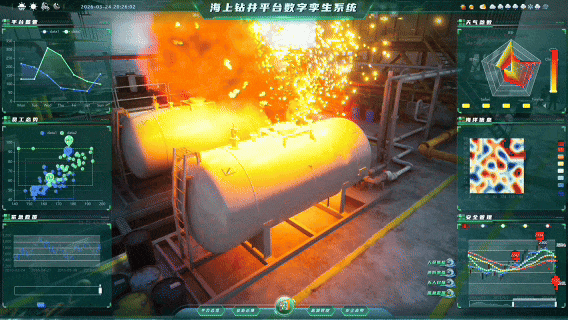

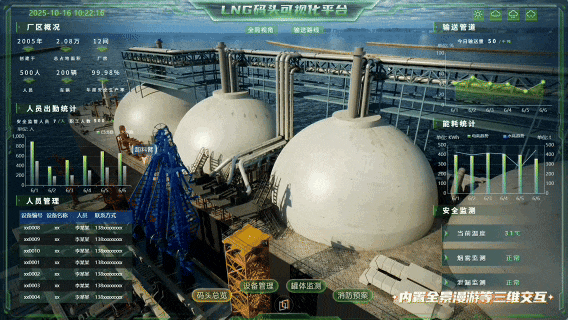

Using digital twin platforms, operators can build high-fidelity 3D digital twins of FPSOs:
Hull Structure Visualization: One-to-one restoration of hull and topside modules, supporting layered viewing and drill-down browsing.
Real-Time Equipment Status Mapping: Sensor data on temperature, pressure, vibration, and flow rates dynamically drive model status. Anomalies trigger automatic color-coded alerts.
Process Flow Simulation: Visual display of the entire oil-gas-water separation, treatment, storage, and offloading process.
Mooring System Monitoring: Real-time display of turret status and anchor chain tension, with early warning for abnormal drift.
Offloading Operation Visualization: Simulation of offloading operations under different sea conditions.
These platforms support access to over 30 data source types, no-code drag-and-drop building, and local software and hardware adaptation. They are widely used in shipbuilding and marine engineering, energy and power, and smart manufacturing. Whether for FPSOs, drilling rigs, or LNG terminals, digital twin systems can be rapidly deployed to transform offshore energy facility management from "passive response" to "active early warning."
06 Womic Steel: Your Trusted Partner for FPSO Piping and Valve Components
At Womic Steel, we understand that an FPSO is not just a ship – it is a critical piece of national energy infrastructure. Every component on board must perform reliably for decades in some of the harshest marine environments on earth.
Our Products for FPSO Applications

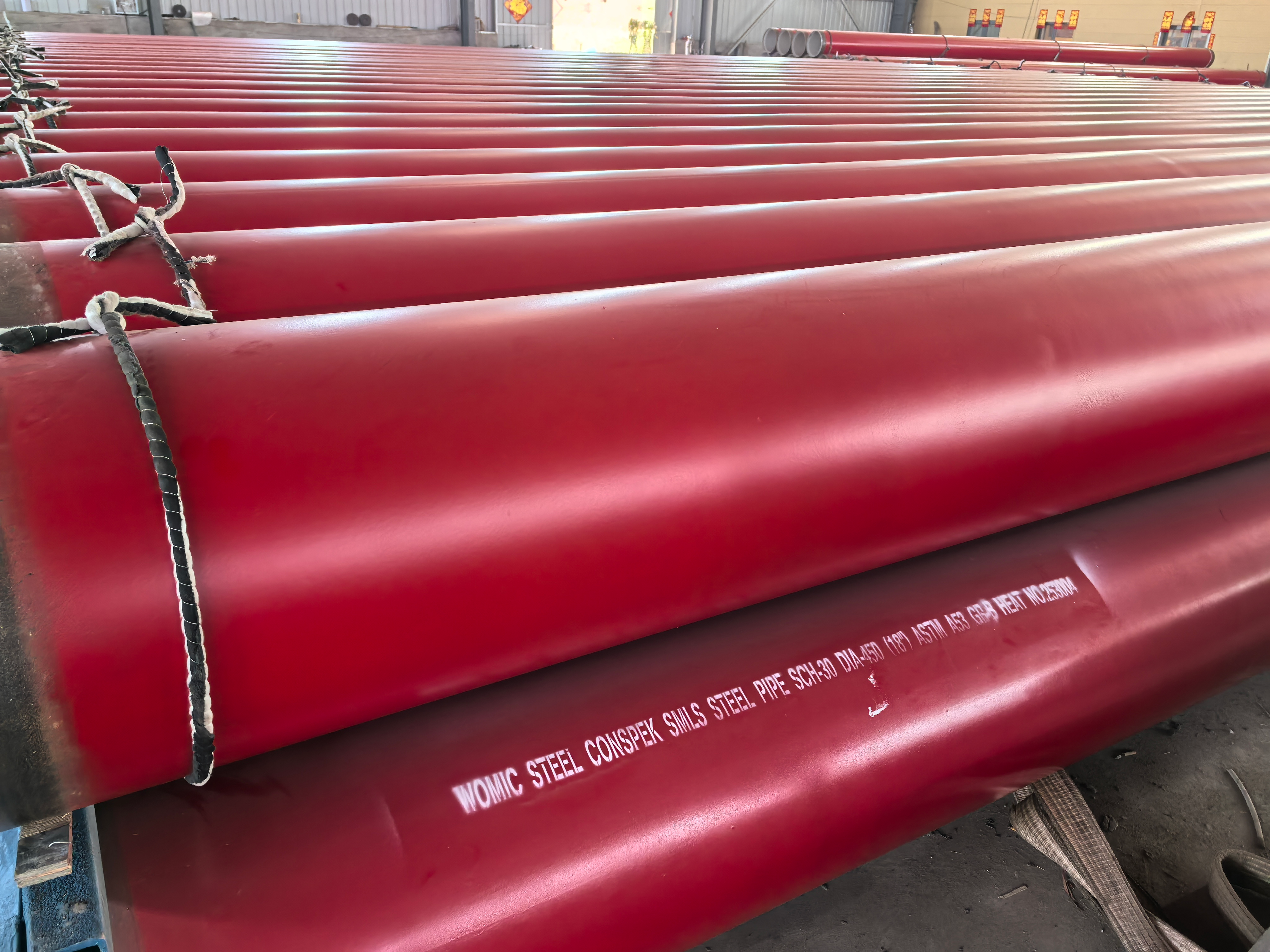

Womic Steel supplies high-quality seamless and welded steel pipes, fittings, flanges, and valve components for FPSO topside modules, hull piping systems, risers, and subsea infrastructures.
| Product Category | Typical Grades | Key Features |
| Seamless Process Pipes | API 5L X52, X65, X70, EN 10216-3 P355NH | High pressure resistance, low temperature toughness |
| Sour Service Pipes | EN 10216-4 P275NL2, P355NL2 | H2S resistant, NACE MR0175 compliant |
| Low Temperature Pipes | EN 10216-3 P355NH, EN 10216-4 P265NL | -40°C to -50°C impact toughness |
| Structural Tubes | EN 10210, EN 10219, ASTM A500 | Deck supports, helideck structures |
| Pipe Fittings and Flanges | ASTM A105, A182 F316L, A694 | High pressure, corrosion resistant |
| Valve Components | Forged and cast materials | Ball valves, gate valves, check valves |
Why FPSO Operators and EPC Contractors Choose Womic Steel
Decades of Offshore Experience
We have supplied materials for FPSO projects operating in the North Sea, South China Sea, West Africa, and Brazil. Our team understands the stringent requirements of offshore classification societies including ABS, DNV, BV, and LR.
Full Traceability and Certification
Every pipe, fitting, and flange we supply comes with full material traceability from ladle to finished product. EN 10204 Type 3.1 and 3.2 certificates are standard. Third-party inspections by SGS, BV, and TÜV are readily accommodated.
Low Temperature and Sour Service Expertise
FPSO operations often involve low temperatures (offshore North Sea and Arctic) or sour crude with H2S. Womic Steel supplies P355NH for -20°C service, P265NL and P275NL for -40°C cryogenic conditions, and P275NL2 and P355NL2 for sour service with guaranteed hardness ≤ 190 HV and HIC testing per NACE TM0284.
Global Logistics Support
From our manufacturing base in Tianjin, we ship to shipyards and fabrication yards worldwide – including Singapore, South Korea, China, Dubai, and Brazil. We understand the just-in-time demands of FPSO construction and module fabrication.
Project Experience – Womic Steel FPSO Piping Supply
Project: FPSO Vessel Topside Module Piping – Singapore Shipyard
Standard & Grade: EN 10216-3 P355NH (Normalized Fine Grain, -20°C Impact)
Specifications & Quantity:
l OD 219.1mm (8") × WT 12.5mm – 18 km (approx. 890 tons)
l OD 168.3mm (6") × WT 10.0mm – 25 km (approx. 1,020 tons)
l OD 114.3mm (4") × WT 8.0mm – 32 km (approx. 840 tons)
l OD 88.9mm (3") × WT 6.3mm – 40 km (approx. 540 tons)
Total: 115 km (approx. 3,290 tons)
Usae: Process piping for oil-gas-water separation modules, produced water treatment modules, and metering packages. Design temperature: -15°C to 120°C. Design pressure: 4.0 MPa.
Technical Challenges & Solutions:
1. Tight delivery schedule for module fabrication – The shipyard required delivery within 45 days of order confirmation for first batch. Womic prioritized P355NH production and completed first shipment (35 km) in 28 days. All 115 km delivered within 60 days.
2. EN 10204 Type 3.2 certification with BV – Client required Bureau Veritas witnessed testing. Womic coordinated with BV surveyor for tensile, flattening, and Charpy impact tests at -20°C. Type 3.2 certificates issued within 14 days.
3. Pickled and oiled finish for module fabrication – Standard black finish would require field cleaning before welding. Womic supplied all P355NH tubes with pickled and oiled finish. Surface roughness Ra ≤ 2.5μm. No additional cleaning required at shipyard.
4. Charpy impact at -20°C – Client required 40J minimum average at -20°C. Womic achieved 80-135J.
Result: FPSO topside modules successfully fabricated and integrated. Vessel commenced production in 2021 and has operated for three years with no piping failures.
