Heat exchangers are essential equipment used in many industrial sectors including power generation, petrochemical processing, oil refining, and chemical manufacturing. These systems transfer heat between fluids while keeping them physically separated, which makes them critical components in energy efficiency and thermal management systems. At the heart of every heat exchanger system are heat exchanger tubes, which must provide excellent heat transfer performance while maintaining structural integrity under high temperature and pressure conditions.
Selecting a reliable heat exchanger tube manufacturer is essential for ensuring the long-term performance and safety of industrial heat transfer systems. High quality heat exchanger tubes must offer good thermal conductivity, strong corrosion resistance, precise dimensional tolerance, and reliable mechanical strength.
Womic Steel is a professional heat exchanger tube manufacturer specializing in the production of seamless heat exchanger tubes, cold drawn precision tubes, and custom fabricated U bend tubes for global industrial projects. With advanced seamless tube manufacturing equipment and strict quality control systems, Womic Steel supplies high-performance tubing solutions for engineering contractors, heat exchanger manufacturers, and EPC companies worldwide.
Heat exchanger tubes are typically produced using seamless tube manufacturing processes. Compared with welded tubes, seamless tubes provide superior pressure resistance and structural reliability because they do not contain welded seams. This makes seamless tubes particularly suitable for high pressure and high temperature applications.
The production process usually begins with high quality steel billets. These billets are heated and pierced to create hollow tube shells before being processed through hot rolling mills. In many cases, additional cold drawing processes are applied to improve dimensional accuracy, surface finish, and mechanical properties.
Womic Steel operates modern seamless tube production lines capable of manufacturing both hot rolled and cold drawn heat exchanger tubes, ensuring precise dimensions and consistent product quality.
Heat exchanger tubes are manufactured according to several international standards depending on the application requirements. The most commonly used standards include ASTM A179, ASTM A192, ASTM A210, ASTM A213, and EN10216 P235GH.
The following table summarizes some of the most commonly used heat exchanger tube materials and standards.
|
Standard |
Typical Grades |
Material Type |
Application |
| ASTM A179 | Carbon Steel | Seamless heat exchanger tubes | Heat exchangers |
| ASTM A192 | Carbon Steel | High pressure boiler tubes | Boilers |
| ASTM A210 | Grade A1 / C | Carbon Steel | Boilers & heat exchangers |
| ASTM A213 | T11 / T22 / TP304 / TP316 | Alloy & stainless steel | High temperature heat exchangers |
| EN10216 | P235GH | Carbon Steel | Pressure equipment |
Among these materials, ASTM A179 seamless tubes are widely used in shell and tube heat exchangers due to their excellent heat transfer performance and good mechanical properties. These tubes are typically manufactured using cold drawing processes to ensure smooth surfaces and accurate dimensional tolerance.
Another commonly used specification is ASTM A213 alloy steel and stainless steel tubes, which are designed for high temperature service conditions. Materials such as T11 and T22 alloy steel offer improved high temperature strength and creep resistance, making them suitable for superheaters and high temperature heat exchanger systems.
Stainless steel grades under ASTM A213 such as TP304 and TP316 are frequently used in corrosive environments where oxidation and chemical corrosion resistance are required.
European industrial projects often use EN10216 P235GH seamless tubes, which are designed for pressure equipment and heat transfer systems operating under moderate temperature conditions.
Because different heat exchanger systems operate under varying temperature and pressure conditions, selecting the appropriate material is essential for achieving long-term performance and safety.
In addition to material selection, heat exchanger tube dimensions are another important factor in equipment design. Tube outside diameter, wall thickness, and length must match the design specifications of the heat exchanger.
The following table shows common heat exchanger tube sizes used in shell and tube heat exchangers.
|
Outside Diameter |
Wall Thickness |
Typical Use |
| 12.7 mm | 1.65 mm | Compact heat exchangers |
| 15.88 mm | 2.11 mm | Industrial heat exchangers |
| 19.05 mm | 2.77 mm | Petrochemical heat exchangers |
| 25.4 mm | 3.38 mm | High capacity heat exchangers |
Most heat exchanger tubes are produced in standard lengths such as 6 meters or 12 meters, although custom lengths can also be manufactured depending on project requirements.

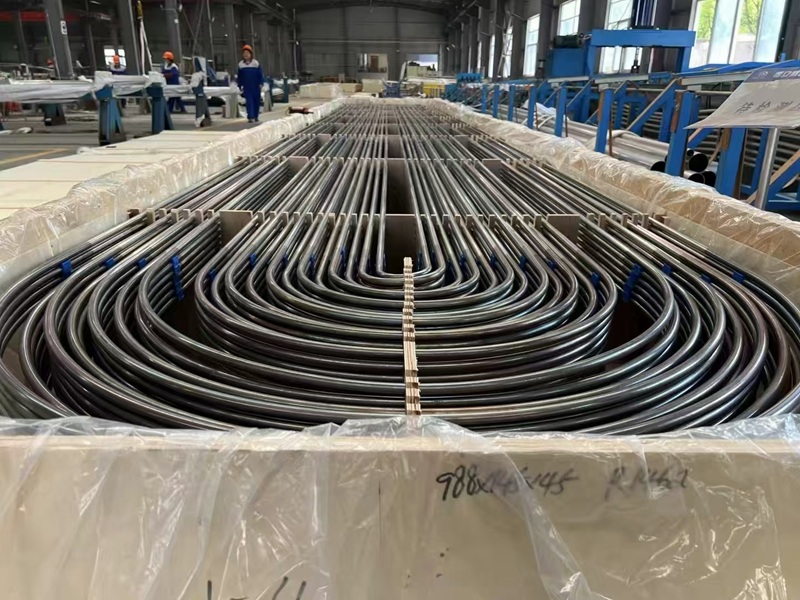

Many shell and tube heat exchangers also require tubes to be bent into special shapes to accommodate thermal expansion and equipment design. One of the most common configurations is the U bend heat exchanger tube.
U bend tubes allow both ends of the tube to connect to the same tube sheet, which simplifies equipment design and allows the tube to expand and contract under thermal conditions without causing structural stress.
Womic Steel provides complete heat exchanger tube fabrication services, including U bend tubes, serpentine tubes, multi-bend tubes, and coil tubes. These custom fabricated tubes are widely used in shell and tube heat exchangers, condensers, and industrial cooling systems.
Manufacturing high quality heat exchanger tubes requires strict quality control procedures. Because these tubes operate under demanding conditions, manufacturers must perform comprehensive inspection and testing to ensure product reliability.
Typical inspection procedures include:
• Ultrasonic testing for internal defects
• Eddy current testing for surface imperfections
• Hydrostatic pressure testing
• Mechanical property testing
• Chemical composition analysis
At Womic Steel, every batch of seamless heat exchanger tubes undergoes strict inspection before shipment. Advanced testing equipment and experienced quality control engineers ensure that all products comply with international standards and customer specifications.
Heat exchanger tubes are widely used across many industrial sectors. In power plants, these tubes are used in condensers and heat recovery systems. In petrochemical facilities and oil refineries, heat exchangers are used to transfer heat between process fluids during chemical production.
Because heat exchanger systems are critical to industrial operations, selecting a reliable heat exchanger tube manufacturer and supplier is essential for ensuring safe and efficient performance.
With extensive experience in seamless steel tube production, Womic Steel has become a trusted manufacturer of heat exchanger tubes and boiler tubes for global industrial customers. The company supplies a wide range of tubing solutions including ASTM A179 heat exchanger tubes, ASTM A192 boiler tubes, ASTM A210 seamless tubes, ASTM A213 alloy steel tubes, and EN10216 P235GH pressure tubes.
Through advanced manufacturing technology, strict quality control procedures, and professional production teams, Womic Steel continues to support power plants, petrochemical facilities, and industrial heat exchanger manufacturers with reliable seamless tube solutions worldwide.
Womic Steel Boiler Tube Manufacturer – Contact Information
Womic Steel is a professional manufacturer specializing in seamless boiler tubes, cold drawn precision tubes, heat exchanger tubes, and U bend tubes for global industrial projects. With advanced production equipment and strict quality control systems, Womic Steel supplies high-performance tubing solutions that comply with major international standards including ASTM A192, ASTM A210, ASTM A213, EN10216 P235GH, and various alloy steel and stainless steel grades.
As an experienced boiler tube manufacturer, Womic Steel provides a wide range of products such as seamless boiler tubes, cold drawn tubes, alloy steel boiler tubes, stainless steel heat exchanger tubes, and custom fabricated U bend tubes. These products are widely used in power plants, industrial boilers, petrochemical facilities, refineries, and heat exchanger systems.
Womic Steel is capable of producing custom tube shapes including U tubes, serpentine tubes, multi-bend tubes, and coil tubes, supporting engineering companies and equipment manufacturers with reliable manufacturing capacity and consistent product quality.
With professional production teams and modern manufacturing lines, Womic Steel ensures stable quality, precise dimensions, and reliable delivery for every project.
