Heat Exchanger Tubes and U Bend Tubes: Manufacturing, Materials and Industrial Applications

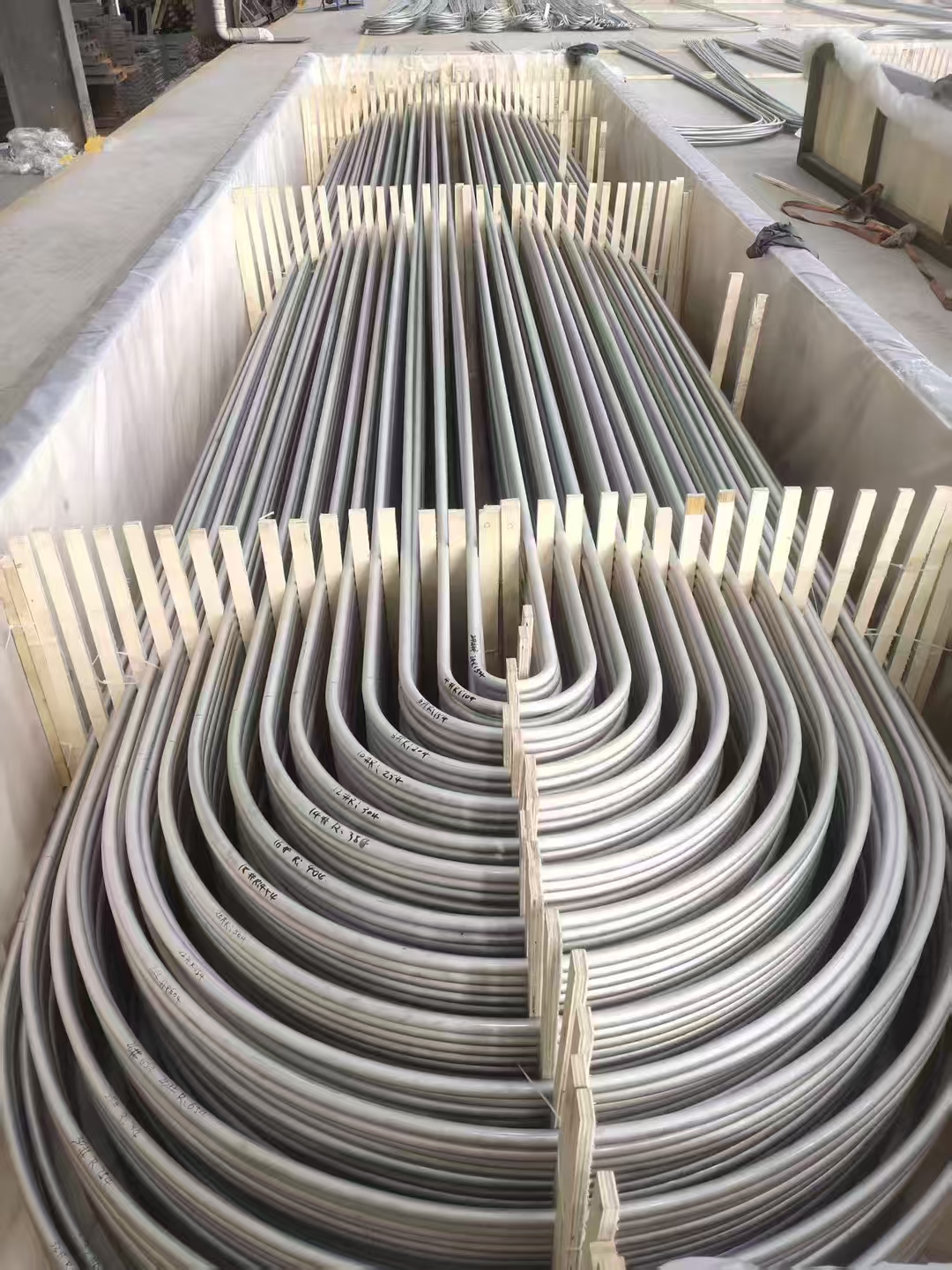

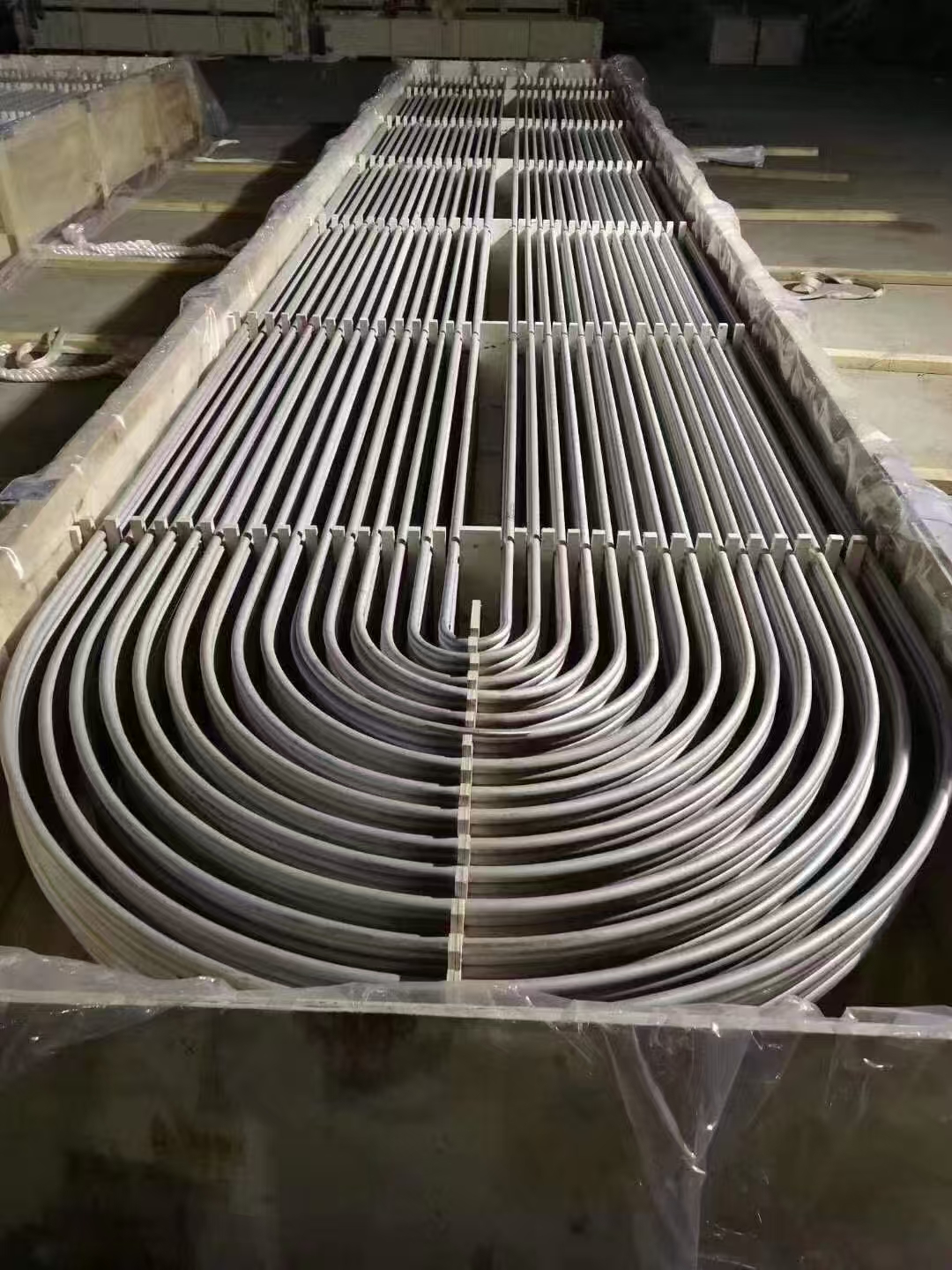

One of the most common types of heat exchanger tubing used in industrial equipment is the U bend tube. In shell and tube heat exchangers, U bend tubes allow both ends of the tube to be connected to the same tube sheet while the curved section forms a U-shaped loop. This design provides several advantages, including simplified equipment structure, reduced welding requirements, and improved accommodation of thermal expansion.

U bend tubes are especially common in power plant condensers, industrial boilers, refinery heat exchangers, and chemical processing systems. Because these tubes must be bent without damaging the material structure, the bending process requires precise control and specialized manufacturing equipment.

Womic Steel provides professional U bend tube fabrication services, producing high quality U bend heat exchanger tubes from carbon steel, alloy steel, and stainless steel materials. The company’s advanced tube bending equipment allows precise control of bending radius, dimensional accuracy, and surface quality.

The bending radius of U tubes is an important parameter in heat exchanger design. If the radius is too small, excessive stress may occur during bending, potentially damaging the tube wall. Therefore, industry standards usually specify minimum bending radius requirements.

A simplified example of typical U bend tube bending radius guidelines is shown below.

During the U bend manufacturing process, seamless tubes are first produced according to the required material specification. The tubes are then bent using specialized bending machines that gradually form the U shape without creating excessive strain in the tube wall. After bending, additional heat treatment may be performed to relieve stress and restore the material’s mechanical properties.

Because heat exchanger tubes often require precise dimensional control, cold drawn tubes are commonly used in their production. Cold drawing is a manufacturing process that improves dimensional accuracy, surface finish, and mechanical properties of seamless tubes. This process involves pulling the tube through a precision die, reducing the diameter and wall thickness while maintaining excellent surface quality.

Womic Steel operates advanced cold drawing production lines for manufacturing precision heat exchanger tubes and cold drawn boiler tubes. Through multiple cold drawing passes and controlled heat treatment processes, the company ensures uniform wall thickness, tight dimensional tolerances, and high quality surface finish.

Heat exchanger tubes are produced from a variety of materials depending on the operating conditions of the equipment. The most common categories include carbon steel heat exchanger tubes, alloy steel heat exchanger tubes, and stainless steel heat exchanger tubes.

Carbon steel tubes are widely used in heat exchanger applications where moderate temperatures and pressures are involved. These materials provide good mechanical strength and cost efficiency. Common carbon steel standards include ASTM A192 boiler tubes, ASTM A210 boiler tubes, and EN10216 P235GH seamless tubes.

Alloy steel tubes are used in heat exchangers operating under higher temperature conditions. Alloying elements such as chromium and molybdenum improve the steel’s resistance to creep and oxidation. Typical alloy steel heat exchanger tube materials include ASTM A213 T11, ASTM A213 T22, and EN10216 16Mo3.

Stainless steel heat exchanger tubes are used in environments where corrosion resistance is essential. Stainless steel materials are commonly used in chemical processing equipment, marine heat exchangers, and food processing systems. Popular stainless steel heat exchanger tube grades include ASTM A213 TP304, TP316L, and TP321.

The following table compares several commonly used heat exchanger tube materials.

Each of these materials provides different performance characteristics depending on the operating conditions of the heat exchanger system. Selecting the correct material is essential to ensure long-term equipment reliability and safe operation.

The production of high quality heat exchanger tubes requires strict quality inspection procedures. Because these tubes are used in critical industrial equipment, any defects in the material or manufacturing process could potentially cause system failure.

Typical inspection procedures for heat exchanger tubes include:

• Ultrasonic testing for internal defects
• Eddy current testing for surface flaws
• Hydrostatic testing to verify pressure resistance
• Dimensional inspection to confirm tolerance compliance

At Womic Steel, every batch of heat exchanger tubes and boiler tubes undergoes comprehensive inspection before shipment. The company maintains modern testing equipment and experienced quality control teams to ensure full compliance with international standards including ASTM A192, ASTM A210, ASTM A213, and EN10216 P235GH.

In addition to standard straight tubes and U bend tubes, many industrial heat exchanger systems require customized tube configurations. These configurations may include complex bending shapes designed to optimize heat transfer efficiency within compact equipment designs.

To meet these engineering requirements, Womic Steel also manufactures custom fabricated tube shapes, including:

• U bend tubes
• Serpentine tubes
• Multi bend tubes
• Coil tubes

These customized tubing solutions are widely used by heat exchanger manufacturers, power plant equipment suppliers, and industrial engineering companies. By providing both standard tubing materials and custom fabricated tube assemblies, Womic Steel supports a wide range of industrial heat transfer applications.
