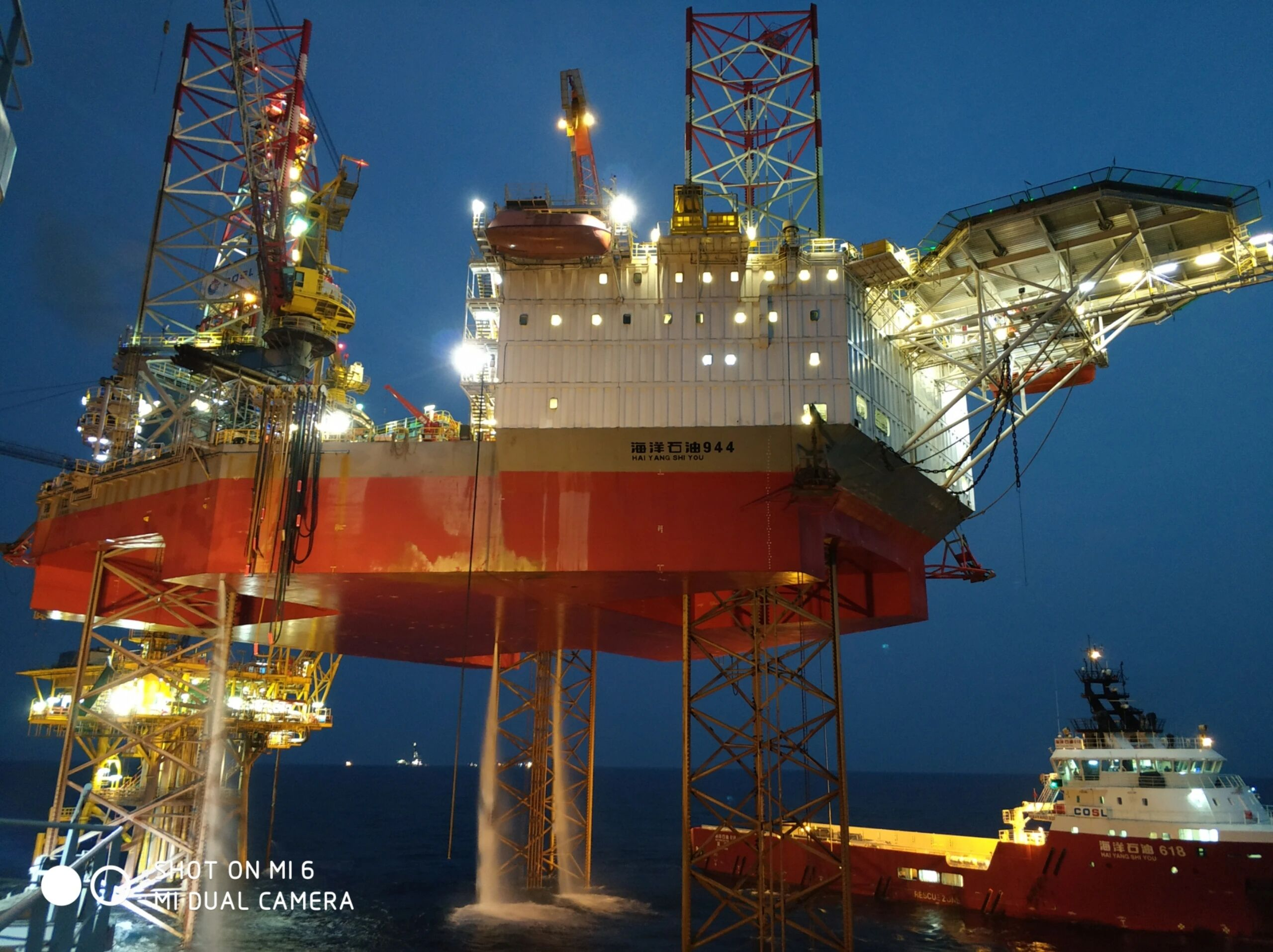

Seawater systems are the lifeblood of offshore platforms, FPSOs, and marine vessels. They provide cooling water, firefighting water, and process medium for various operations. However, seawater is also one of the most corrosive environments any material can face. The combination of high chloride content (approximately 19,000 ppm in seawater), dissolved oxygen, marine organisms, and varying temperatures creates a uniquely aggressive service condition that challenges even the most advanced materials.
Selecting the right material for seawater piping is not a simple decision. It requires balancing corrosion resistance, mechanical strength, fire safety, weight, cost, constructability, and long-term reliability. This article provides a comprehensive review of available materials for offshore seawater piping systems, including their advantages, limitations, and suitable applications.
01 Glass Reinforced Plastic (GRP) / Glass Fiber Reinforced Polymer (GFRP) Piping
Advantages
GRP and GFRP pipes have gained significant traction in offshore seawater systems due to their unique combination of properties .
Inherent Corrosion Resistance: As non-metallic materials, GRP pipes are inherently resistant to seawater corrosion. They can withstand acid, alkali, salt, seawater, untreated sewage, corrosive soil, groundwater, and numerous chemical fluids without degradation . This eliminates the need for the corrosion protection coatings and cathodic protection systems required for carbon steel.
Light Weight: With a specific gravity of approximately 1.8-1.9 g/cm³, GRP pipes are about one-quarter the weight of steel pipes (7.8 g/cm³) . This significantly reduces transportation costs, requires lighter lifting equipment, and simplifies installation. The weight reduction is particularly valuable for offshore platforms where topside weight is a critical design constraint.
Smooth Internal Surface: GRP pipes have an exceptionally smooth internal surface with a roughness coefficient as low as 0.0087, compared to 0.012 for steel and 0.013 for cast iron . This results in superior hydraulic flow characteristics, lower friction losses, and reduced pumping power requirements. Studies have shown that GRP pipes maintain their smooth internal surface even after 20 years of service .
Resistance to Marine Fouling: Special GRP formulations with "reef-like" structural inner liners (2-2.5mm thick) can provide auto-catalytic antibacterial properties that prevent the growth of algae and barnacles . Standard cement pipes and even ordinary GRP pipes typically begin growing marine organisms after approximately 3 months of seawater exposure at flow velocities below 2.0 m/s .
Long Service Life: GRP pipes offer design service lives of 50 years or more for underground applications . For seawater systems, properly formulated GRP can achieve up to 70 years of service life .
Cost-Effectiveness: Material costs for GRP are significantly lower than copper-nickel alloys. For L3 fire-rated GRP, the cost per meter is approximately 1/10 that of equivalent copper alloy piping. For JF fire-rated grades, the cost is approximately 1/2 to 1/3 of copper-nickel alloys.
Limitations and Challenges
Lower Mechanical Strength: As non-metallic materials, GRP pipes have lower impact resistance and are susceptible to damage from physical impact, dropping, or improper handling . This limits their application in areas subject to wave impact, dropped objects, or high mechanical loads.
Adhesive Joints with No NDT Capability: GRP pipes are typically joined using adhesive bonding (adhesive or cement). The quality of the joint is heavily dependent on the skill of the installer and environmental conditions. Once cured, adhesive joints cannot be inspected by non-destructive testing methods such as radiography or ultrasonic testing, making quality verification difficult .
Limited Fire Resistance: Standard GRP cannot meet the highest fire safety requirements. While L3 fire-rated (wet firefighting systems) and Jet Fire-rated (dry firefighting systems) grades exist per IMO A753, GRP cannot meet L1 fire rating requirements. This limits its use in critical fire protection systems.
Installation Sensitivity: GRP pipes require careful handling during storage and installation. Storage requirements include: stacking height limited to ≤2.0m, protection from UV exposure, avoidance of sharp objects, and strict temperature and humidity controls . Improper handling can cause hidden damage that may not be visible during inspection.
Limited Application Range: Non-metallic pipes are generally limited to low-pressure services and specific locations where passive protection is available. On offshore platforms, non-metallic materials are typically avoided on lower decks where they could be exposed to typhoon waves or dropped objects .
02 Coated Carbon Steel Piping
Advantages
Cost-Effectiveness: Fully and properly coated carbon steel is the most economical choice for seawater piping when corrosion protection can be reliably achieved.
High Mechanical Strength: Carbon steel provides excellent mechanical strength, impact resistance, and pressure-bearing capability.
Familiarity and Established Practices: Coated carbon steel is a well-understood material with established fabrication, welding, and installation procedures.
Limitations and Reliability Concerns
Coating Quality Dependency: The reliability of coated carbon steel is entirely dependent on the quality of the coating application. Poor coating quality can lead to catastrophic failure.
Epoxy Coating Issues: Poor-quality internal epoxy coating can develop pinhole leaks, exposing the carbon steel substrate to seawater and accelerating localized corrosion. Even small pinholes can concentrate corrosion, leading to rapid perforation.
Polyethylene Coating Issues: PE coatings typically have a thickness of approximately 1mm. Poor quality PE coatings can delaminate over large areas, creating corrosion paths and leading to extensive damage. Furthermore, delaminated coating fragments can travel downstream and cause blockages in pumps, heat exchangers, and other sensitive equipment.
03 Stainless Steel Piping
Critical Requirement: PREN ≥ 40
For stainless steel to reliably resist seawater corrosion, the Pitting Resistance Equivalent Number (PREN) must be at least 40 . PREN is calculated using the formula:
PREN = %Cr + 3.3 × %Mo + 16 × %N
Alloys with PREN values above 40 are considered suitable for seawater applications . Values between 32 and 40 may be adequate for brackish water but are marginal for full seawater service .
Recommended Grades
UNS S31254 (6Mo Super Austenitic Stainless Steel): Also known as Alloy 254 or 254 SMO, this is a 6% molybdenum super austenitic stainless steel with PREN ≥ 42.5 . It is the most commonly specified stainless steel for seawater piping due to its excellent combination of corrosion resistance, strength, and cost-effectiveness.
Key Properties of UNS S31254:
| Property | Value | Source |
| Chromium (Cr) | 19.5-20.5% | |
| Molybdenum (Mo) | 6.0-7.0% | |
| Nitrogen (N) | 0.18-0.25% | |
| Nickel (Ni) | 17.5-18.5% | |
| Copper (Cu) | 0.50-1.00% | |
| Yield Strength (min) | 310 MPa | |
| Tensile Strength (min) | 650 MPa | |
| PREN | ≥ 42.5 | |
| Critical Pitting Temperature (CPT) | ≥ 60°C | |
| Service Temperature Range | -196°C to 300°C |
UNS S32750 / S32760 (Super Duplex Stainless Steel): These super duplex stainless steels offer excellent seawater corrosion resistance with higher strength than austenitic grades. However, they require careful welding procedure control to avoid precipitation of harmful intermetallic phases. Both grades can achieve PREN values above 40.
Critical Limitation: Weld Quality
The most critical limitation for stainless steel seawater piping is weld quality. Solution-annealed stainless steel has a microstructure that guarantees seawater corrosion resistance. However, un-solution-treated weld metal and heat-affected zones (HAZ) can contain harmful intermetallic phases or excessive ferrite, becoming preferential sites for seawater corrosion .
Key welding requirements:
l Strict adherence to approved welding procedure specifications
l Control of heat input
l Control of interpass temperature
l Use of matching or overmatching filler metals
l Post-weld solution treatment for critical services
l Careful selection of shielding gas and purging gas
Additionally, different microstructures within the weld zone can have different electrochemical potentials, creating galvanic couples that accelerate localized corrosion.
04 Non-Ferrous Metal Piping (Copper-Nickel Alloys)
Advantages
Inherent Seawater Resistance: Copper-nickel alloys are inherently resistant to seawater corrosion due to the formation of a protective surface film. They do not rely on coatings or cathodic protection.
Proven Track Record: Cu-Ni alloys have been used in seawater systems for decades with excellent reliability. Their performance is well-understood and documented.
Good Biofouling Resistance: Copper ions released from the surface provide natural anti-biofouling properties, reducing marine organism attachment.
Limitations
High Material Cost: Copper-nickel alloys are expensive. The cost per meter is approximately 10 times that of GRP (for L3 grade) and 2-3 times that of JF-grade GRP. This significantly increases initial capital expenditure.
High Welding and Fabrication Costs: Cu-Ni alloys require specialized welding procedures, skilled welders, and careful joint preparation, increasing fabrication costs.
Strategic Metal Supply: Copper and nickel are listed as strategic minerals in many countries. The 24 strategic minerals include energy minerals (petroleum, natural gas, coal, uranium), metal minerals (iron, chromium, copper, aluminum, gold, nickel, tungsten, tin, molybdenum, antimony, cobalt, lithium, rare earths, zirconium), and non-metallic minerals (phosphorus, potassium salt, graphite, fluorite). Price volatility due to supply chain constraints and geopolitical factors makes cost forecasting difficult.
Welding Quality Requirements: Cu-Ni alloy welding requires strict control of heat input, filler metal selection, and shielding gas to maintain corrosion resistance in the weld zone.
05 Titanium Alloy Piping
Emerging Advantages
Exceptional Corrosion Resistance: Titanium alloys offer superior corrosion resistance in seawater, outperforming aluminum alloys, stainless steels, and nickel-based alloys . They are resistant to pitting, crevice corrosion, and stress corrosion cracking in chloride environments.
Light Weight: With a specific gravity of approximately 4.5 g/cm³, titanium is about 60% the weight of steel, providing weight savings while maintaining high strength.
High Strength: Titanium alloys such as Ti-6Al-4V provide excellent strength-to-weight ratios, suitable for high-pressure and high-velocity seawater applications.
Stable Cost Trend: Titanium costs have become more stable and competitive as China has established full industrial chain capabilities from ore processing to finished products . This trend is making titanium increasingly cost-effective for offshore applications.
Proven Applications: Titanium has been successfully used in seawater desalination plants, offshore oil drilling risers, condensers, heat exchangers, pumps, and valves .
Resistance to Erosion-Corrosion: Titanium offers excellent resistance to erosion-corrosion from high-velocity seawater, making it suitable for pump impellers and heat exchanger tubes.
Technical Challenges to Address
Galvanic Corrosion: Titanium has a high electrochemical potential. When coupled with less noble metals (such as carbon steel, aluminum, or copper alloys) in seawater, it can cause galvanic corrosion of the less noble material. Careful design with insulation or isolation is required .
Biofouling Characteristics: Titanium's biofouling behavior requires further research. While the material itself is corrosion-resistant, marine organism attachment and its effects on heat transfer and flow characteristics need to be addressed through design and operational measures.
Welding Requirements: Titanium welding requires strict control of shielding gas and atmospheric contamination. Contamination can lead to embrittlement and loss of corrosion resistance.
06 Composite and Metallurgical Clad Piping
Composite Materials
Composite pipes (combining non-metallic liners with metal outer layers) offer a compromise between corrosion resistance and mechanical strength. However, they present complex connection challenges that are not easily resolved.
Metallurgical Clad Piping (Mechanical Clad / Metallurgical Bonded)
Metallurgical clad pipes consist of a carbon steel outer layer (providing mechanical strength) and a corrosion-resistant alloy (CRA) inner layer (providing seawater corrosion resistance).
Key Challenges:
Branch Connection Integrity: For branch connections on clad pipe, maintaining the integrity of the CRA layer requires special attention. Proper welding procedures, insert rings, and qualified welders are essential to prevent corrosion at branch connections.
Ring Joint Flange (RTJ) Considerations: For RTJ connections, the CRA layer must be properly terminated and protected to prevent crevice corrosion at the joint interface.
Size Limitations: Metallurgical clad pipes are currently available primarily for sizes NPS 4 (DN100) and larger. For smaller sizes, material selection remains a challenge, as clad pipe production is not economically viable for small diameters.
Weld Bevel Design: Weld bevel design must account for CRA layer thickness and proper transition between CRA and carbon steel layers.
Weld Alignment: Misalignment during welding can reduce effective CRA layer thickness at the joint, creating a corrosion vulnerability.
07 Material Selection Summary and Recommendations
Selection Guidelines
| Application | Recommended Material | Key Considerations |
| Low-pressure seawater (≤1.0 MPa), protected location, non-critical systems | GRP/GFRP (L3 or JF rated as required) | Cost-effective, corrosion-resistant, limited fire rating |
| Moderate pressure, general seawater systems on topsides | UNS S31254 (6Mo) or Super Duplex (UNS S32750) | PREN ≥ 40, excellent corrosion resistance, weld quality critical |
| High-pressure seawater systems | UNS S31254 with proper welding | PREN ≥ 43, requires strict welding control |
| Firewater systems requiring L1 fire rating | Cu-Ni alloy or Ti alloy | High reliability, strategic metal concerns |
| High-velocity or high-erosion seawater services | Ti Alloy (e.g., Ti-6Al-4V) | Exceptional erosion-corrosion resistance |
| Large-diameter seawater piping (≥ NPS 4) with CRA requirement | Metallurgical Clad Pipe | Cost-effective CRA solution for large bores |
| Small-diameter seawater piping (< NPS 4) requiring CRA | Solid UNS S31254 or Ti Alloy | Clad pipe not available for small sizes |
| Firewater systems with GRP | GRP with IMO A753 L3 (wet) or Jet Fire (dry) rating | GRP cannot meet L1 rating |
Key Technical Requirements by Material
For GRP Piping:
l Strict adherence to manufacturer storage and installation procedures
l Proper adhesive joint preparation and curing
l Protection from physical damage
l Limited to low-pressure and non-critical services
l Cannot meet L1 fire rating
For Stainless Steel Piping:
l PREN ≥ 40 required
l Use 6Mo super austenitic (UNS S31254) or super duplex (UNS S32750/32760)
l Strict welding procedure control
l Post-weld solution treatment for critical services
l Control of heat input and interpass temperature
For Cu-Ni Piping:
l Proven reliability but high cost
l Strategic metal considerations
l Skilled welding personnel required
l Cost approximately 10× GRP
For Ti Alloy Piping:
l Exceptional seawater corrosion resistance
l Cost becoming more competitive
l Galvanic corrosion protection required
l Proper welding procedure essential
08 Future Trends and Emerging Solutions
Titanium Cost Reduction
As China has established a complete titanium industry chain from ore to finished products, titanium costs have become more stable and competitive . This trend is expected to continue, making titanium increasingly attractive for seawater piping applications.
Advanced Composite Materials
Research continues on improved composite materials with better fire resistance, impact resistance, and joining methods. These developments may expand the application range of non-metallic materials in offshore environments.
Improved Quality Control
Enhanced inspection and quality control methods for adhesive joints in non-metallic piping could address the current limitation of non-destructive testing for GRP joints.
Application of Digital Twin Technology
Digital twin technology can be applied to monitor the condition of seawater piping systems, tracking corrosion rates, wall thickness loss, and coating condition to optimize maintenance scheduling and reduce unplanned downtime.
09 References
l GRP Pipe Installation Technology, Science and Technology Wind, 2018(07)
l GRP Pipe Seawater Transport Test Results, Beijing Institute of Technology, 2013
l S31254 Alloy Composition and Properties, Shanghai Nonferrous Metals Network, 2025
l Titanium Alloy Applications in Marine Engineering, Cnfeol, 2025
l PREN Definition and Application, GKD Group, 2025
l Non-Metallic Piping Construction Methods for Offshore Platforms, Offshore Engineering, 2025
l Titanium Alloy Pipe Properties, Wuhu Industry Innovation Center, 2025
l Material Selection for Offshore Platform Seawater Systems, Napstic, 2024
