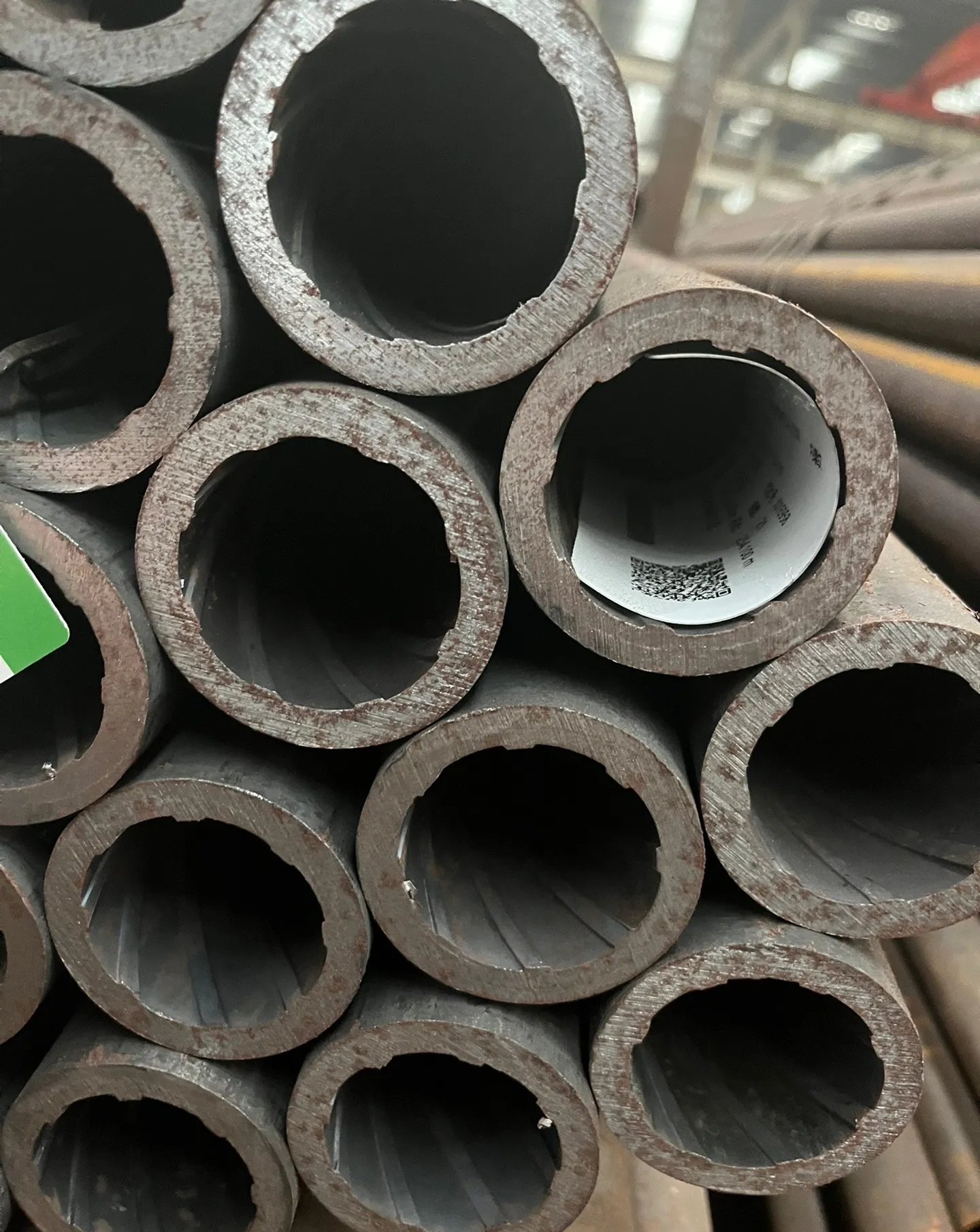

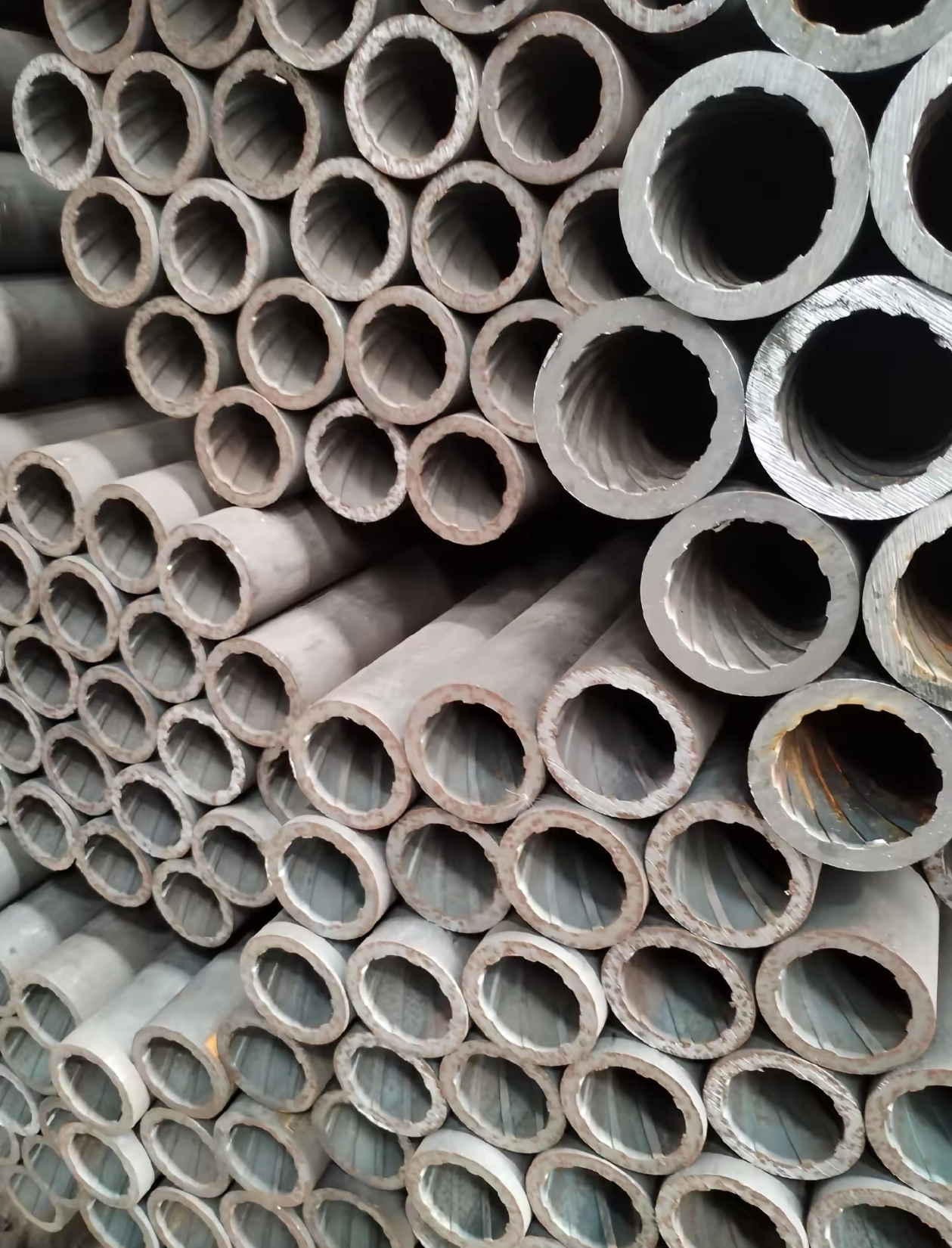

Product: SA210 Grade A-1 (ASTM A210/ASME SA210) seamless medium-carbon steel multi-lead rifled tube – internally ribbed with spiral threads on the inner surface. Produced by cold drawing over a specially designed rifled plug. Designed for high-pressure boiler water walls (supercritical and ultra-supercritical units above 300,000 KW). The internal rifling induces centrifugal forces that separate water from steam, forcing liquid toward the tube wall to maintain nucleate boiling and prevent steam film formation.
Keywords: SA210 rifled tube, SA210 Grade A-1 seamless tube, multi-lead rifled boiler tube, internally ribbed tube, cold drawn rifled tube, water wall tube, spiral ribbed tube, ASME SA210 boiler tube, SA210 Grade A-1 cold drawn seamless tube, high-efficiency boiler tube, supercritical boiler water wall, rifled tube manufacturer, rifled tube supplier China
Note on terminology: “Rifled tube” and “internally ribbed tube” refer to the same product. Both terms describe seamless tubes with spiral ribs formed on the inner surface by cold drawing over a grooved plug. The multi-lead designation indicates multiple parallel helical ribs (typically 4 or 6 starts) running along the tube length.
1. Base Material: SA210 Grade A-1 Seamless Medium-Carbon Steel
ASTM A210/ASME SA210 is the standard specification for seamless medium-carbon steel boiler and superheater tubes. The specification covers minimum-wall-thickness steel tubes for boiler flues, including safe ends, arch tubes, stay tubes, and superheater tubes. SA210 Grade A-1 is the most widely used grade for general boiler tube service, offering an excellent balance of strength, ductility, and cost.
For higher pressure and higher temperature service, SA210 Grade C (higher carbon content, higher strength) is also available. However, Grade A-1 remains the industry standard for water wall applications requiring good formability for cold bending and reliable performance at metal temperatures up to 425°C (800°F).
1.1 Chemical Composition (ASTM A210 Grade A-1)
| Element | Requirement (max/min) | Typical (Womic Steel) |
| Carbon (C) | ≤0.27% | 0.22-0.25% |
| Manganese (Mn) | ≤0.93% | 0.45-0.60% |
| Silicon (Si) | ≥0.10% | 0.18-0.33% |
| Phosphorus (P) | ≤0.035% | ≤0.015% |
| Sulfur (S) | ≤0.035% | ≤0.010% |
Table source: ASTM A210 / ASME SA210 specification
1.2 Mechanical Properties
| Property | Grade A-1 Requirement | Typical (Womic Steel) |
| Yield Strength (min) | 255 MPa (37,000 psi) | 280-320 MPa |
| Tensile Strength (min) | 415 MPa (60,000 psi) | 450-520 MPa |
| Elongation (min) | 30% (longitudinal) | 32-36% |
| Hardness (max) | 79 HRB / 143 HB | 70-75 HRB |
*Grade C (0.24-0.31% C, YS≥275 MPa, TS≥485 MPa) offers 5-10% higher strength but lower ductility; recommended for superheater tubes and higher-temperature service.*
1.3 Physical Properties
| Property | Value |
| Density | 7.85 g/cm³ |
| Max service temperature | 425°C (800°F) |
| Modulus of elasticity | 200 GPa |
| Thermal conductivity (100°C) | ~48 W/m·K |
| Coefficient of expansion | 12.2 μm/m·K (20-200°C) |
1.4 Applicable Standards
| Standard | Description |
| ASTM A210 / A210M | Standard Specification for Seamless Medium-Carbon Steel Boiler and Superheater Tubes |
| ASME SA210 | ASME version (identical requirements) |
| GB/T 20409-2018 | Chinese national standard for rifled tubes (high-pressure boiler seamless tubes) |
| EN 10216-2 (comparable) | European standard for seamless steel tubes for pressure purposes |
2. Multi-Lead Rifled Tube: Geometric Parameters
Multi-lead rifled (MLR) tubes are classified into two standard configurations, each designed for specific operating conditions:
| Parameter | Type A (Standard) | Type B / Optimized |
| Helix angle | 30° | 30°+ (up to 40°+) |
| Heat transfer enhancement | 30% over smooth tube | 50%+ over smooth tube (cumulative) |
| Number of leads (rib starts) | 4 or 6 | 4 or 6 |
| Rib geometry | Rectangular profile | Optimized (rounded or notched) |
Standard multi-lead rifled tubes are grouped into two types (Type A and Type B) with a 30-degree helix angle. Optimized multi-lead rifled tubes can have a helix angle up to 40°+, offering an additional 20% improvement in thermal efficiency over standard rifled tubes.
Research data: a rifle tube with 4 ribs, outer diameter 25mm, rib height 0.68mm, rib width 9.25mm, and helix angle 60°, has been experimentally validated. Numerical studies confirm that optimized rifled tube designs with rectangular ribs (height 0.775mm, helix angles 30° and 58°) enhance secondary helical flow near the tube wall, significantly improving heat transfer efficiency.
Surface area increase: the internal surface area per unit length of internally ribbed tubes is approximately 1.5 to 2.4 times that of smooth tubes of the same outer diameter. The cold drawing process forms the inner wall into a spiral ribbed structure with precise geometric dimensions, dramatically increasing the tube’s effective heat transfer area compared to bare tubes.
2.1 Common Specifications (From Actual Production)
| OD × WT (mm) | Typical Use |
| Φ28.6 × 6.2 | Water wall panels, medium pressure |
| Φ31.8 × 5.5 | Water wall panels |
| Φ38.1 × 7.5 | Standard water wall tube |
| Φ63.5 × 7.5 | Large boiler water wall |
| Φ66.7 × 8 | Super/ultra-supercritical boilers |
*Common specifications for SA210 Grade A-1 and Grade C multi-lead rifled tubes*
2.2 Manufacturing Tolerances (Cold Drawn)
| Parameter | Tolerance |
| Outer diameter (OD) | ±0.10 mm for OD <25.4 mm; ±0.15 mm for OD 25.4–38.1 mm |
| Wall thickness | -0% / +20% for cold drawn |
| Length | +20/-0 mm |
| Straightness | ≤1.5 mm per meter |
Source: ASTM A210 cold drawn tube tolerances
3. Manufacturing Process – Cold Drawing with Rifled Plug
Womic Steel produces SA210 Grade A-1 multi-lead rifled seamless boiler tubes using an optimized cold drawing process with a rotating rifled plug. The process begins with hot-rolled seamless tube feedstock, which serves as the starting material for subsequent cold drawing operations. After initial cold drawing passes with a smooth plug to achieve rough dimensions, the final drawing operation utilizes a multi-rifled plug.
A specially designed plug (externally grooved in a helical pattern) is inserted into the steel tube and attached to a rotating mandrel. The tube is drawn through a reduction die, and as the tube is drawn forward, the plug rotates, forming multiple continuous helical ribs on the inner surface. The plug body features external grooves spaced equally about its central axis, with external lands alternating between grooves. When the tube is drawn over this grooved plug, the lands impress a controlled spiral pattern—typically 4 or 6 evenly spaced parallel ribs—onto the tube’s inner wall, while the grooves allow displaced metal to flow.
Advanced numerical simulation (Finite Element Method, FEM) is used to optimize die geometry before production runs, minimizing seizure and tube wall defects. Key benefits of this process include stable rib formation, high productivity, extended tool life, consistent rib geometry, and smooth inner surface finish. The final dimension achieved is cold drawn to precise OD and WT, fully heat treated (normalized), and 100% NDT inspected.
4. Heat Transfer Enhancement Mechanism – Why Rifled Tubes Work
In smooth boiler tubes, steam bubbles coalesce on the inner surface, forming a continuous steam film. This steam film is a poor heat conductor, leading to a sharp reduction in heat transfer efficiency and potentially causing tube overheating and failure (departure from nucleate boiling, or DNB).
Rifled tubes solve this problem by inducing centrifugal forces in the flow, pushing liquid water toward the tube wall while steam moves toward the center. This mechanism provides four critical benefits:
Suppression of DNB — the water layer on the wall ensures continuous nucleate boiling even at high heat fluxes.
Delayed dryout — in subcritical conditions, rifling extends the dryout delay, protecting tube integrity.
Higher critical heat flux — nucleate boiling is maintained at much higher heat loads.
Heat transfer enhancement — even at low mass flux, the rifled tube significantly improves heat transfer while reducing the mass flow required for adequate cooling.
Numerical CFD studies show that optimizing geometric parameters—including number of rifling starts, rib height, and the pitch length of rifling—can further increase heat transfer beyond basic rifled designs. The swirl flow generated by the helical ribs creates a thin liquid film on the wall, dramatically increasing the heat transfer coefficient compared to smooth tubes.
5. Quality Control & Testing
Every SA210 A-1 rifled tube batch undergoes rigorous testing per standard specifications:
| Test | Method | Scope |
| Chemical analysis | OES spectrometer | Per heat (each batch) |
| Tensile test | ASTM A370 | Per heat (per batch) |
| Hardness test | HRB / HB | Per batch |
| Hydrostatic test | Pressure ≥1.5× design pressure | Each tube |
| Eddy current / UT (NDT) | Automatic on line or off line | 100% inspection |
| Flaring & flattening | ASTM A450 | Per batch (for ductility verification) |
| Positive Material Identification (PMI) | XRF (optional) | Each tube or as required |
| Dimensional inspection | Laser / calipers / optical comparator | 100% (OD, WT, rib geometry, helix angle) |
Rib geometry measurement: The number of ribs, rib height, rib width, pitch length, and helix angle are verified using precision optical comparators or profilometers. These parameters must be consistent across the full tube length to ensure uniform heat transfer performance.
Certificates: EN 10204 Type 3.1 (standard), Type 3.2 (with third party witness). Third party inspection by SGS, BV, DNV, TÜV available.
6. Applications – Where SA210 A-1 Rifled Tubes Excel
Multi-lead rifled seamless tubes are primarily used in the water walls of large-capacity subcritical and ultra-supercritical power plant boilers (typically units rated at 300,000 KW and above). China alone consumes approximately 25,000–30,000 tons of rifled tubes annually for this purpose. Typical material grades include SA210 Grade A-1, SA210 Grade C, and SA213 T2.
Specific applications include:
l Water wall panels in supercritical boilers
l Super/ultra-supercritical water wall panels over 300,000 KW
l Evaporative heating surfaces
l Lower furnace regions with the highest heat flux
l Chemical and electricity industries requiring high-pressure heat exchange
Source: Multi-lead rifled seamless steel tube technical specifications
7. Grade Comparison – When to Use SA210 A-1 vs. SA210 C vs. Other Materials
| Grade / Material | Carbon Content | Yield Strength | Key Characteristics | Recommended Use |
| SA210 A-1 | ≤0.27% | min 255 MPa | Best formability for cold bending; moderate strength; most economical | General boiler water walls, lower heat flux regions |
| SA210 C | ≤0.35% | min 275 MPa | Higher strength; 5-10% higher yield than A-1; thinner walls possible | Superheater tubes; higher temperature zones; water walls with higher pressure |
| SA213 T2 | 0.10-0.20% | min 205 MPa | Cr-Mo (0.5%Cr, 0.5%Mo); improved high-temperature creep resistance | Higher temperature boiler tubes; refineries |
| SA213 T12 | 0.05-0.15% | min 220 MPa | 1%Cr-0.5%Mo alloy; excellent creep strength at elevated temperatures | Supercritical boiler walls; high temperature headers |
| SA209 T1a | 0.10-0.20% | min 205 MPa | Cr-Mo (0.5%Cr, 0.5%Mo); similar to T2 | Light-wall tubes; high pressure applications |
Selecting the correct grade is critical — using a low-alloy grade (T2/T12) unnecessarily increases material costs, while using a carbon steel grade (A-1) in excessively high temperature zones risks tube failure due to creep damage.*
8. Frequently Asked Questions (FAQ)
Q1: What is the heat transfer advantage over smooth tubes?
A: Standard multi-lead rifled tubes (30-degree helix angle) improve thermal efficiency by 30% compared to smooth tubes. Optimized rifled tubes (40-degree+ helix angle) can deliver a further 20% improvement, for a cumulative efficiency gain of 50% or more..
Q2: What materials can be used for rifled tubes?
A: Common materials include ASME SA210 Grade A-1, SA210 Grade C, and SA213 T2. While SA213 T2 (Cr-Mo alloy) can also be rifled, it is significantly more expensive and is typically reserved for higher temperature zones. Womic Steel can also produce rifled tubes in SA213 T12, SA213 T22, and other custom grades upon customer specification.
Q3: How do you verify inner rib geometry?
A: The number of ribs, rib height, rib width, pitch length, and helix angle are verified using precision optical comparators or profilometers. Full reports are available for each batch.
Q4: Are rifled tubes available in custom dimensions?
A: Yes. We can produce rifled tubes to customer specifications, including custom OD, wall thickness, number of rib starts (4 or 6), helix angle, and rib geometry. Please provide your requirements for a customized solution.
Q5: What surface finishes are available?
A: Standard finish is annealed and pickled (AP) for clean outer and inner surfaces. Bright annealed (BA) or polished finishes available upon request.
Q6: What certifications do you provide?
A: Mill Test Certificate per EN 10204 Type 3.1 (standard), Type 3.2 with third party witness (SGS, BV, DNV, TÜV) available. Full traceability from heat number to each finished tube.
Q7: Do you offer third party inspection?
A: Yes. We facilitate inspections by SGS, BV, DNV, TÜV, ABS, LR. Witnessed PMI, dimensional inspection, and mechanical testing available upon request.
Q8: What is the typical lead time for SA210 A-1 rifled tubes?
A: For standard specifications (Φ28.6×6.2, Φ38.1×7.5, etc.), lead time is approximately 30–45 days from order confirmation. Custom specifications require 45–60 days.
Q9: What is the maximum helix angle achievable for SA210 A-1 rifled tubes?
A: Standard helix angles range from 30° to 60°, depending on the specific application and geometric constraints. Optimized designs with helix angles up to 60° have been experimentally validated and are suitable for critical high-performance boiler water walls.
Q10: Can you supply rifled tubes in U bent configurations?
A: Yes, we offer cold bending of rifled tubes with mandrels, followed by full heat treatment and 100% NDT of the bend area. Please request a separate U bend quotation.
Q11: Can you supply rifled tubes with NACE MR0175 certification?
A: SA210 Grade A-1 carbon steel is not typically specified for sour service (H₂S). For applications requiring both rifling and sour service resistance, we recommend alloy grades (e.g., SA213 T2) with optional NACE qualification. Please consult with our engineering team for specific requirements.
Q12: What is the minimum wall thickness for rifled tube production?
A: The minimum producible wall thickness depends on the outer diameter and the specific rib geometry. For standard production, wall thickness ≥4.0mm is recommended for reliable rifling. Please contact us to discuss your specific size requirements.
Q13: Does the cold drawing process affect the tube’s mechanical properties?
A: The cold drawing process work-hardens the material, increasing strength. However, final solution annealing (normalizing) restores ductility and ensures mechanical properties meet ASTM A210 Grade A-1 requirements. Normalizing is performed after the final cold drawing pass.
Q14: Can you produce rifled tubes with 6-lead (6-start) ribs?
A: Yes. Multi-lead tubes are available with either 4-start or 6-start configurations. The number of leads is selected based on the required heat transfer performance and tube diameter. Please specify your requirement at the time of inquiry.
Q15: Can SA210 Grade A-1 rifled tubes be supplied as U bends?
A: Yes, we offer cold bending of rifled tubes with internal mandrels to protect the rib geometry. After bending, full stress relief heat treatment and 100% NDT of the bend radius are performed. U-bend availability depends on the final dimensions; please contact us for feasibility.
Q16: Are SA210 Grade A-1 rifled tubes available in bright annealed (BA) finish?
A: Yes, we can supply rifled tubes with a bright annealed (BA) finish. This requires a protective atmosphere during final heat treatment (e.g., hydrogen or dissociated ammonia) to prevent oxidation. BA finish is ideal for high-purity and clean service applications, though it is more expensive than the standard annealed and pickled (AP) finish.
