1. Manufacturing Process

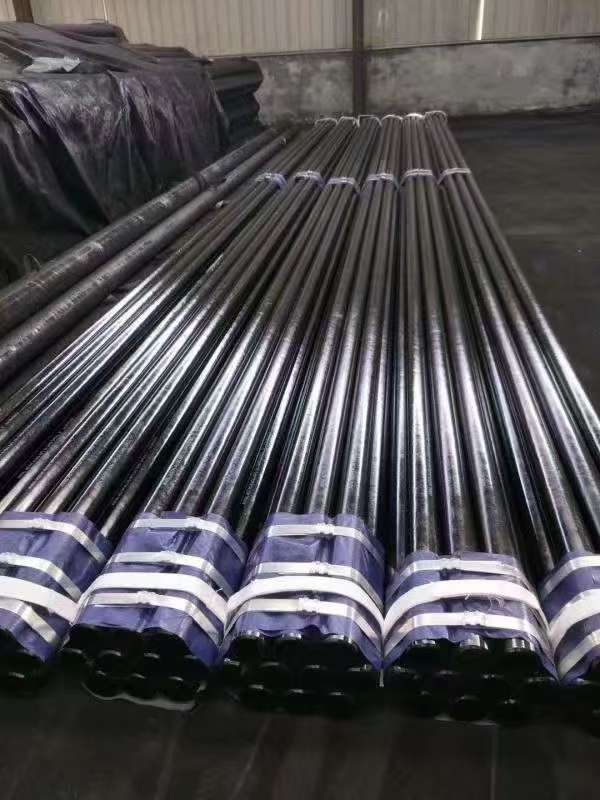

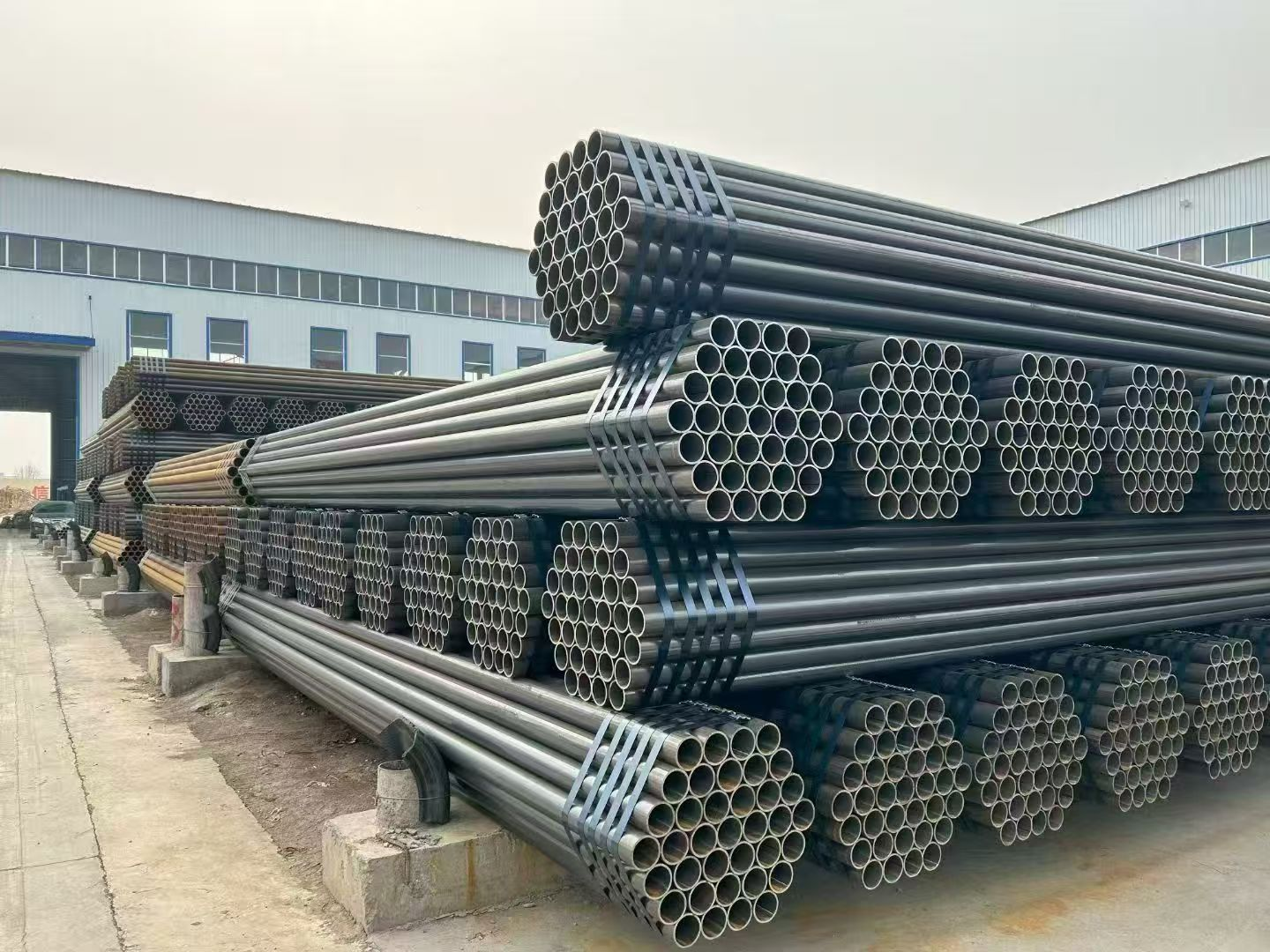

Seamless Steel Pipe

Seamless pipes are manufactured from solid steel billets. The billet is heated and pierced to create a hollow tube. The tube is then rolled or drawn to final dimensions using hot rolling or cold drawing techniques.

Key steps:

l Steel billet heating and inspection

l Billet piercing to form hollow shell

l Hot rolling or extrusion

l Cold drawing (optional for precision tubes)

l Heat treatment, straightening, and finishing



Seamless pipes have no weld seam, providing uniform mechanical properties along the entire circumference.

Welded Steel Pipe

Welded pipes are made by rolling steel plates or strips into a cylindrical shape, then welding the seam using Electric Resistance Welding (ERW), Longitudinal Welding, or Spiral Welding.

Key steps:

l Steel plate/strip forming

l Edge preparation and welding

l Heat treatment or stress relief (optional)

l Straightening, sizing, and finishing



Although welded pipes contain a seam, advanced techniques like cold drawing over mandrel (DOM) and precision finishing minimize seam visibility and improve structural uniformity.



2. Mechanical Properties

Property	Seamless Pipe	Welded Pipe	Notes
Yield Strength	High	Moderate to High	Seamless pipes handle higher pressures due to uniform structure
Tensile Strength	High	Moderate	Seamless pipes have uniform grain flow along circumference
Pressure Resistance	Very High	Moderate to High	Seamless pipes preferred for high-pressure systems
Toughness	Excellent	Good	Weld seam may slightly reduce toughness in welded pipes
Fatigue Resistance	Excellent	Good	Seamless pipes withstand cyclic loading better

Seamless steel pipes are generally stronger and more durable than welded pipes. Welded pipes are often more economical and still suitable for many industrial and structural applications.



3. Dimensional Accuracy and Tolerances

Seamless pipes, especially cold drawn seamless pipes, offer tight dimensional tolerances, low ovality, and high straightness. This makes them ideal for precision mechanical systems, high-pressure pipelines, and boiler tubes.

Parameter	Seamless Pipe	Welded Pipe	Notes
Outer Diameter Tolerance	±0.05–0.10 mm	±0.1–0.25 mm	Seamless pipes have superior precision
Ovality	≤50% of OD tolerance	≤75% of OD tolerance	Weld seam may affect roundness
Straightness	≤1/1000	≤2/1000	Seamless pipes can be drawn to precise straightness
Wall Thickness	±7.5%	±10%	Seamless pipes provide uniform wall thickness



---



4. Standard Material Grades

Seamless and welded steel pipes are available in a variety of material grades to suit different applications.

Carbon Steel

Standard	Grade	Application
ASTM A106	B	High temperature, boilers, pipelines
ASTM A53	B	General purpose pipelines
EN10216	P235GH	European high-pressure pipelines

Alloy Steel

Standard	Grade	Application
ASTM A335	P91, P22	Power plant boilers, high-temperature pipelines
DIN17175	16Mo3, 15Mo3	Heat exchangers, industrial boilers

Stainless Steel

Standard	Grade	Application
ASTM A312	304, 316, 321	Corrosive environments, heat exchangers
EN10216	1.4301, 1.4404	Industrial pipelines, food and chemical industry



---



5. Applications

Seamless Steel Pipe Applications

l Boiler tubes and high-pressure pipelines

l Heat exchanger tubes

l Hydraulic and precision mechanical systems

l Petrochemical pipelines and refineries

l Critical power plant and energy systems



Welded Steel Pipe Applications

l Structural frameworks

l Low to medium pressure pipelines

l Water, gas, and sewage pipelines

l Scaffolding and mechanical supports

l General industrial pipelines

6. Advantages and Limitations

Seamless Pipe

Advantages:

l Superior strength and pressure resistance

l Uniform mechanical properties

l High fatigue resistance

l Tight dimensional tolerances



Limitations:

l Higher cost

l Limited diameter range for very large sizes

Welded Pipe

Advantages:

l Lower cost

l Large diameter availability

l Easier fabrication for custom lengths



Limitations:

Slightly weaker at weld seam

Less uniform mechanical properties

7. Choosing the Right Pipe for Your Project

l High-pressure, high-temperature systems: Prefer seamless pipes

l Structural applications or low/medium pressure pipelines: Welded pipes are economical

l Precision mechanical or hydraulic systems: Cold drawn seamless pipes ensure tight tolerances and low ovality

Womic Steel provides both seamless and welded steel pipes, helping procurement managers, engineers, and project contractors select the right material grade, diameter, wall thickness, and length according to project requirements.
