Large Capacity Mining Shovel Buckets — 3–60m³ for Electric Rope Shovels & Hydraulic Excavators

Short Description:

Womic Steel manufactures heavy-duty Electric Mining Shovel Buckets and Excavator Buckets in capacities ranging from 3m³ to 60m³, using premium wear-resistant steel grades such as Hardox 400, Hardox 500, NM400, and NM500. Our mining buckets are engineered for high-impact rock loading, abrasive ore materials, and continuous open-pit mining operations. We offer fully customized OEM solutions based on equipment model, material density, and working conditions, with strict quality control from raw material inspection to final assembly. All buckets are designed to maximize loading efficiency, extend service life, and reduce maintenance costs per ton.

Send email to us Product Specifications

Product Detail

Product Tags

Large Capacity Mining Bucket Manufacturer — Womic Steel

Womic Steel is a professional and experienced manufacturer of **electric mining shovel buckets and large capacity excavator buckets**, specifically engineered for heavy-duty mining operations and high-efficiency bulk material handling. Our mining buckets are built to withstand some of the most extreme working conditions in the world, including high-impact rock loading, highly abrasive ore materials, continuous day-and-night mining operations, and severe temperature variations commonly found in open-pit mines across Australia, Canada, Chile, Russia, and Africa. With advanced CNC fabrication technology, premium wear-resistant steel plates sourced from leading mills, and a strict ISO-compliant quality control system implemented at every stage of production, Womic Steel provides high-capacity mining buckets ranging from **3 cubic meters to 60 cubic meters** of heaped capacity. These buckets are suitable for large electric rope shovels, hydraulic mining excavators, and heavy earthmoving equipment from all major brands such as Caterpillar, Komatsu, Hitachi, Liebherr, P&H, and Bucyrus. Beyond standard products, Womic Steel offers fully customized mining bucket solutions based on the customer's specific equipment model, material density, working cycle conditions, and long-term operational requirements. Our goal is always to help mining operators achieve maximum productivity, extended service life between overhauls, and significantly reduced maintenance costs per ton of material moved.

Mining Bucket Capacity Range

Womic Steel manufactures mining buckets across a wide and continuous spectrum of capacities, carefully segmented to match different machine sizes, mining methods, and material characteristics. Rather than offering a one-size-fits-all product, we provide four distinct capacity tiers, each designed with specific structural reinforcements, plate thicknesses, and wear protection strategies. The following table summarizes our standard capacity ranges and their typical applications.

Capacity Range	Common Equipment Size	Typical Applications	Key Design Focus
3m³ — 8m³	30–80 ton excavators	Quarries, coal mines, construction earthmoving	Lightweight design, high cycle speed
8m³ — 20m³	100–300 ton excavators	Copper, iron ore, overburden removal	Balanced strength and wear life
20m³ — 40m³	400–800 ton shovels	High-production hard rock mines	Extreme impact resistance
40m³ — 60m³	1000+ ton ultra-class shovels	Oil sands, large iron/copper open pits	Maximum structural integrity

Small Capacity Mining Buckets (3m³ — 8m³)

Small capacity buckets are specifically designed for medium-sized mining excavators and wheel loaders operating in quarries, aggregate production sites, construction earthmoving projects, coal mining operations, and limestone or sand loading facilities. Because these machines typically perform high-frequency loading cycles with relatively short dig times, the bucket design prioritizes lightweight construction and rapid penetration into the material bank. Womic Steel achieves this by using thinner but still highly durable wear-resistant plates, optimized curvature for reduced digging resistance, and a carefully balanced center of gravity that improves machine stability during lifting and swinging. Compared to heavier-duty mining buckets, these small capacity units allow operators to achieve up to 15% more cycles per hour while consuming less fuel. At the same time, we do not compromise on durability — critical wear areas such as the bottom plate, side cutters, and tooth adapters are still protected with replaceable wear liners. For customers operating in softer materials like coal or gypsum, we can further reduce bucket weight by up to 12% without reducing structural life, making these buckets an excellent choice for high-volume, low-to-medium abrasion environments.

Medium Capacity Mining Buckets (8m³ — 20m³)

Medium capacity mining buckets represent the most widely used segment in global open-pit mining, and they are commonly found on 100 to 300-ton hydraulic excavators as well as smaller electric rope shovels. These buckets are applied in copper mines, iron ore operations, coal mining, large quarries, and overburden removal projects where the balance between loading capacity and operational efficiency is critical. Unlike small buckets, medium capacity units must handle significantly higher impact forces caused by larger individual rock sizes and more aggressive digging motions. To address this, Womic Steel engineers these buckets with reinforced side walls made from thicker wear-resistant steel, heavy-duty bottom plates that resist puncture and abrasion, and internal structural ribs that transfer digging forces away from the main weld seams. The adapter systems used in this size range are also upgraded to larger castings with through-hardened tooth pockets, reducing the frequency of tooth loss and adapter cracking. Many customers operating in iron ore or copper mines report that our medium capacity buckets deliver between 4,000 and 6,000 hours of service before requiring major weld repair or component replacement. Additionally, we offer optional bolt-on wear liners for the floor and side walls, which can be replaced in the field during scheduled maintenance, effectively doubling the total lifespan of the bucket shell.

Large Capacity Mining Buckets (20m³ — 40m³)

Large capacity mining buckets are designed exclusively for large electric rope shovels and the largest class of hydraulic mining excavators, typically operating in high-production mining operations such as iron ore, copper, oil sands, and bulk material handling terminals. These buckets operate under some of the most punishing conditions imaginable, including direct impact from boulders weighing several tons, continuous abrasion from crushed ore, and cyclic loads that exceed 200% of the bucket's static weight. To survive in this environment, Womic Steel constructs these buckets using ultra-thick wear-resistant plates — often 50mm to 80mm thick in the floor and lower side wall areas — combined with a heavy-duty reinforced structural frame that includes full-length bottom stiffeners, box-section side wall reinforcements, and a cast steel lip plate that is significantly more impact-resistant than fabricated lips. The tooth and adapter systems used on large capacity buckets are the largest available in the industry, with adapter cross-sections exceeding 200mm in height and tooth tips weighing up to 80kg each. These large components are secured using wedge-and-pin retention systems that resist loosening even under extreme vibration. When mining operators switch from a standard bucket to a properly optimized Womic large capacity bucket, they typically see a 15% to 25% improvement in loading efficiency, a measurable reduction in fuel consumption per ton, and a decrease in unplanned downtime caused by structural cracks or worn-out wear components.

Ultra Large Mining Buckets (40m³ — 60m³)

Ultra large mining buckets, ranging from 40 to 60 cubic meters of heaped capacity, represent the absolute top end of the mining equipment industry. These buckets are only used on super-large electric rope shovels and the very largest hydraulic mining excavators, typically in high-volume iron ore mines, massive copper operations, Canadian oil sands projects, and other large open-pit mines where production targets exceed 100,000 tons per day. The engineering challenge at this scale is immense — a 50m³ bucket filled with dense iron ore can weigh over 150 tons, and the dynamic forces generated during digging, lifting, and dumping place extraordinary stress on every weld, plate, and casting. Womic Steel addresses this challenge through advanced structural reinforcement strategies that go far beyond simply using thicker steel plates. We incorporate multiple layers of wear material in the floor area, including a high-strength backing plate, a mid-layer energy-absorbing plate, and a top wear layer made from Hardox 500 or equivalent. The side walls are supported by external ribs and internal diaphragms that eliminate flexing during penetration. The lip plate is typically manufactured as a single-piece high-alloy steel casting, which provides far superior crack resistance compared to fabricated lips. Customers operating ultra large buckets in oil sands, where the material is both abrasive and sticky, benefit from our optional heated liners and anti-stick coatings that maintain production rates even in sub-zero winter conditions. The service life of these buckets is measured in years rather than months, with many units achieving 8,000 to 12,000 hours of operation before requiring major refurbishment.

Material Selection for High Capacity Mining Buckets

The choice of steel material is arguably the most important single decision in mining bucket manufacturing, because it directly determines how long the bucket will last, how much impact it can absorb, and how frequently it will need maintenance. Womic Steel uses only premium wear-resistant steel materials sourced from certified mills, and we maintain a strict policy of full material traceability from the mill certificate to the finished product. The most commonly used wear-resistant grades in our buckets include NM400, NM450, NM500, Hardox 400, Hardox 450, Hardox 500, Bisalloy 400, and Bisalloy 500. For structural components that do not require extreme surface hardness but must provide toughness and weldability, we use structural steel materials such as Q355B, Q460C, S355J2, S460N, ASTM A572 Grade 50, and ASTM A514. The table below summarizes how we select materials based on specific mining conditions.

Material Condition	Recommended Wear Steel	Recommended Structural Steel	Expected Wear Life Advantage
Low impact, high abrasion (sand, coal, gypsum)	NM400 / Hardox 400	Q355B	Baseline
Medium impact, medium abrasion (copper ore, limestone)	NM450 / Hardox 450	Q460C / S355J2	+25–35%
High impact, high abrasion (iron ore, granite)	NM500 / Hardox 500	S460N / ASTM A572-50	+40–60%
Extreme impact, sub-zero temperatures (oil sands, frozen ore)	Bisalloy 500 / Hardox 500	ASTM A514	+70–100%

In many of our custom projects, we do not use a single material for the entire bucket. Instead, we apply a zone-specific material strategy, where the floor and lower side walls receive the highest hardness grades, the upper side walls and back plate receive medium hardness grades, and the structural frame uses high-toughness steels. This approach maximizes wear life where abrasion is most severe while maintaining overall structural ductility and weldability.

Manufacturing Process

Womic Steel follows a strictly controlled, multi-stage manufacturing process that has been refined over years of producing mining buckets for the world's most demanding operations. The process begins with raw material inspection, where every steel plate is verified for chemical composition, mechanical properties, and dimensional accuracy before any cutting takes place. Next, we perform CNC cutting using high-definition plasma or laser cutting tables, achieving tolerances of ±1mm even on plates up to 80mm thick. After cutting, plates go through forming and rolling on our large-capacity press brakes and rolling machines, which can cold-form plates up to 60mm thick without requiring preheating. Machining and beveling operations follow, preparing all weld edges with precisely controlled bevel angles to ensure full penetration during welding. Before any welding begins, we conduct a pre-assembly of all major components on our fabrication floor, verifying fit-up and making any necessary adjustments. The heavy-duty welding stage is performed by certified welders following approved Welding Procedure Specifications, with strict control over preheating temperatures (typically 150°C to 300°C depending on plate thickness and material grade) and interpass temperatures. After welding, every major bucket undergoes post-weld heat treatment to relieve residual stresses that could otherwise lead to stress corrosion cracking or premature fatigue failure. Wear plates are then installed using a combination of counterbore bolts and plug welds, ensuring they remain securely attached even under heavy impact. Finally, the bucket moves to final assembly where tooth adapters, shroud retainers, and other hardware are installed, followed by a comprehensive dimensional inspection.

Welding Technology and Quality Control

Welding is the single most critical operation in mining bucket fabrication, because a weld failure in the field can lead to catastrophic bucket breakup, equipment damage, and serious safety incidents. Womic Steel adopts a combination of advanced welding technologies tailored to different joint types and material thicknesses. Submerged arc welding is used for long, straight seams on the floor and side walls, providing deep penetration and high deposition rates with excellent consistency. CO2 gas shielded welding (GMAW) is used for shorter seams and out-of-position welds, offering good control and minimal spatter. Manual arc welding (SMAW) is reserved for tack welding, repair welding, and areas with restricted access where automated processes cannot reach. All critical welds are performed using multi-layer welding techniques, where each layer is cleaned and inspected before the next layer is applied, ensuring complete fusion and eliminating slag entrapment. Our welding quality control system is built around three core documents: Welding Procedure Specifications (WPS) that define every parameter for each joint type, Procedure Qualification Records (PQR) that prove the WPS produces sound welds, and certified welder qualifications that ensure only trained personnel perform production welding. During welding, we continuously monitor preheating temperatures, interpass temperatures, and amperage/voltage settings, recording all data for traceability. After welding, all main structural welds receive stress relief heat treatment in our programmable furnace, which slowly heats the bucket to a specified temperature (typically 550°C to 650°C depending on material), holds it for a calculated time based on thickness, and then carefully controls the cooling rate to prevent new stresses from forming.

Inspection and Testing

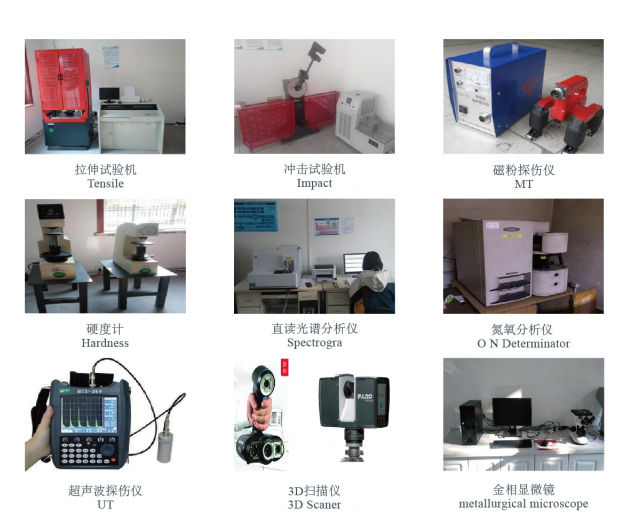

No mining bucket leaves our facility without passing a comprehensive series of inspections and tests, because we understand that a failure in the field costs our customers far more than the price of the bucket itself. Raw material testing is performed on every incoming steel plate using a portable spectrometer to verify chemical composition, a tensile testing machine to confirm yield and ultimate strength, and a portable hardness tester to check surface hardness against the mill certificate. After fabrication, we perform non-destructive testing on all critical welds, with ultrasonic testing (UT) used to detect internal flaws such as lack of fusion or slag inclusions, magnetic particle testing (MT) used to find surface and near-surface cracks in ferritic steels, and penetrant testing (PT) used for non-magnetic materials or areas where MT is impractical. For high-risk projects or customer-specified requirements, we also offer radiographic testing (RT), which provides a permanent film record of weld quality. Dimensional inspection is performed using laser trackers and 3D scanning technology, with the actual bucket geometry compared directly to the CAD model. Capacity verification is conducted by 3D scanning the internal volume of the bucket and calculating the heaped capacity according to SAE or ISO standards, with our guarantee that actual capacity will be within 98% of the nominal design capacity. A summary of our standard inspection criteria is provided below.

Inspection Type	Method	Acceptance Criterion
Chemical composition	Optical emission spectrometer	Within ±5% of mill certificate
Hardness	Portable hardness tester (Leeb or UCI)	Within ±10% of specified range
Internal weld defects	Ultrasonic testing (UT)	No flaw exceeding 2mm equivalent
Surface cracks	Magnetic particle (MT) or penetrant (PT)	Zero cracks or linear indications
Dimensional accuracy	Laser tracker / 3D scanner	±3mm on critical mounting dimensions
Bucket capacity	3D volume scan	≥98% of nominal heaped capacity

Production Capacity and Delivery

Womic Steel operates a heavy fabrication workshop equipped with overhead cranes rated up to 100 tons, automatic welding manipulators, CNC plate processing machines, and a large heat treatment furnace capable of handling buckets up to 80 tons in weight. Our standard production capacity covers bucket sizes from 3m³ to 60m³ and bucket weights from 3 tons to 80 tons, with the ability to run multiple projects simultaneously due to our modular shop layout and skilled multi-crew operations. For standard bucket designs where we have existing drawings and tooling, typical delivery time is 10 to 12 weeks from order confirmation. For fully customized buckets requiring new engineering design, FEA analysis, and unique pattern work for castings, delivery time extends to 6 to 10 weeks. We also maintain a rapid response service for emergency replacement buckets, where we can deliver a finished product in as few as 7 to 15 days by prioritizing the project in our production schedule and using expedited material sourcing. Our annual production capacity exceeds 200 large mining buckets, and we have successfully exported to more than 20 countries including Australia, Russia, South Africa, Chile, Indonesia, Canada, the United States, Mongolia, and Kazakhstan.

Application Industries and Customer Solutions

Womic Steel mining buckets are deployed across a wide range of industries, each with its own unique combination of material properties, operating environments, and productivity targets. In copper mining, where ore hardness varies significantly and abrasion is moderate to high, our buckets focus on wear life and tooth retention, with many customers achieving 5,000 to 7,000 hours between major overhauls. In iron ore mining, where material density is extremely high (often exceeding 2.8 t/m³) and impact loads are severe, we use NM500 or Hardox 500 floors with double-layer bottom construction and heavy-duty side wall reinforcements. Coal mining presents a different challenge — the material is relatively soft and light, but the required digging cycles are extremely high, so we prioritize lightweight designs with fast dump angles and reduced empty bucket weight. Gold mining often involves abrasive waste rock and occasional large boulders, requiring a balance between wear resistance and impact toughness. Quarry operations typically involve a mix of blasted rock sizes and unpredictable feed material, so our buckets for this sector feature adjustable tooth angles and reinforced lip plates. Oil sands mining is one of the most demanding applications in the world, combining high abrasion from silica sand, extreme impact from frozen lumps, and severe cold temperatures that can drop below -40°C. For these projects, we supply ultra large buckets with heated liners, anti-stick coatings, and specially formulated low-temperature toughness steels. The cement industry and heavy construction sectors also rely on our buckets for handling limestone, clay, shale, and other raw materials.

Womic Steel Manufacturing Advantages

Womic Steel has established its reputation as a professional mining equipment manufacturer not by making the cheapest products, but by making the most reliable and longest-lasting buckets in the industry. Our large capacity fabrication capability allows us to handle projects that smaller shops cannot, from 60m³ ultra-class shovel buckets to complex custom designs with unique geometry. Our advanced welding technology and certified welding procedures ensure that every joint meets or exceeds international standards such as AWS D1.1 and EN 1090. Our exclusive use of premium wear-resistant materials from mills like Hardox, Bisalloy, and Chinese national brands gives our customers confidence that they are receiving genuine, certified steel, not unknown substitutes. Our strict quality control system, backed by full traceability and 100% non-destructive testing of critical welds, eliminates the guesswork and risk that often accompanies mining attachments from uncertified suppliers. We offer fast delivery times that are clearly stated in our proposals and reliably achieved, unlike many competitors who promise short lead times but consistently deliver late. Our OEM customization capability means we can reverse-engineer an existing bucket, improve its weak points, and deliver a better product than the original. And with global export experience covering the world's toughest mining regions, we understand the real-world demands of mines in Australia, Africa, Russia, and the Americas. The end result is a combination of competitive pricing, exceptional service life, and low total cost of ownership that has made Womic Steel a trusted partner for mining companies and equipment dealers worldwide.
