Heavy-Duty Mining Bucket Manufacturer – Womic Steel
Womic Steel is a professional manufacturer of heavy-duty electric mining shovel buckets designed for large-scale mining operations and demanding working environments. With extensive experience in heavy steel fabrication, wear-resistant steel processing, and mining equipment manufacturing, Womic Steel provides high-performance shovel bucket solutions for global mining customers.
Our electric mining shovel buckets are engineered to operate in extreme working conditions, including high-impact rock loading, continuous abrasive wear, and heavy-duty cyclic operations. By combining high-strength structural steel with premium wear-resistant materials and advanced welding technologies, Womic Steel shovel buckets deliver exceptional durability, improved productivity, and extended service life.
Womic Steel also provides full customization based on mining conditions, equipment models, material characteristics, and operational requirements. Our engineering team collaborates closely with customers to design optimized bucket structures, ensuring improved fill factor, reduced maintenance costs, and increased operational efficiency.
Product Overview

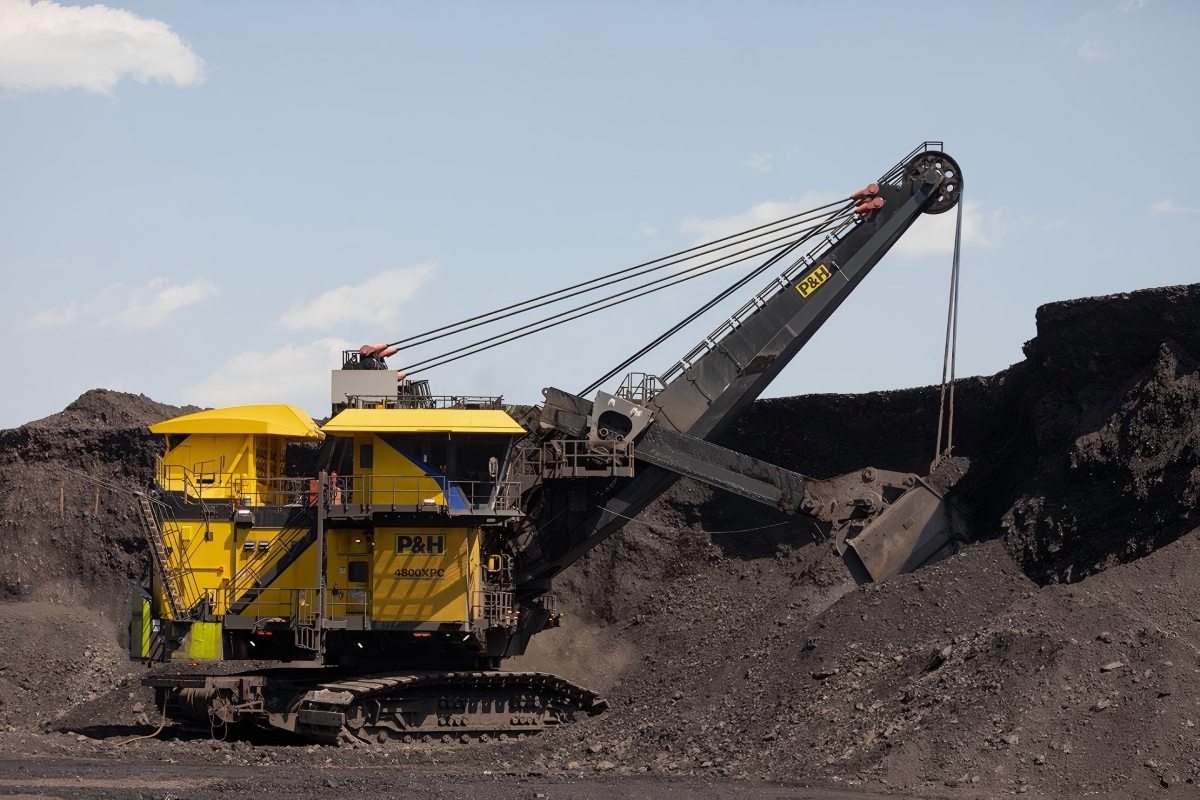

Electric mining shovel buckets are key working components installed on large electric rope shovels and hydraulic mining excavators used in open-pit mining operations. These buckets must withstand continuous heavy loading, high-impact forces, and abrasive materials such as iron ore, copper ore, coal, limestone, and overburden materials.
Womic Steel electric mining shovel buckets are designed to achieve maximum loading capacity and superior digging performance. Through optimized geometry and reinforced structural design, the bucket can improve penetration performance, increase fill factor, and reduce cycle time during mining operations.
These buckets are widely used in the following industries:
- 1.Open-pit copper mining projects
- 2.Iron ore mining operations
- 3.Coal mining and bulk material handling
- 4.Quarry and aggregate operations
- 5.Oil sands mining
- 6.Heavy construction and earthmoving projects
- 7.Cement and metallurgical industries
Womic Steel shovel buckets are designed to perform reliably in harsh environments, ensuring long-term operational stability and reduced maintenance downtime.

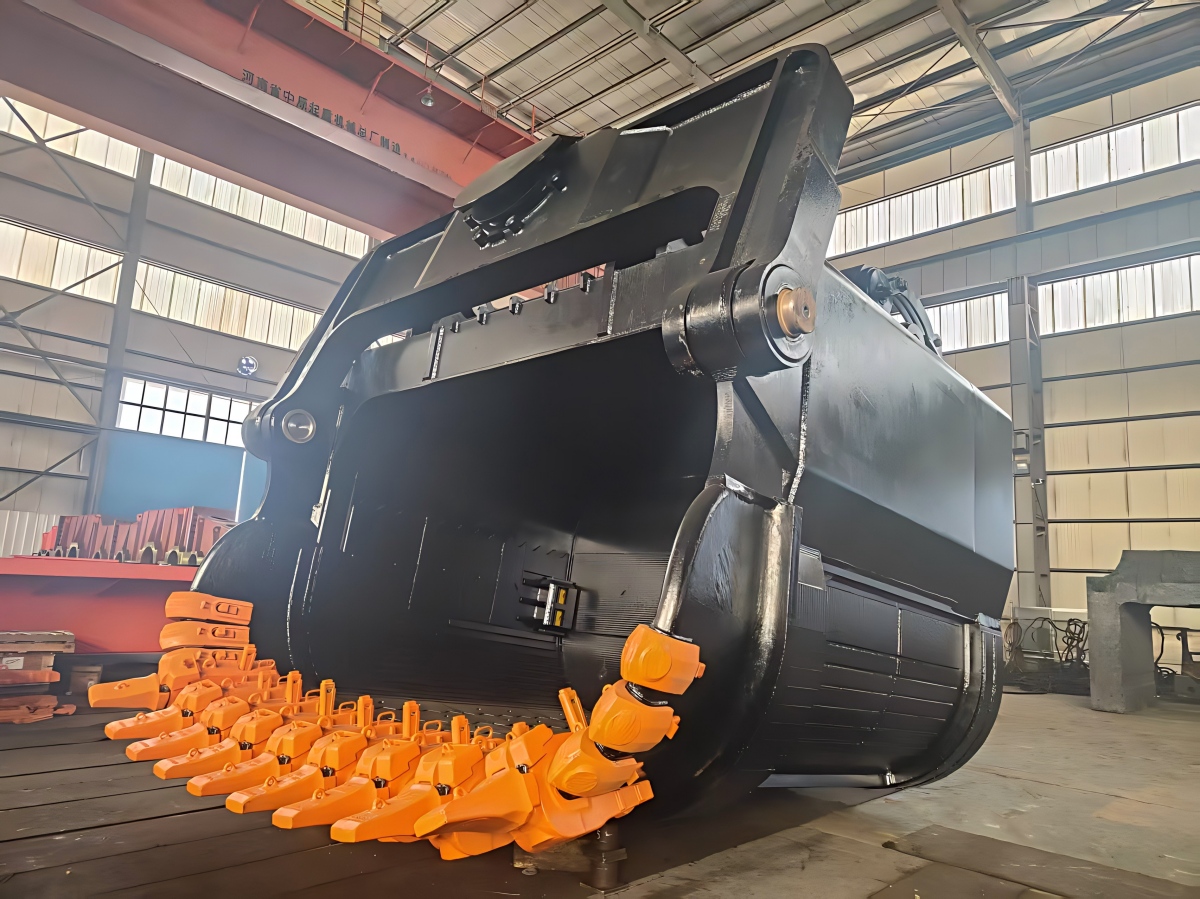

Bucket Structural Design
Womic Steel electric mining shovel buckets feature reinforced heavy-duty structural designs specifically engineered to handle extreme working loads and harsh mining environments. Each structural component is carefully designed to balance strength, weight, and wear resistance.
Bucket Lip Plate
The bucket lip is one of the most critical components subjected to heavy impact and abrasion. Womic Steel uses ultra-high wear-resistant steel plates for the bucket lip and incorporates reinforced structural ribs to improve strength and extend service life. The lip design is optimized to enhance penetration performance and reduce digging resistance.
Bottom Plate
The bottom plate is manufactured using thick wear-resistant steel to handle continuous material loading and abrasive conditions. Additional wear liners are installed in high-wear zones to further extend service life and reduce maintenance frequency.
Side Wall Plates
Side plates are reinforced with heavy-duty structural steel and wear-resistant liners to withstand lateral impact and abrasion. The reinforced side walls provide improved structural integrity and longer operational life.
Back Wall Structure
The back wall is designed to improve material retention and maximize bucket fill factor. Reinforced structural ribs are added to reduce stress concentration and improve durability.
Wear Plates and Protection System
Wear-resistant plates are strategically installed in high-abrasion areas, including bottom plates, side walls, and corner areas. This protection system significantly increases bucket lifespan and reduces operational costs.
Adapter System and Teeth
High-strength adapter systems allow easy replacement of bucket teeth. The replaceable tooth design improves digging efficiency and reduces maintenance downtime.
Material Selection
Womic Steel selects premium-grade materials to ensure high performance and long service life.
Wear Resistant Steel Materials
1.NM400
2.NM450
3.NM500
4.Hardox 400
5.Hardox 450
6.Hardox 500
7.Bisalloy 400
8.Bisalloy 500
These wear-resistant steels offer excellent abrasion resistance, high impact toughness, and superior durability. The use of premium wear-resistant steel significantly extends bucket service life in abrasive mining environments.
Structural Steel Materials
1.Q355B
2.Q460C
3.S355J2
4.S460N
5.ASTM A572 Grade 50
6.ASTM A514
These structural materials provide high strength, good weldability, and fatigue resistance. The structural steel is selected based on bucket size, operating conditions, and customer requirements.
Material selection is optimized according to:
1.Mining material hardness
2.Operating temperature
3.Impact load requirements
4.Equipment capacity
Customer specifications
Manufacturing Process
Womic Steel adopts strict manufacturing procedures to ensure high-quality production.
Raw Material Inspection
All incoming steel plates undergo chemical composition verification, mechanical property testing, and surface inspection. Only qualified materials are released for production.
CNC Cutting
Advanced CNC plasma cutting machines and flame cutting equipment ensure precise cutting and dimensional accuracy.
Plate Forming and Rolling
Heavy-duty plate rolling machines are used to shape bucket components according to design specifications.
Machining and Edge Preparation
Beveling and machining operations prepare components for welding, ensuring high-quality weld joints.
Pre-Assembly
Components are assembled to verify dimensional accuracy and alignment before welding.
Heavy-Duty Welding
Certified welders perform multi-layer welding using qualified welding procedures.
Preheating and Welding Temperature Control
Preheating is applied before welding to prevent cracking. Interpass temperature control ensures welding quality.
Post Weld Heat Treatment
Stress relief heat treatment improves structural stability and reduces residual stress.
Wear Plate Installation
Wear-resistant plates are installed in high-abrasion areas to extend service life.
Surface Finishing
Grinding and finishing operations ensure smooth surfaces and high-quality appearance.
Final Assembly
Complete bucket assembly and inspection before shipment.
Welding Technology
Womic Steel adopts advanced welding technology to ensure structural strength and durability.
Welding Methods
1.CO2 gas shielded welding
2.Submerged arc welding
3.Manual arc welding
4.Multi-layer welding technology
Welding Quality Control
1.Welding Procedure Specification (WPS)
2.Procedure Qualification Record (PQR)
3.Certified welders
4.Preheating before welding
5.Controlled welding temperature
6.Post weld heat treatment
These procedures ensure high-quality welds and structural reliability.
Inspection and Testing
Womic Steel implements comprehensive inspection and testing procedures.
Raw Material Testing
1Chemical composition testing
2.Mechanical property testing
3.Hardness testing
4.Material traceability
Non-Destructive Testing
1.Ultrasonic Testing (UT)
2.Magnetic Particle Testing (MT)
3.Dye Penetrant Testing (PT)
4.Radiographic Testing (RT)
Dimensional Inspection
1.Structural dimension inspection
2.Assembly verification
3.Capacity measurement
Welding Inspection
1.Weld visual inspection
2.Weld defect detection
3.Weld hardness testing
Mechanical Testing
1.Tensile testing
2.Impact testing
3.Hardness testing
All testing ensures product reliability and durability.
Engineering and Design Capability
Womic Steel engineering team provides comprehensive design services:
1.Bucket structural design
2.Wear protection design
3.Reinforcement layout design
4.Capacity optimization
5.Weight reduction design
6.Finite element analysis
7.2D and 3D drawing support
Engineering design improves bucket performance and service life.
Production Capacity
Womic Steel manufacturing capability includes:
1.Bucket capacity: 3m³ to 60m³
2.Bucket weight: 3 tons to 80 tons
3.Heavy fabrication workshop
4.Large CNC cutting machines
5.Automatic welding equipment
6.Heat treatment furnace
7.Heavy lifting cranes
These facilities enable large-scale production.
Certification and Documentation
Womic Steel provides complete certification and documentation:
1.ISO 9001 Quality Management System
2.ISO 14001 Environmental Management
3.ISO 45001 Occupational Health & Safety
4.Material Mill Test Certificates EN 10204 3.1 / 3.2
5.NDT inspection reports
6.Welding qualification certificates
7.Dimensional inspection reports
8.Final inspection reports
Complete documentation ensures full traceability.
Application Industries
Womic Steel electric mining shovel buckets are widely used in:
1.Copper mining
2.Iron ore mining
3.Coal mining
4.Gold mining
5.Quarry operations
6.Cement industry
7.Oil sand mining
8.Infrastructure projects
Womic Steel Manufacturing Advantages
1.Professional heavy mining equipment manufacturer
2.Strong engineering design capability
3.Premium wear-resistant materials
4.Advanced fabrication equipment
5.Strict quality control system
6.Fast delivery capability
7.Custom engineering solutions
8.Global export experience
9.Competitive pricing
10.Long service life products
Womic Steel provides reliable heavy mining equipment solutions worldwide.
Womic Steel — Professional Heavy Mining Equipment Manufacturer
Website: www.womicsteel.com
Email: sales@womicsteel.com
Tel/WhatsApp/WeChat: Victor +86-15575100681 or Jack +86-18390957568
