ASTM A312 TP304/304L Welded Stainless Steel Pipe

Why Partner with Womic Steel for Stainless Steel Welded Pipe?

Complete Range of Sizes: ERW from 1/4″ to 24″, EFW/LSAW from 8″ to 60″, covering virtually all industrial stainless pipe requirements.

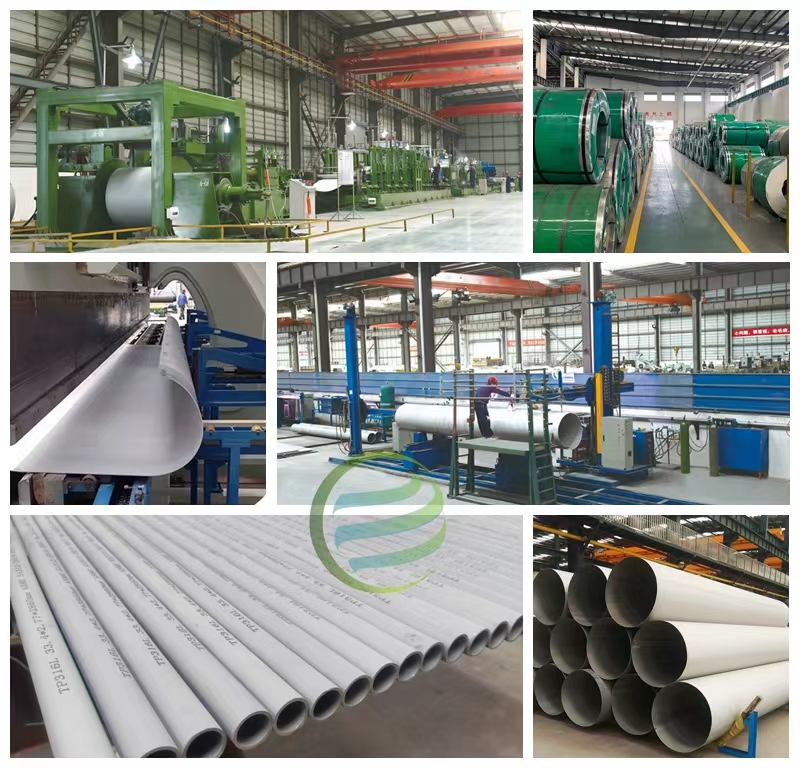

Multiple Welding Processes: ERW (high-frequency), EFW (TIG+SAW), and LSAW – we select the optimal process for your diameter, wall thickness, and quality requirements.

Full Heat Treatment: Solution annealing for all stainless welded pipes in car-bottom or continuous furnaces, ensuring weld corrosion resistance matches base metal.

Surface Finish Options: Annealed & pickled, bright annealed (BA), polished (180# to 600#), mirror finish (800#), and electropolished for pharmaceutical applications.

Sanitary & Pharmaceutical Grades: FDA and 3-A compliant pipes with ultra-smooth ID finishes (Ra ≤ 0.4μm for pharma).

Value-Added Services: Beveling, threading, custom lengths, cutting, pickling, passivation, and electropolishing – all in-house.

Global Certification: ISO 9001:2015, PED 2014/68/EU (CE), EN 10204 Type 3.2 with TÜV/BV verification, NORSOK M-650 upon request.

Competitive Logistics: Strategic partnerships with global freight forwarders ensure cost-effective shipping to any destination.

Comprehensive Documentation: Full Mill Test Certificates, PMI reports, NDT reports, and full traceability from heat number to finished pipe.

Choose Womic Steel Group as your reliable partner for high-quality ASTM A312 TP304/304L welded stainless steel pipes for chemical, food, pharmaceutical, and marine projects worldwide.

Frequently Asked Questions (FAQ) – ASTM A312 TP304/304L Welded Stainless Steel Pipe

Q: What is the difference between TP304 and TP304L?
A: TP304 has a maximum carbon content of 0.08% and higher strength (205 MPa yield). TP304L has a maximum carbon content of 0.03% and slightly lower strength (170 MPa yield) but offers superior resistance to intergranular corrosion after welding. For applications involving welding where post-weld heat treatment is not possible, TP304L is recommended to avoid carbide precipitation and sensitization.

Q: Can 304/304L stainless steel be used for seawater service?
A: 304/304L has limited resistance to chloride pitting and crevice corrosion in seawater. For seawater applications, duplex grades (S31803/S32205) or super austenitic grades (904L) are recommended. 304 may be acceptable for splash zone or low chloride environments, but 316L with molybdenum provides better pitting resistance. For full seawater immersion, we recommend duplex stainless steel.

Q: What is the difference between ERW and EFW for stainless steel pipe?
A: ERW (Electric Resistance Welding) uses high-frequency current and mechanical pressure without filler metal. It is fast and cost-effective for small to medium diameters (up to 24″). EFW (Electric Fusion Welding) uses TIG or plasma arc with filler metal, producing a more robust weld suitable for larger diameters and heavier walls (above 8″). EFW pipes also have tighter radiographic examination requirements (100% RT for Class 1,3,5 per ASTM A358).

Q: What is solution annealing and why is it important?
A: Solution annealing is a heat treatment process where stainless steel is heated to 1010-1120°C and then rapidly cooled (water quenched). This dissolves chromium carbides that may have formed during welding, restores corrosion resistance, and eliminates sensitization. All Womic stainless welded pipes are solution annealed after welding to ensure weld metal corrosion resistance matches the base material.

Q: What finish do you recommend for sanitary/pharmaceutical applications?
A: For pharmaceutical and biotech applications (WFI, PW, clean steam), we recommend electropolished internal surface finish with Ra ≤ 0.38μm and external mechanical polish (#180 to #320). For food and dairy (milk, beer, juice), 180# to 320# polished finish (2B-like) is typical. For general industrial, annealed and pickled or bright annealed finish is sufficient.

Q: Do you provide third-party inspection for stainless pipes?
A: Yes. We facilitate inspections by SGS, BV, TÜV, DNV, ABS, LR, or any client-nominated representative during production and prior to shipment. EN 10204 Type 3.2 inspection certificates are routinely supplied upon request with third-party validation.

Q: What non-destructive testing (NDT) is provided for stainless welded pipes?
A: For ERW pipes: 100% Eddy Current Test (mandatory per ASTM A312). For EFW/LSAW pipes: 100% Ultrasonic Test (UT) or Phased Array UT (PAUT) plus spot RT as required. For ASTM A358 Class 1,3,5 pipes: 100% Radiographic Testing. MPI and dye penetrant (PT) are available upon request.

Q: What is the typical lead time for ASTM A312 TP304/304L welded stainless steel pipe?
A: Standard lead times: 21-30 days for ERW pipes (small to medium diameters), 30-45 days for EFW/LSAW pipes (large diameters). Rush orders (14-21 days) may be available for smaller quantities. For polished finishes (sanitary/pharma grade), add 7-10 days. For third-party inspection, add 7-14 days.

Q: What documentation is provided with each shipment?
A: Mill Test Certificate (EN 10204 Type 3.1), Hydrostatic Test Report, Dimensional Inspection Report, Eddy Current/UT Reports, PMI Report, Packing List, Commercial Invoice, and Certificate of Origin. EN 10204 Type 3.2 certificates available upon request with third-party witness.

Q: Can you supply small diameter stainless welded tubing (1/4″ to 4″) for instrumentation?
A: Yes. Our ERW line produces high-quality small diameter tubing from 6.35mm (1/4″) up to 114.3mm (4″). We can supply in both annealed and pickled condition or bright annealed (BA) finish. These are widely used for instrument air lines, chemical injection lines, and hydraulic tubing.

Project Reference – Midwestern USA Chemical Plant Expansion

Country: United States (Indiana, Ohio River Valley industrial corridor)
Standard & Grade: ASTM A312 TP304L (dual certified 304/304L)
Dimensions & Quantity:

OD 219.1mm (8″ NPS) × Schedule 10S (3.76mm WT) – 6,000 meters (approx. 120 tons) – EFW process

OD 273.0mm (10″ NPS) × Schedule 40S (6.35mm WT) – 4,500 meters (approx. 160 tons) – EFW process

OD 355.6mm (14″ NPS) × Schedule 40S (7.92mm WT) – 3,000 meters (approx. 180 tons) – LSAW process

OD 50.8mm (2″ NPS) × Schedule 10S (2.77mm WT) – 12,000 meters (approx. 66 tons) – ERW (sanitary polished ID/OD)
Total: 25,500 meters (25.5 km), approx. 526 tons

Specifications: ASTM A312 TP304L solution annealed and pickled, beveled ends (30° bevel, 1.6mm root face). Hydrostatic testing at 1.5× design pressure per ASME B31.3. Eddy current testing (100%) for ERW pipes; 100% UT plus 20% RT for EFW/LSAW pipes. PMI (Positive Material Identification) on every pipe. Dual certification TP304/304L with carbon content verified ≤ 0.03%. Mill certificates per EN 10204 Type 3.2 with SGS witness. External surface finish: annealed and pickled (2B equivalent) for large pipes; 320# polished internal and external finish for 2″ sanitary lines. Additional Charpy impact testing at -20°C for the 14″ Sch 40S pipes (spec requested 27J min, achieved 80-120J).

Application: Major chemical plant expansion producing specialty polymers and organic intermediates. The 304L welded pipes serve multiple services including:

8″ and 10″ lines: Organic solvent transfer (ethyl acetate, IPA, acetone) operating at 80°C and 1.2 MPa

14″ line: Process water circulation (slightly acidic, pH 4-6) at 95°C

2″ lines: Sanitary service for purified process water used in final product washing (pharmaceutical-grade requirement)

Engineering Context: The plant operates 24/7 with strict corrosion control requirements. The process media contains trace chlorides (less than 50 ppm) and organic acids. 304L was selected over 316L for cost optimization, but the low carbon version (304L) was mandatory to avoid sensitization in welded areas since the piping operates at elevated temperatures (80-95°C). The 2″ sanitary lines required FDA compliance and ultra-smooth internal finish (Ra ≤ 0.4μm) to prevent bacterial growth and ensure cleanability.

Technical Challenges & Solutions:

Intergranular corrosion risk at elevated operating temperature (95°C) – The 14″ process water circulation line operates continuously at 95°C, which falls into the sensitization range for standard 304 (425-870°C). If standard 304 (0.08% C) were used, chromium carbide precipitation could occur over time, leading to intergranular corrosion and potential cracking. Womic supplied TP304L with verified maximum carbon 0.03%. We performed intergranular corrosion testing per ASTM A262 Practice E on weld samples from each production batch. Results: no intergranular attack observed, confirming full resistance to sensitization. The client's metallurgist reviewed and approved the test results.

Weld oxidation and heat tint removal – The 2″ sanitary lines required electropolished internal finish (Ra ≤ 0.4μm) for pharmaceutical-grade cleanability. Traditional pickling methods for weld seams leave residual heat tint that can harbor bacteria. Womic used a specialized electropolishing process for the entire pipe internal surface after welding and solution annealing. We also performed TIG welding with trailing gas shields (argon backing) on the internal weld to minimize oxidation. Final internal surface roughness measured 0.28-0.35μm Ra, well within the 0.4μm requirement. The client's quality team validated the surface finish using profilometry.

PMI verification for 304L (low carbon) against 304 – The mill accidentally produced 3 bundles (approx. 6 tons) of 2″ pipe as TP304 instead of TP304L. These were identified by PMI (carbon content 0.057% vs 304L limit 0.03%). Womic quarantined these bundles, issued a non-conformance report, and replaced them with correct 304L pipes within 14 days at no additional cost. The client commended Womic's quality control and transparency.

Large diameter 14″ pipe straightness for long flange runs – The 14″ line uses flanged connections every 6m over a 500m run. Straightness tolerance of 1.5mm per 3m was required to avoid flange misalignment. Womic used a 4-roll straightening machine on the LSAW pipes and performed laser alignment checks on every 12m joint. Final straightness achieved: 0.8-1.2mm per 3m. The flange assembly proceeded without any forced alignment issues.

Just-in-time delivery to an active chemical plant – The plant expansion was built within an operating chemical facility (reducing footprint, no plant shutdown allowed). Deliveries had to be sequenced to match the construction schedule, with zero storage space on site. Womic coordinated with the general contractor and issued 14 weekly deliveries over 3.5 months, each precisely matching the installation sequence. We used GPS-tracked flatbed trucks and provided real-time ETA updates to the site logistics coordinator. All 25.5 km of pipe arrived exactly on schedule, with no double-handling or storage required.

Third-party inspection (SGS) and documentation turnaround – The EPC contractor required SGS witness for all NDT and dimensional inspections. The project had a tight timeline (32 weeks from order to final delivery). Womic dedicated a full-time document controller to compile inspection reports for the 526 tons of pipe across 120 inspection lots. All EN 10204 Type 3.2 certificates were issued within 10 days of final inspection. SGS signed off each lot within 5 days. The documentation package was accepted without queries.

Result: The chemical plant expansion was completed and commissioned in Q1 2025, three weeks ahead of schedule. The entire 25.5 km of 304L piping passed pressure testing with zero leaks. The 2″ sanitary lines passed FDA inspection for pharmaceutical-grade water systems on the first attempt. The plant has been operating at full capacity for 10 months with no corrosion-related failures. Womic Steel has been added to the client's approved vendor list for stainless steel piping across five of their North American facilities.
